74177 (Z 150) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230007001 - 230999999) (2003) CRANKCASE ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

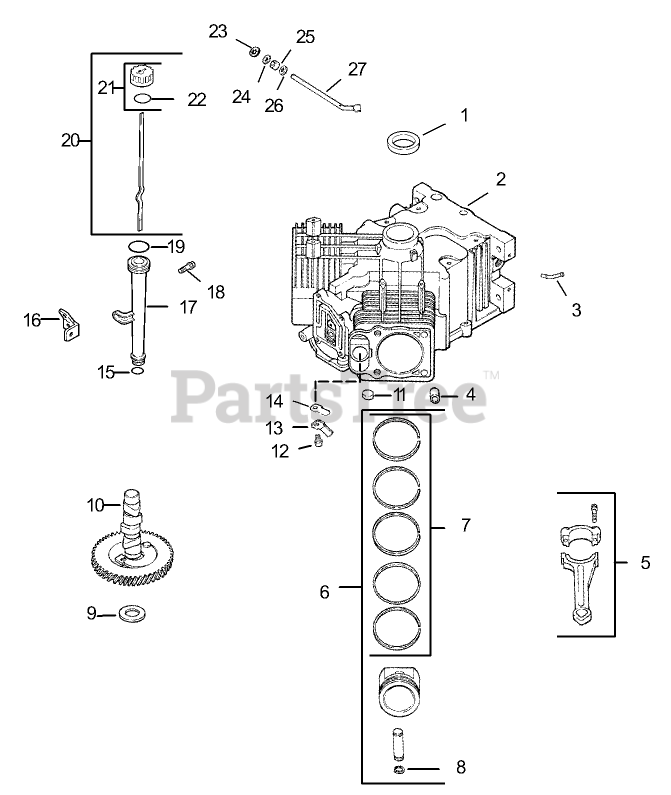

CRANKCASE ASSEMBLY KOHLER CV20S PRO 65593 Parts Diagram

  • Title

1

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

$9.49

$

In Stock, Qty 20+

0

2

Toro N/A

Short Block

$

$

Currently unavailable

3

Kohler 24 294 13-S

Fitting

$14.99

$

Usually ships in 2-5 days

0

4

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

$75.99

$

In Stock, Qty 19

0

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

$75.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 17-S

Piston w/Ring Set (Std.)(Includes 7,8)
(Superseded to 24 874 46-S)

$199.99

$

Usually ships in 2-5 days

0

Kohler 24 874 14-S

Piston ASM (.08)
(Superseded to 24 874 47-S)

$

$

Not available

Kohler 24 874 18-S

Piston ASM (.25)
(Superseded to 24 874 48-S)

$

$

Not available

Kohler 24 874 19-S

Piston ASM (.50)
(Superseded to 24 874 49-S)

$189.99

$

Usually ships in 2-5 days

0

7

Kohler 24 108 11-S

RING SET (STD AND .08)
(Superseded to 24 108 22-S)

$

$

Not available

Kohler 24 108 12-S

Ring Set (.25)
(Superseded to 24 108 24-S)

$

$

Not available

Kohler 24 108 13-S

Ring Set (.50)
(Superseded to 24 108 25-S)

$

$

Not available

8

Kohler 24 018 01-S

RETAINER-PIN, PISTON

$3.49

$

In Stock, Qty 14

0

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

$4.49

$

In Stock, only 2 left!

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

$2.49

$

In Stock, Qty 11

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

Camshaft (Includes 11,12)
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

11

Kohler 52 139 09-S

PLUG-CUP

$4.99

$

In Stock, Qty 7

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

$4.49

$

In Stock, only 2 left!

0

13

Kohler 24 018 04-S

RETAINER-REED, BREATHER

$2.49

$

In Stock, Qty 18

0

14

Kohler 24 402 05-S

Reed-Breather
(Superseded to 24 402 07-S)

$3.99

$

In Stock, Qty 10

0

15

Kohler 12 153 01-S

O-RING

$5.99

$

In Stock, Qty 20+

0

16

Kohler 24 126 19-S

BRACKET-TUBE, OIL FILL
(Superseded to 24 126 246-S)

$9.49

$

Usually ships in 2-5 days

0

17

Kohler 12 123 04-S

OIL FILL TUBE KIT
(Superseded to 25 123 07-S)

$18.99

$

In Stock, only 2 left!

0

18

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, Qty 12

0

19

Kohler 12 153 02-S

O-RING

$3.49

$

In Stock, Qty 20+

0

20

Kohler 24 038 04-S

Dipstick assembly (Includes 21, 22)

$21.99

$

In Stock, only 2 left!

0

21

Kohler 25 755 13-S

Kit, oil fill cap (Includes 22)

$15.99

$

In Stock, only 4 left!

0

22

Kohler 12 153 03-S

O-Ring
(Superseded to 25 153 02-S)

$3.49

$

In Stock, Qty 15

0

23

Kohler 24 018 09-S

RETAINER-RING

$2.49

$

In Stock, Qty 19

0

24

Kohler M-931010-S

WASHER-FLAT (9MM)

$2.49

$

In Stock, Qty 5

0

25

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

26

Kohler 24 468 15-S

WASHER-FLAT (11/32)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

27

Kohler 24 144 38-S

SHAFT-CROSS, GOVERNOR
(Superseded to 24 144 39-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$52.99

$

Usually ships in 2-5 days
