74178 (Z 150) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220000312) (2002) GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CV20S-PS65585 Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

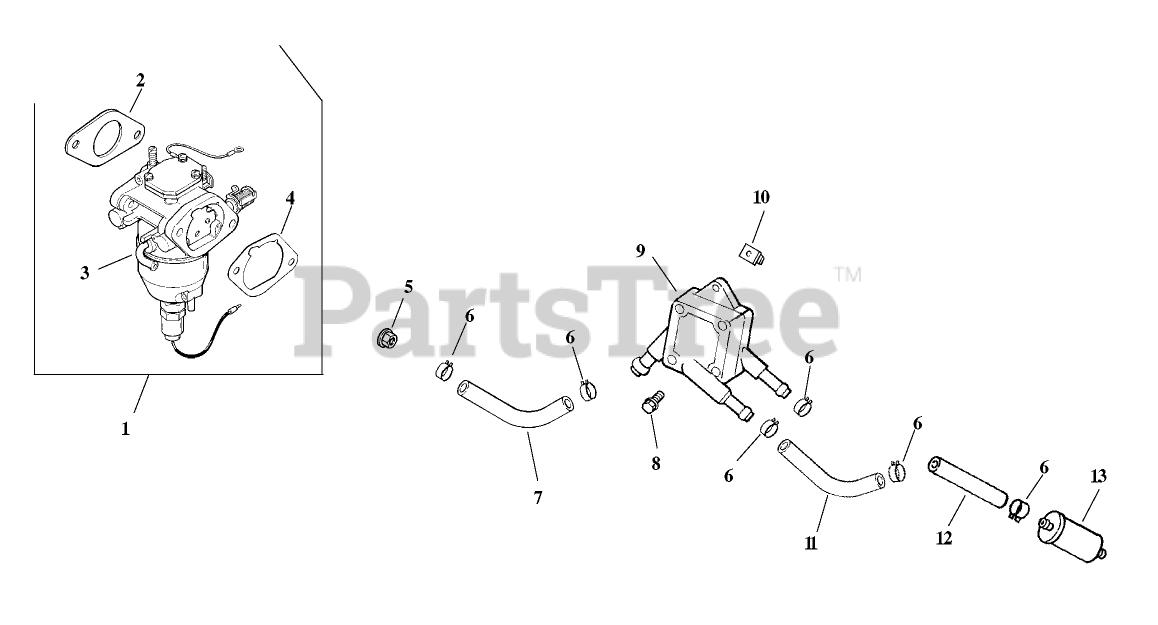

GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CV20S-PS65585 Parts Diagram

  • Title

1

Kohler 24 853 17-S

Kit, carburetor w/gaskets (Includes 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$490.99

$

Usually ships in 2-5 days

0

2

Kohler 24 041 15-S

Gasket-carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

In Stock, only 4 left!

0

3

2405317

Carburetor (Ref)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 24 041 14-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 20+

0

5

Kohler M-641060-S

NUT-FLANGE (M6X1.0)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 11

0

6

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, Qty 16

0

7

Kohler 24 353 33-S

Line, fuel
(Superseded to 52 353 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 20+

0

8

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 20+

0

10

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

11

Kohler 24 353 03-S

Line, fuel 10-1/2
(Superseded to 24 353 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

Usually ships in 2-5 days

0

12

Kohler 25 353 03-S

Line, fuel 12-1/3"

Note: Call PartsTree Customer Service for more information on Kohler Parts

$19.99

$

Usually ships in 2-5 days

0

13

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$12.99

$

In Stock, Qty 20+

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$96.99

$

In Stock, only 2 left!

0

Kohler 24 757 18-S

Overhaul w/gaskets Kit

Note: Not illustrated

$96.99

$

In Stock, only 2 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Not illustrated

$185.99

$

In Stock, only 1 left!

0

Kohler 24 757 19-S

Choke Service Repair Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$185.99

$

In Stock, only 1 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Not illustrated

$74.99

$

In Stock, only 2 left!

0

Kohler 24 757 20-S

Gasket Service Repair Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$74.99

$

In Stock, only 2 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Not illustrated

$262.99

$

In Stock, only 2 left!

0

Kohler 24 757 22-S

Solenoid Valve Service w/Gaskets Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$262.99

$

In Stock, only 2 left!

0
