74180 (Z 320) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) IGNITION/ELECTRICAL - KOHLER ENGINE CH20S 64582 Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

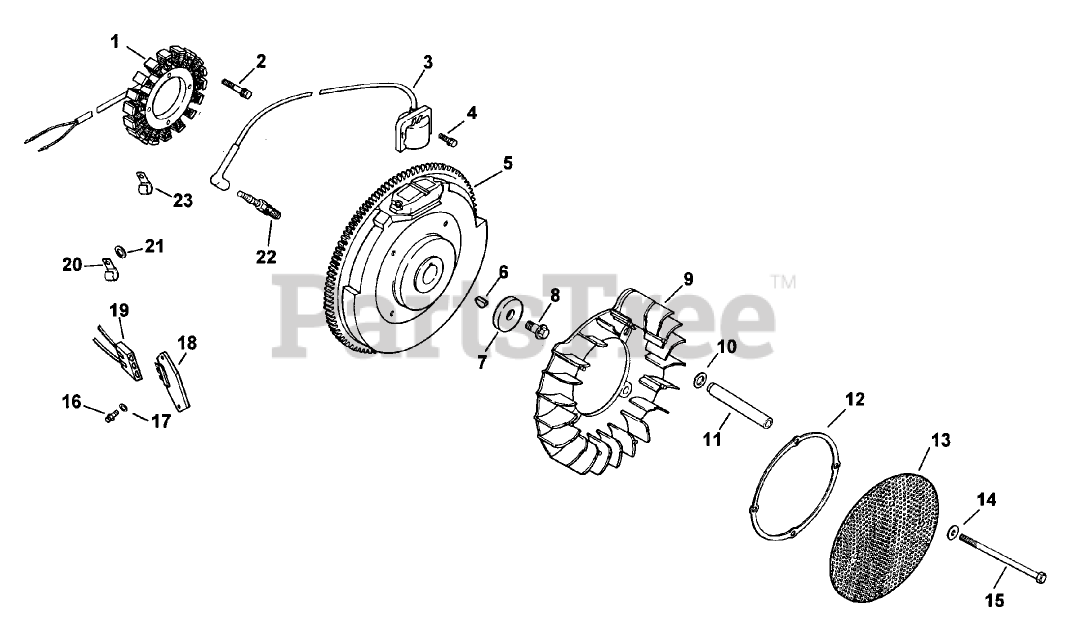

IGNITION/ELECTRICAL - KOHLER ENGINE CH20S 64582 Parts Diagram

  • Title

1

2408503

Stator-15 amp

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2

Kohler M-0548025

Screw
(Superseded to M-548025)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

3

Kohler 24 584 01

Module-Ignition
(Superseded to 24 584 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler M-0545020

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

2402501

Flywheel

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler X-42-15

Key
(Superseded to X-42-15-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 4 left!

0

7

Kohler 12 468 03

Washer
(Superseded to 12 468 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

8

Kohler 12 086 14

Screw
(Superseded to 25 086 361-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

Usually ships in 2-5 days

0

9

2415703

Fan

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

2446811

Washer, sping

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler 24 112 14

Spacer
(Superseded to 24 112 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$18.99

$

In Stock, Qty 12

0

12

2414106

Ring-Support

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

2416225

Screen-Grass

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler X-25-53

Washer
(Superseded to X-25-53-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 13

0

15

Kohler M-0603100

Screw-Hex
(Superseded to M-603100-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 15

0

16

Kohler 24 086 18

Screw
(Superseded to 24 086 18-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

17

Kohler X-25-92

Washer
(Superseded to X-25-92-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 2 left!

0

18

Kohler 25 403 03

Rectifier-Regulator
(Superseded to 25 403 03-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$105.99

$

In Stock, Qty 6

0

19

Kohler 236602

Connector
(Superseded to 236602-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

In Stock, Qty 11

0

20

Kohler 235173

Clip
(Superseded to 235173-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

21

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

22

Kohler 12 132 02

Plug-Spark
(Superseded to 12 132 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 20+

0

23

Kohler 48 154 02

Clip
(Superseded to 48 154 02-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

2551828

Lead-Black

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

2417640

Harness-Wire

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 126 71

Bracket-Wire, Stator
(Superseded to 24 126 71-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$15.99

$

Usually ships in 2-5 days

0

2508643

Screw-Set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler X-25-63

Washer
(Superseded to X-25-63-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0
