74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) FUEL SYSTEM Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

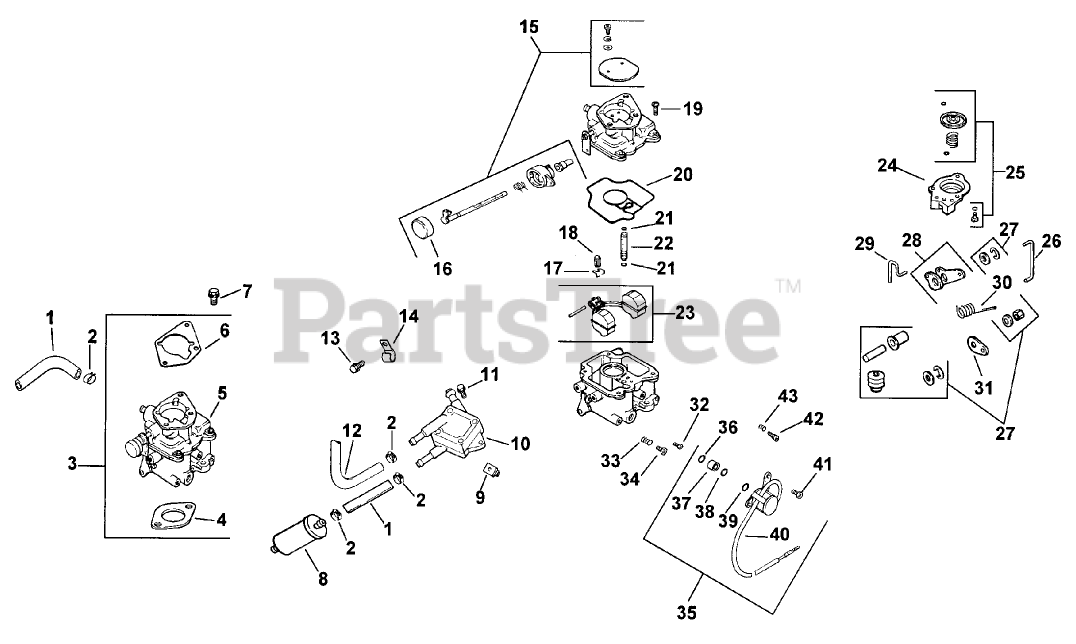

FUEL SYSTEM Parts Diagram

  • Title

1

2535310

Line fuel

$

$

Not available

2

Kohler X-426-9

Clamp
(Superseded to X-426-9-S)

$5.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 34

Kit, carburetor w/gasket (Includes 4-6)
(Superseded to 24 853 34-S)

$653.99

$

In Stock, only 1 left!

0

4

Kohler 24 041 06

Gasket
(Superseded to 24 041 06-S)

$2.99

$

In Stock, Qty 13

0

5

Kohler 24 053 34

Carburetor assembly (Includes 15-43 and carburetor repair kit 24 757 03)(For information only not available separately)

$

$

Not available

6

Kohler 24 041 17

Gasket
(Superseded to 24 041 17-S)

$9.49

$

In Stock, only 3 left!

0

7

Kohler M-0651030

Screw
(Superseded to M-651030-S)

$

$

Not available

8

Kohler 24 050 02

Filter-Fuel
(Superseded to 24 050 02-S)

$17.99

$

In Stock, Qty 20+

0

9

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

10

2439304

Pump-Fuel

$

$

Not available

11

2408612

Screw

$

$

Not available

12

2435302

Line, fuel

$

$

Not available

13

Kohler M-0650012

Screw
(Superseded to M-650012-S)

$3.99

$

In Stock, only 2 left!

0

14

2415401

Clip, cable

$

$

Not available

15

Kohler 24 757 07

Kit, choke repair (Includes 16)
(Superseded to 24 757 07-S)

$109.99

$

In Stock, only 1 left!

0

16

2417302

Cap-Choke Lever

$

$

Not available

17

2415401

Clip, cable

$

$

Not available

18

2446201

Valve-Inlet Needle

$

$

Not available

19

2408609

Screw

$

$

Not available

20

Kohler 24 041 09

Gasket-Body,Carburetor
(Superseded to 24 041 09-S)

$36.99

$

In Stock, only 1 left!

0

21

2415302

"O"Ring

$

$

Not available

22

Kohler 24 337 29

Jet-Slow
(Superseded to 24 337 29-S)

$

$

Not available

23

Kohler 24 757 02

Roat Repair Kit
(Superseded to 24 757 02-S)

$154.99

$

Usually ships in 2-5 days

0

24

Kohler 24 081 05

Housing-Pump
(Superseded to 24 081 05-S)

$52.99

$

Usually ships in 2-5 days

0

25

Kohler 24 757 08

Kit repair-accelerator pump
(Superseded to 24 757 08-S)

$97.99

$

In Stock, only 1 left!

0

26

Kohler 24 079 07

Linkage-Rod
(Superseded to 24 079 07-S)

$39.99

$

Usually ships in 2-5 days

0

27

Kohler 24 757 09

Kit repair-accelerator pump diagram
(Superseded to 24 757 09-S)

$125.99

$

Usually ships in 2-5 days

0

28

Kohler 24 090 16

Lever-Rod
(Superseded to 24 090 16-S)

$58.99

$

Usually ships in 2-5 days

0

29

Kohler 24 079 06

Linkage-Rod
(Superseded to 24 079 06-S)

$31.99

$

Usually ships in 2-5 days

0

30

Kohler 24 089 27

Spring-Linkage
(Superseded to 24 089 27-S)

$34.99

$

Usually ships in 2-5 days

0

31

Kohler 24 090 15

Lever-Linkage
(Superseded to 24 090 15-S)

$35.99

$

Usually ships in 2-5 days

0

32

Kohler 24 337 30

Jet-Main
(Superseded to 24 337 30-S)

$39.99

$

Usually ships in 2-5 days

0

33

2408911

Spring-Idle Adj.

$

$

Not available

34

2436801

Needle, idle

$

$

Not available

35

Kohler 24 757 01

Kit, solenoid assembly (Includes 36-41)
(Superseded to 24 757 01-S)

$261.99

$

In Stock, only 2 left!

0

36

Kohler 24 153 06

O-Ring
(Superseded to 24 153 06-S)

$5.49

$

In Stock, only 3 left!

0

37

2452101

Seat-Solenoid

$

$

Not available

38

Kohler 24 153 05

O-Ring
(Superseded to 24 153 05-S)

$5.49

$

Usually ships in 2-5 days

0

39

Kohler 24 153 04

O-Ring
(Superseded to 24 153 04-S)

$5.49

$

Usually ships in 2-5 days

0

40

2443501

Solenoid

$

$

Not available

41

2408607

Screw

$

$

Not available

42

2408610

Screw, idle adjusting

$

$

Not available

43

2408910

Spring-Idle Speed Adj.

$

$

Not available

Kohler 24 757 03

Carburetor Repair Kit
(Superseded to 24 757 03-S)

Note: Not illustrated

$129.99

$

In Stock, Qty 8

0
