74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 079000001 - 079999999) (1997) OIL PAN/LUBRICATION Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

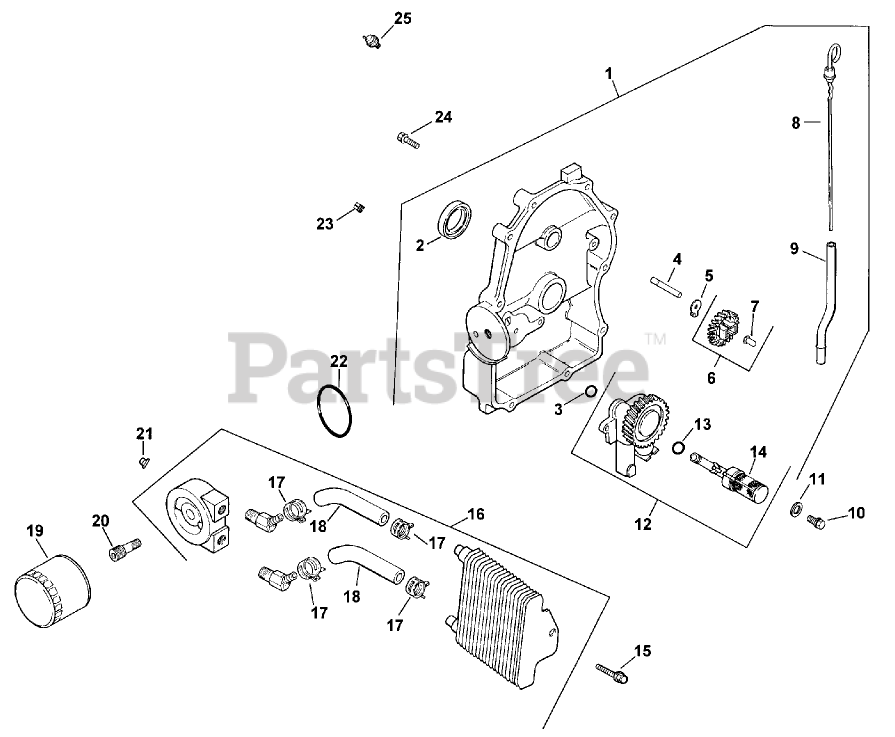

OIL PAN/LUBRICATION Parts Diagram

  • Title

2

Kohler 52 032 08

Seal-Oil
(Superseded to 52 032 08-S)

$13.99

$

In Stock, Qty 20+

0

3

Kohler 24 153 08

O Ring
(Superseded to 24 153 08-S)

$8.99

$

In Stock, Qty 7

0

4

Kohler 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

$5.99

$

In Stock, only 1 left!

0

5

Kohler 52 448 02

Tab-Locking
(Superseded to 52 448 02-S)

$2.49

$

In Stock, only 2 left!

0

6

Kohler 24 043 12

Kit, governor gear w/pin (Includes 7)
(Superseded to 24 043 12-S)

$76.99

$

In Stock, only 2 left!

0

7

Kohler 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

$3.49

$

In Stock, Qty 7

0

8

2403806

Dipstick

$

$

Not available

9

2412308

Tube-Dipstick

$

$

Not available

10

Kohler M-0645025

Screw
(Superseded to M-645025)

$3.49

$

In Stock, Qty 14

0

11

Kohler M-0631005

Washer
(Superseded to M-631005)

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 393 10

Oil pump assembly (Includes 13-14)
(Superseded to 24 393 10-S)

$

$

Not available

13

Kohler 24 153 01

O-Ring
(Superseded to 24 153 01-S)

$2.99

$

In Stock, Qty 13

0

14

Kohler 24 381 04

Pick Up-Oil
(Superseded to 24 381 04-S)

$34.99

$

In Stock, only 2 left!

0

15

2408612

Screw

$

$

Not available

16

2459409

Cooler, oil (Includes 17, 18)

$

$

Not available

17

2423703

Clamp, oil cooler (4)

$

$

Not available

18

2432615

Hose, oil (2)

$

$

Not available

19

Kohler 12 050 01

Filter-Oil
(Superseded to 12 050 01-S)

$13.99

$

In Stock, Qty 20+

0

20

2413603

Nipple, oil filter

$

$

Not available

21

Kohler 24 100 01

Nut
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

22

2415313

O-Ring

$

$

Not available

23

Kohler X-75-23

Plug
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

24

Kohler 24 086 16

Screw
(Superseded to 24 086 17-S)

$3.49

$

In Stock, Qty 20+

0

25

5209906

Switch, pressure

$

$

Not available

2511305

Decal-Oil Sentry

Note: Not illustrated

$

$
