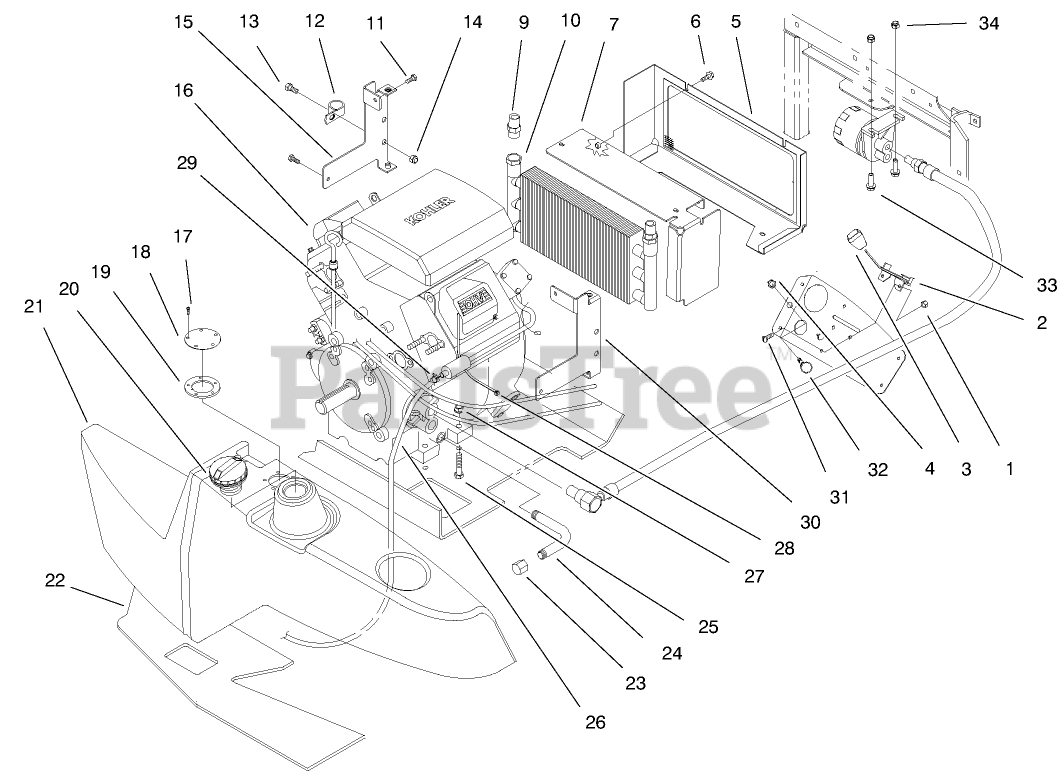

74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) ENGINE & FUEL TANK Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

ENGINE & FUEL TANK Parts Diagram

  • Title
1

Toro Part# 3296-2

NUT-LOCK, NI
Usually ships in 1 day

$

$1.36

0

2

Toro Part# 98-4350

THROTTLE CONTROL ASM
Usually ships in 1 day

$

$55.74

0

Usually ships in 1 day

$

$4.38

0

Usually ships in 1 day

$

$0.31

0

5

Toro Part# 94-9556-03

COOLER SHROUD ASM
Usually ships same day

Not available

$

$

6

Toro Part# 3234-4

SCREW-HHF
Usually ships in 1 day

$

$0.79

0

7

Toro Part# 98-1969-03

Cooler Shroud ASM
(Superseded to 98-1969)
Usually ships in 5 to 8 days

$

$97.51

0

9

Toro Part# 93-5107

FITTING-ADAPTER
Usually ships in 5 to 8 days

$

$17.60

0

10

Toro Part# 24-0760

COOLER ASM
Usually ships same day

Not available

$

$

11
Usually ships in 1 day

$

$3.98

0

12
Usually ships in 5 to 8 days

$

$8.49

0

13

Toro Part# 322-3

SCREW-HH
Usually ships in 1 day

$

$0.74

0

14

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$1.98

0

15

Toro Part# 98-1972-03

Bracket-Rear
(Superseded to 98-1972)
Usually ships same day

Not available

$

$

16

Toro Part# 99-0264

Engine-Kohler
Usually ships same day

Currently unavailable

$

$

17

Toro Part# 3250-29

SCREW-PPH
Usually ships in 5 to 8 days

$

$0.54

0

18

Toro Part# 94-9597-03

COVER-FUEL TANK OPENING
(Superseded to 94-9597)
Usually ships same day

Not available

$

$

19
Usually ships in 5 to 8 days

$

$3.15

0

20

Toro Part# 93-3101

CAP-FUEL
(Superseded to 115-5304)
Usually ships in 1 day

$

$22.14

0

21

Toro Part# 94-9553

FUEL TANK ASM
(Superseded to 107-1871)
Usually ships in 5 to 8 days

$

$574.32

0

22

Toro Part# 98-1319

FOAM-TANK, FUEL
Usually ships same day

Not available

$

$

23

Toro Part# 288-4

CAP-PIPE
Usually ships in 1 day

$

$17.62

0

24

Toro Part# 94-9499

TUBE-DRAIN, OIL
Usually ships in 5 to 8 days

$

$76.57

0

25

Toro Part# 323-9

SCREW-HH
Usually ships in 1 day

$

$1.00

0

26

Toro Part# 98-0976

HOSE-FUEL
(Superseded to 109-0299)
Usually ships in 5 to 8 days

$

$9.63

0

27

Toro Part# 3296-39

NUT-LOCK, NI
Usually ships in 1 day

$

$2.24

0

28
Usually ships in 1 day

$

$0.74

0

29

Toro Part# 2412-98

CLAMP-HOSE
Usually ships in 1 day

$

$1.00

0

30

Toro Part# 98-1970-03

Bracket-Front
(Superseded to 98-1970)
Usually ships in 5 to 8 days

$

$48.99

0

31

Toro Part# 3250-13

SCREW-PPH
Usually ships in 5 to 8 days

$

$1.41

0

32

Toro Part# 98-1956

CONTROL-CHOKE
Usually ships in 5 to 8 days

$

$40.90

0

33

Toro Part# 3234-17

SCREW-HHF
Usually ships in 1 day

$

$1.86

0

34

Toro Part# 3296-29

NUT-LOCK, NI
Usually ships in 1 day

$

$1.98

0
