74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) FRAME & WHEELS Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

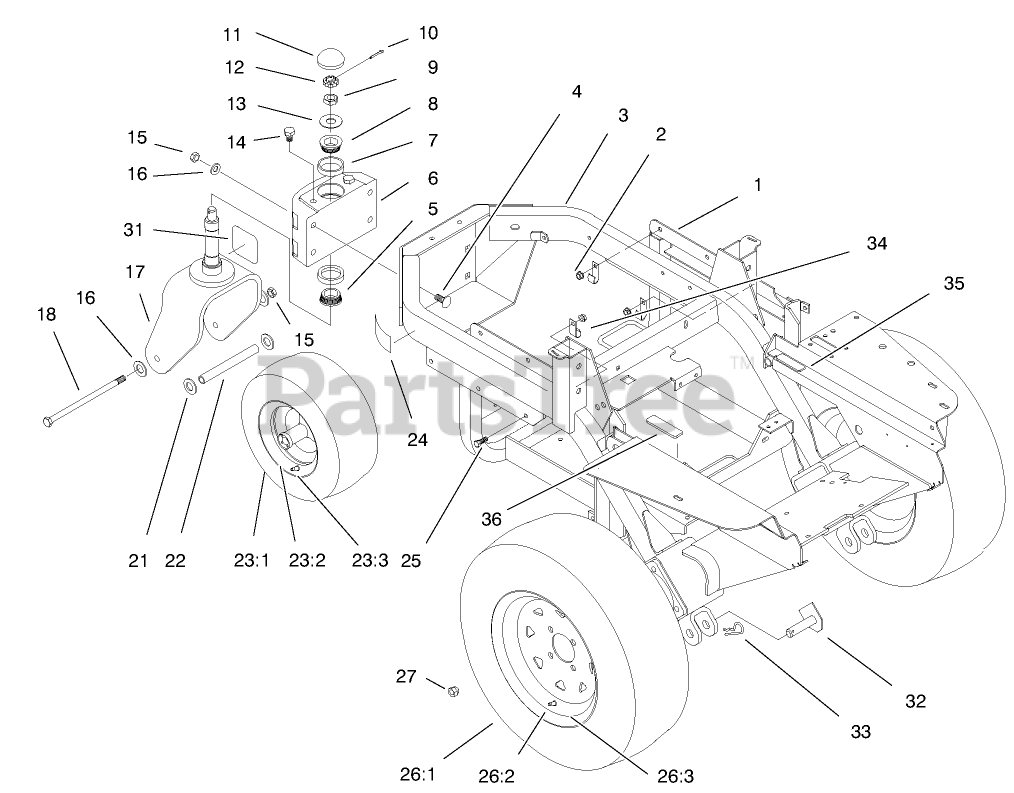

FRAME & WHEELS Parts Diagram

  • Title
1

Toro Part# 94-4618-03

ENGINE SUPPORT ASM
Usually ships in 5 to 8 days

$

$641.01

0

2

Toro Part# 3296-39

NUT-LOCK, NI
Usually ships in 1 day

$

$2.24

0

3

Toro Part# 94-9598

FRAME ASM W/ DECALS
Usually ships in 5 to 8 days

$

$4615.81

0

4

Toro Part# 3233-27

SCREW-CARR
Usually ships in 5 to 8 days

$

$10.58

0

5

Toro Part# 254-70

BEARING-CONE
(Superseded to 115-9472)
Usually ships in 5 to 8 days

$

$21.50

0

6

Toro Part# 94-9489-01

HOUSING - SPINDLE
Usually ships in 5 to 8 days

$

$587.38

0

7

Toro Part# 254-61

CUP-BEARING, ROLLER
(Superseded to 115-9471)
Usually ships in 5 to 8 days

$

$5.77

0

8

Toro Part# 254-62

BEARING-ROLLER, CONE
Usually ships in 5 to 8 days

$

$11.37

0

9
Usually ships in 1 day

$

$4.48

0

10

Toro Part# 3272-17

PIN-COTTER
Usually ships in 5 to 8 days

$

$1.42

0

11
Usually ships in 5 to 8 days

$

$20.94

0

12

Toro Part# 93-0307

NUT-LOCK, RETAINER
Usually ships in 5 to 8 days

$

$2.59

0

13

Toro Part# 3256-8

WASHER-FLAT
Usually ships in 1 day

$

$2.96

0

14

Toro Part# 325-2

SCREW-HH
Usually ships in 5 to 8 days

$

$2.36

0

15

Toro Part# 3296-23

NUT-LOCK, NI
Usually ships in 1 day

$

$0.84

0

16

Toro Part# 3256-26

WASHER-FLAT
Usually ships in 1 day

$

$0.48

0

17

Toro Part# 94-4647-01

CASTER FORK ASM
Usually ships same day

Not available

$

$

18
Usually ships in 1 day

$

$11.11

0

19

Toro Part# 98-4383

DECAL - PATENT NUMBERS, OFZ
Usually ships same day

Not available

$

$

21

Toro Part# 3256-39

WASHER-FLAT
Usually ships in 5 to 8 days

$

$1.02

0

22

Toro Part# 94-4753

TUBE-SPACER, CASTOR
Usually ships in 5 to 8 days

$

$30.21

0

23:1
Usually ships in 5 to 8 days

$

$113.16

0

23:2

Toro Part# 98-4351

WHEEL ASM
Usually ships in 5 to 8 days

$

$182.21

0

23:3

Toro Part# 232-27

STEM-VALVE
(Superseded to 5108)
Usually ships in 1 day

$

$4.11

0

24

Toro Part# 93-9198

DECAL-HOT SURFACE
Usually ships same day

Not available

$

$

25

Toro Part# 323-6

SCREW-HH
Usually ships in 1 day

$

$2.09

0

26:1

Toro Part# 94-9388

Tire
(Superseded to 87-3290)
Usually ships in 5 to 8 days

$

$142.34

0

26:2

Toro Part# 232-27

STEM-VALVE
(Superseded to 5108)
Usually ships in 1 day

$

$4.11

0

26:3
Usually ships in 5 to 8 days

$

$276.61

0

27
Usually ships in 1 day

$

$1.57

0

31

Toro Part# 95-1957

DECAL - Z325
Usually ships same day

Not available

$

$

32

Toro Part# 94-4755

PIVOT PIN ASM
Usually ships in 5 to 8 days

$

$52.39

0

33
Usually ships in 1 day

$

$0.73

0

34
Usually ships in 1 day

$

$1.52

0

35

Toro Part# 52-5260

PAD-RUBBER
Usually ships in 5 to 8 days

$

$13.00

0

36

Toro Part# 98-4361

DECAL-WARNING
Usually ships in 1 day

$

$18.35

0
