74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) HEAD/VALVE/BREATHER Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

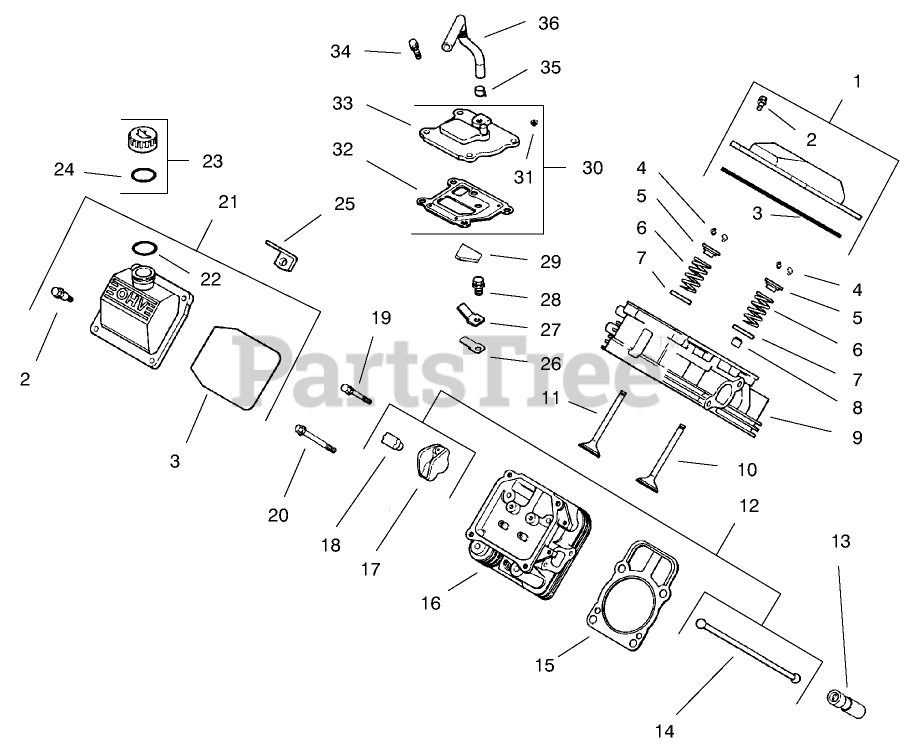

HEAD/VALVE/BREATHER Parts Diagram

  • Title
1

Kohler Part# 24 755 74

Kit, valve cover-plain (Includes 2,3)
(Superseded to 24 755 141-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$29.00

0

2

Part# 2408632

Screw

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

3

Kohler Part# 24 153 16

O-Ring
(Superseded to 24 153 23-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$14.75

0

4

Kohler Part# 12 755 03

Retainer Kit
(Superseded to 12 755 03-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$4.81

0

5

Kohler Part# 12 173 01

Cap-Spring, Valve
(Superseded to 25 173 28-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$6.56

0

6

Kohler Part# 24 089 02

Spring-Valve
(Superseded to 24 089 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$6.53

0

7

Kohler Part# 235011

Retainer-Spring
(Superseded to 235011-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$5.08

0

8

Kohler Part# 24 032 05

Seal-Stem, Valve
(Superseded to 25 032 14-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$9.12

0

9

Kohler Part# 24 318 13

#1 Cylinder Head ASM
(Superseded to 24 318 171-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 4 to 10 days

$

$206.25

0

10

Kohler Part# 24 017 01

Valve-Intake
(Superseded to 24 017 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$24.82

0

Kohler Part# 24 017 02

Valve-Intake (.25)
(Superseded to 24 017 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 4 to 10 days

$

$25.46

0

11

Kohler Part# 24 016 01

Valve-Exhaust
(Superseded to 32 016 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$12.26

0

Kohler Part# 24 016 02

Valve-Exhaust (.25)
(Superseded to 24 016 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$42.68

0

12

Kohler Part# 24 755 66

Kit, valve train (Includes 14, 17, 18)
(Superseded to 24 755 66-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$36.58

0

13

Part# 1235102

Lifter-Valve

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

14

Kohler Part# 24 411 05

Rod-Push
(Superseded to 24 411 05-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$4.09

0

15

Part# 2404116

Gasket, cylinder head (2)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

16

Kohler Part# 24 318 14

#2 Cylinder Head ASM
(Superseded to 24 318 172-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 4 to 10 days

$

$203.10

0

17

Kohler Part# 25 186 01

Arm-Rocker
(Superseded to 25 186 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$10.36

0

18

Kohler Part# 24 599 01

Pivot-Arm, Rocker
(Superseded to 24 599 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

19

Kohler Part# M-0640034

Screw

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

20

Part# 1208616

Screw

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

21

Part# 2475575

Kit, valve cover-oil fill (Includes 2, 3, 22)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

22

Kohler Part# 24 153 09

O-Ring
(Superseded to 24 153 32-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

23

Part# 1217304

Kit, oil fill cap (Includes 24)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

24

Part# 1215303

"O"Ring

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

25

Part# 2444501

Strap-Lifting

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

26

Kohler Part# 24 402 03

Reed
(Superseded to 24 402 03-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 4 to 10 days

$

$2.62

0

27

Kohler Part# 12 018 01

Retainer-Reed
(Superseded to 66 018 04-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$3.82

0

28

Kohler Part# M-0545010

Screw
(Superseded to M-545010-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$3.51

0

29

Kohler Part# 24 050 01

Filter-Breather
(Superseded to 24 050 11-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

30

Kohler Part# 24 033 01

Kit, breather (Includes 31-33)
(Superseded to 24 033 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$25.03

0

31

Kohler Part# X-75-23

Plug
(Superseded to 25 139 60-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$2.52

0

32

Kohler Part# 24 041 23

Gasket-Breather
(Superseded to 24 041 67-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$10.51

0

33

Part# 2409602

Cover-Breather

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

34

Kohler Part# M-0645020

Screw
(Superseded to 25 086 396-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

35

Kohler Part# X-426-9

Clamp
(Superseded to 25 237 31-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$3.72

0

36

Part# 2432606

Hose-Breather

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$
