74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) HEAT SHIELDS AND EXHAUST Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

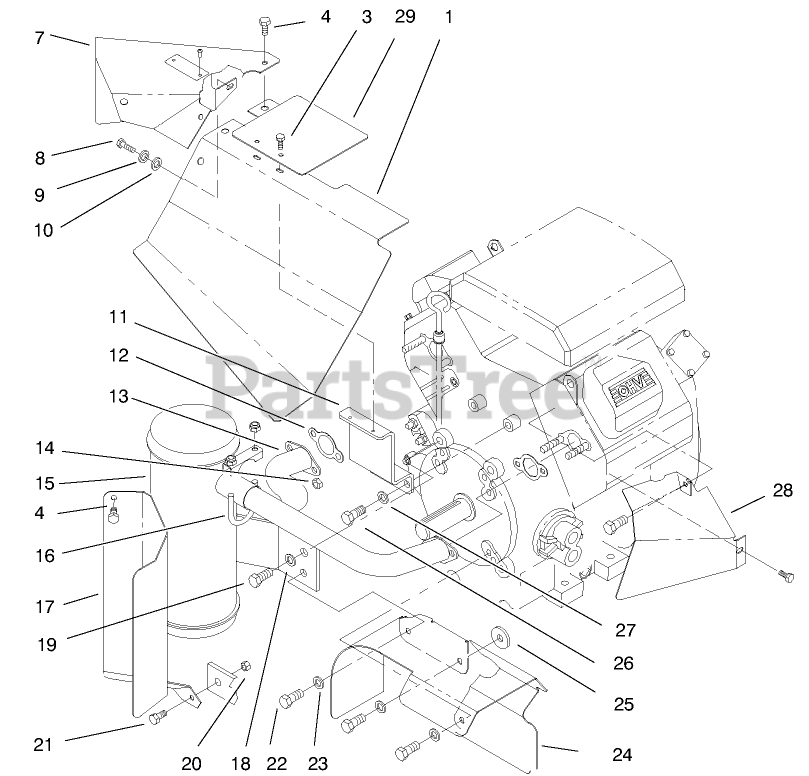

HEAT SHIELDS AND EXHAUST Parts Diagram

  • Title
1

Toro Part# 98-1967

TOP HEAT BAFFLE ASM
Usually ships in 5 to 8 days

$

$116.73

0

1:2

Toro Part# 32148-6

INSERT-NUT

Note: Not illustrated

Usually ships in 5 to 8 days

$

$2.10

0

Usually ships in 1 day

$

$6.38

0

4

Toro Part# 3234-4

SCREW-HHF
Usually ships in 1 day

$

$0.79

0

7

Toro Part# 98-1968

REAR HEAT BAFFLE ASM
Usually ships same day

Not available

$

$

8
Usually ships in 5 to 8 days

$

$3.82

0

9

Toro Part# 48-8020

WASHER-SPRING
Usually ships in 5 to 8 days

$

$1.00

0

10

Toro Part# 33093-00

WASHER-FLAT
Usually ships in 5 to 8 days

$

$1.11

0

11

Toro Part# 94-9561-03

Bracket-Manifold Shield
Usually ships same day

Currently unavailable

$

$

12

Toro Part# 93-0350

GASKET-EXHAUST
(Superseded to 110-6697)
Usually ships in 1 day

$

$2.82

0

13
Usually ships in 5 to 8 days

$

$238.81

0

14

Toro Part# 92-6780

NUT-HF
(Superseded to 33004-00)
Usually ships in 1 day

$

$0.54

0

15
Usually ships in 5 to 8 days

$

$417.00

0

16

Toro Part# 2112-11

CLAMP-MUFFLER
Usually ships in 1 day

$

$5.45

0

17

Toro Part# 98-1329

BAFFLE-HEAT, MIDDLE
Usually ships in 5 to 8 days

$

$68.21

0

18

Toro Part# 3253-6

WASHER-LOCK
Usually ships in 5 to 8 days

$

$1.86

0

19

Toro Part# 324-4

SCREW-HH
Usually ships in 5 to 8 days

$

$3.04

0

20

Toro Part# 3296-42

NUT-LOCK, NI
Usually ships in 1 day

$

$0.38

0

21

Toro Part# 321-4

SCREW-HH
Usually ships in 1 day

$

$0.85

0

22

Toro Part# 323-5

SCREW-HH
Usually ships in 1 day

$

$0.86

0

23

Toro Part# 3253-5

WASHER-LOCK
Usually ships in 5 to 8 days

$

$0.37

0

24

Toro Part# 98-1326

BAFFLE-HEAT, LOWER
Usually ships same day

Not available

$

$

25
Usually ships in 1 day

$

$2.26

0

26
Usually ships in 1 day

$

$0.54

0

27

Toro Part# 42-9850

WASHER-LOCK, SPRING
(Superseded to 3253-4)
Usually ships in 1 day

$

$0.68

0

28

Toro Part# 98-1349

BAFFLE-HEAT, FRONT
Usually ships same day

Not available

$

$

29

Toro Part# 98-1979

PANEL-ACCESS, BAFFLE
Usually ships in 5 to 8 days

$

$10.82

0
