74182 (Z 325) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089001200 - 089001564) (1998) OIL PAN/LUBRICATION Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

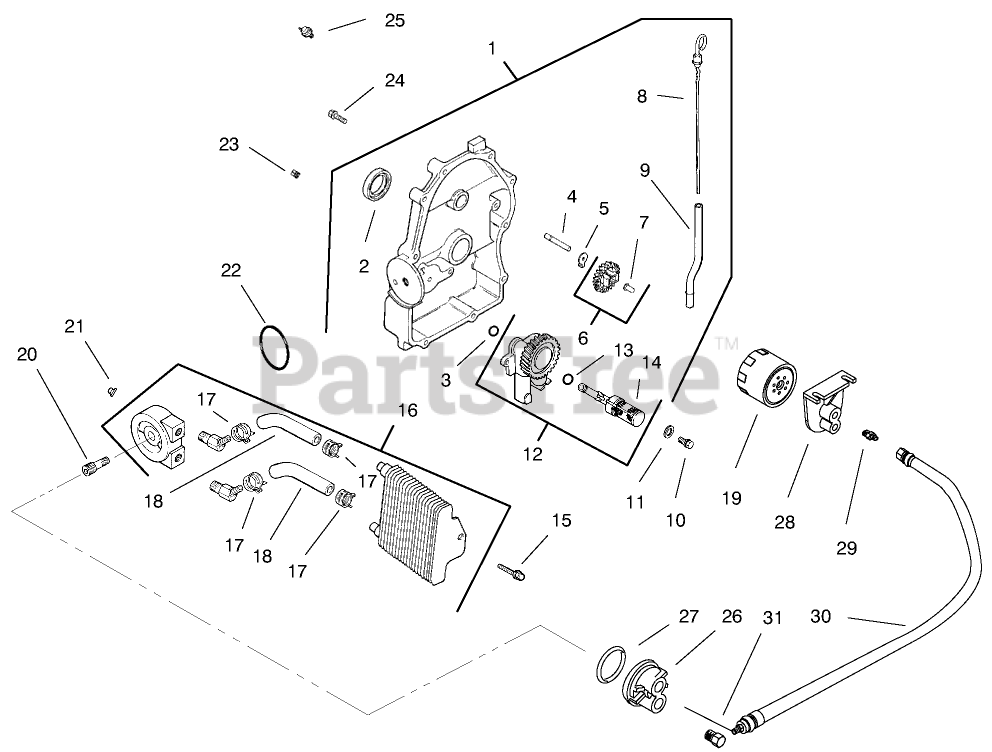

OIL PAN/LUBRICATION Parts Diagram

  • Title
2

Kohler Part# 52 032 08

Seal-Oil
(Superseded to 25 032 06-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$8.88

0

3

Kohler Part# 24 153 08

O Ring
(Superseded to 24 153 08-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$5.14

0

4

Kohler Part# 12 144 02

Shaft-Gear, Governor
(Superseded to 12 144 02-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 4 to 10 days

$

$3.56

0

5

Kohler Part# 52 448 02

Tab-Locking
(Superseded to 24 448 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

6

Kohler Part# 24 043 12

Kit, governor gear w/pin (Includes 7)
(Superseded to 24 043 12-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 4 to 10 days

$

$56.26

0

7

Kohler Part# 12 380 01

Pin-Governor
(Superseded to 12 380 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$2.63

0

8

Part# 2403803

Dipstick

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

9

Part# 2412404

Tube, dipstick

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

10

Kohler Part# M-0645025

Screw
(Superseded to 25 086 395-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

11

Kohler Part# M-0631005

Washer
(Superseded to M-631005-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

12

Kohler Part# 24 393 10

Oil pump assembly (Includes 13-14)
(Superseded to 24 393 53-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

13

Kohler Part# 24 153 01

O-Ring
(Superseded to 24 153 01-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

14

Kohler Part# 24 381 04

Pick Up-Oil
(Superseded to 24 381 04-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$28.26

0

15

Part# 2408612

Screw

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

16

Part# 2459409

Cooler, oil (Includes 17,18)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

17

Part# 2423703

Clamp, oil cooler (4)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

18

Part# 2432615

Hose, oil (2)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

19

Part# 5205002

Filter-Oil

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

20

Part# 2413603

Nipple, oil filter

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

21

Kohler Part# 24 100 01

Nut
(Superseded to 25 100 37-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

22

Part# 2415313

O-Ring

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

23

Kohler Part# X-75-23

Plug
(Superseded to 25 139 60-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$2.52

0

24

Kohler Part# 24 086 16

Screw
(Superseded to 24 086 17-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$1.92

0

25

Kohler Part# 24 099 03

Switch-Pressure
(Superseded to 24 099 03-S)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships in 1 day

$

$28.63

0

Part# 2511305

Decal-Oil Sentry

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

Part# 2511305

Decal-Oil Sentry

Note: Not illustrated

Usually ships same day

Not available

$

$

Part# 2411325

Decal, oil cooler

Note: Not illustrated

Usually ships same day

Not available

$

$

Part# 2411325

Decal, oil cooler

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

26

Part# 2402902

Adapter-Oil Filter

Note: Not illustrated

Usually ships same day

Not available

$

$

26

Part# 2402902

Adapter-Oil Filter

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

27

Part# 2415313

O-Ring

Note: Not illustrated

Usually ships same day

Not available

$

$

27

Part# 2415313

O-Ring

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

28

Part# 2502901

Adapter-Remote Filter

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

28

Part# 2502901

Adapter-Remote Filter

Note: Not illustrated

Usually ships same day

Not available

$

$

29

Part# 5213602

Nipple (2)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

29

Part# 5213602

Nipple (2)

Note: Not illustrated

Usually ships same day

Not available

$

$

30

Part# 5232611

Hose-Oil (2)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$

30

Part# 5232611

Hose-Oil (2)

Note: Not illustrated

Usually ships same day

Not available

$

$

31

Part# 2429404

Fitting (2)

Note: Not illustrated

Usually ships same day

Not available

$

$

31

Part# 2429404

Fitting (2)

Note: Kohler Engine CH25S 68576 Obtain Parts from Kohler

Usually ships same day

Not available

$

$
