74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) BLOWER ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

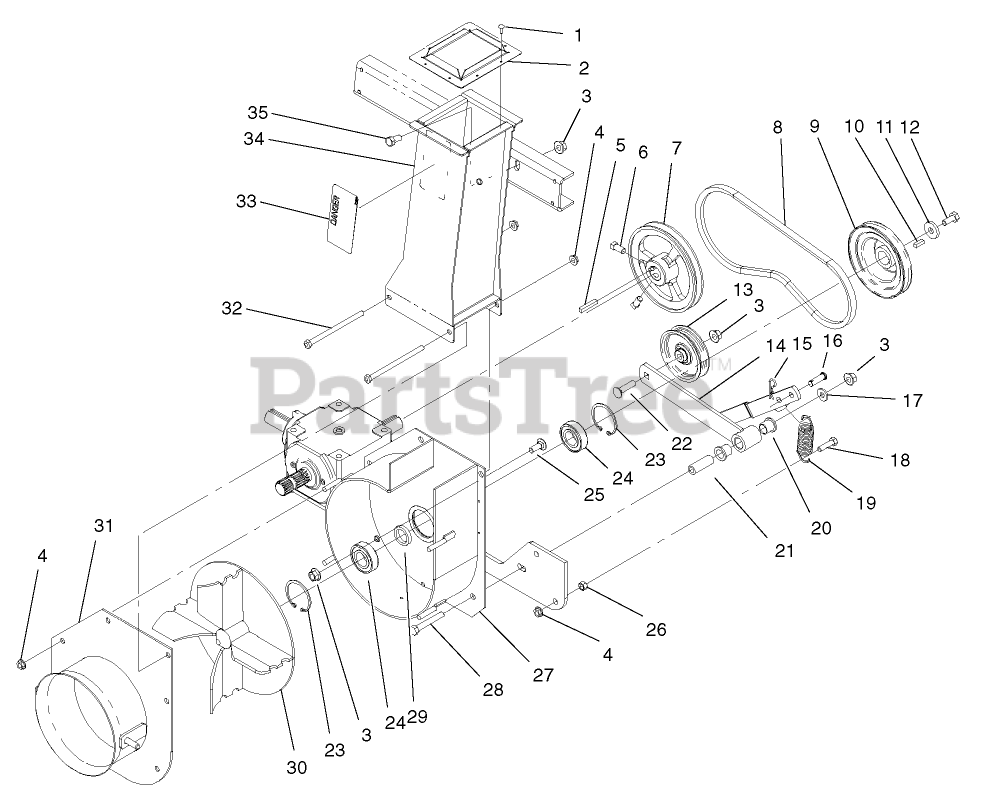

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

2

Toro 100-4558-03

FLANGE-CHUTE

$100.99

$

In Stock, only 2 left!

0

3

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

4

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 19

0

5

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, only 2 left!

0

6

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

7

Toro 94-4630

PULLEY-GEARBOX

$176.99

$

Usually ships in 3-6 days

0

8

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

9

Toro 99-0287

Pulley-Impeller
(Superseded to 99-0287-03)

$

$

Not available

10

Toro 20-9540

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

11

Toro 65-8680

WASHER-THRUST, PLAIN

$48.99

$

Usually ships in 3-6 days

0

12

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

13

Toro 56-4920

PULLEY-IDLER

$89.99

$

Usually ships in 3-6 days

0

14

Toro 95-6437-03

IDLER ARM ASM

$175.99

$

Usually ships in 3-6 days

0

15

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 10

0

16

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 1 left!

0

17

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

19

Toro 67-1440

SPRING-EXTENSION

$17.99

$

Usually ships in 3-6 days

0

20

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, Qty 5

0

21

Toro 95-6448

SPACER

$5.99

$

Usually ships in 3-6 days

0

22

Toro 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

23

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 20+

0

24

Toro 251-82

BEARING-BALL

$20.99

$

In Stock, Qty 8

0

25

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

27

Toro 99-0290-03

HOUSING ASM
(Superseded to 105-1627)

$

$

Not available

28

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 95-6427

SPACER-BEARING

$14.99

$

Usually ships in 3-6 days

0

30

Toro 99-0288-03

Impeller ASM
(Superseded to 105-1684)

$976.99

$

Usually ships in 3-6 days

0

31

Toro 100-7795-03

COVER ASM

$

$

Not available

32

Toro 322-29

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

33

Toro 79-0360

DECAL-DANGER

$

$

Not available

34

Toro 95-4345-03

IMPELLER CHUTE ASM
(Superseded to 98-8075)

$

$

Not available

35

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0
