74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) PINION ASSEMBLY NO. 100-7755 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

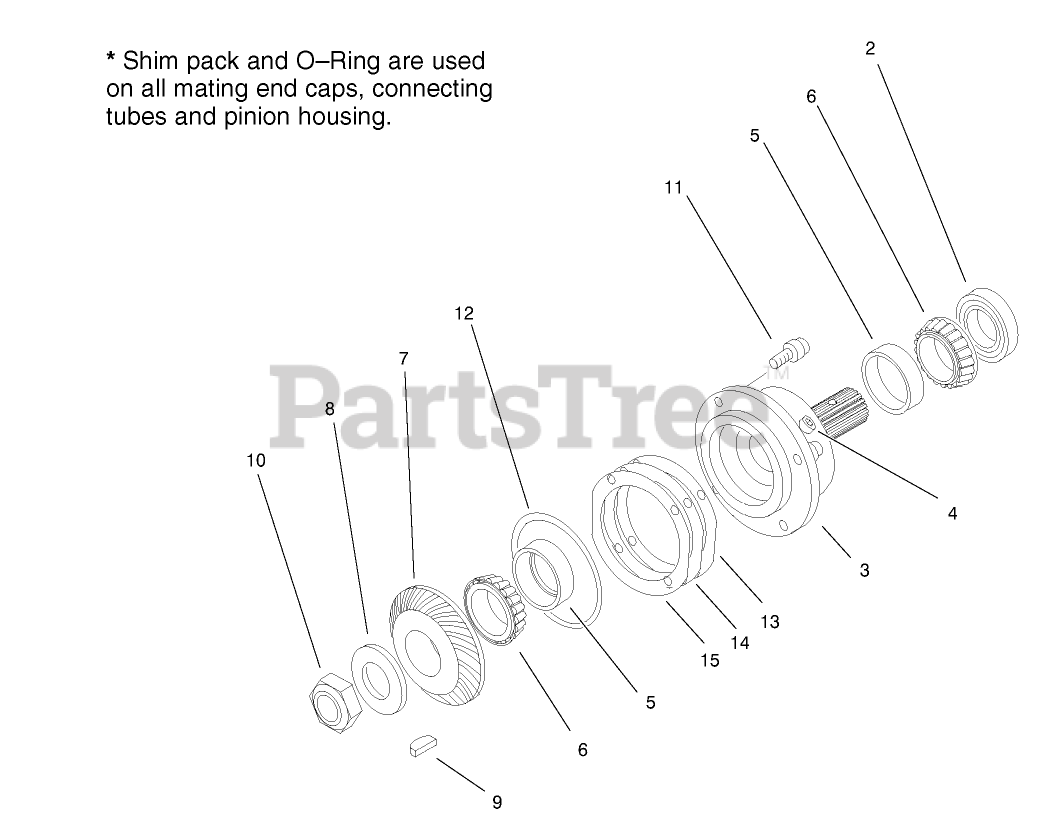

PINION ASSEMBLY NO. 100-7755 Parts Diagram

  • Title

2

Toro 100-4575

SEAL

$67.99

$

In Stock, only 2 left!

0

3

Toro 100-4565

HOUSING - PINION

$

$

Not available

4

Toro 100-4583

PLUG

$

$

Not available

5

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$11.99

$

In Stock, only 2 left!

0

6

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.99

$

In Stock, Qty 20+

0

7

Toro 100-4569

GEAR - 27 TOOTH

$

$

Not available

8

Toro 100-4581

WASHER

$47.99

$

Usually ships in 3-6 days

0

9

Toro 100-4580

KEY-WOODRUFF
(Superseded to 3257-33)

$2.49

$

Usually ships in 3-6 days

0

10

Toro 100-4577

NUT-JAM

$

$

Not available

11

Toro 100-4578

SCREW

$15.99

$

Usually ships in 3-6 days

0

12

Toro 100-4582

O-RING

$9.49

$

Usually ships in 3-6 days

0

13

Toro 100-4591

SHIM-BROWN, .010IN
(Superseded to 112-7034)

$23.99

$

Usually ships in 3-6 days

0

14

Toro 100-4592

SHIM-BLUE, .005IN

$13.99

$

Usually ships in 3-6 days

0

15

Toro 100-4593

SHIM-GREEN, .003IN

$12.99

$

Usually ships in 3-6 days

0
