74187 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000501 - 200999999) (2000) REAR HYDRAULIC ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

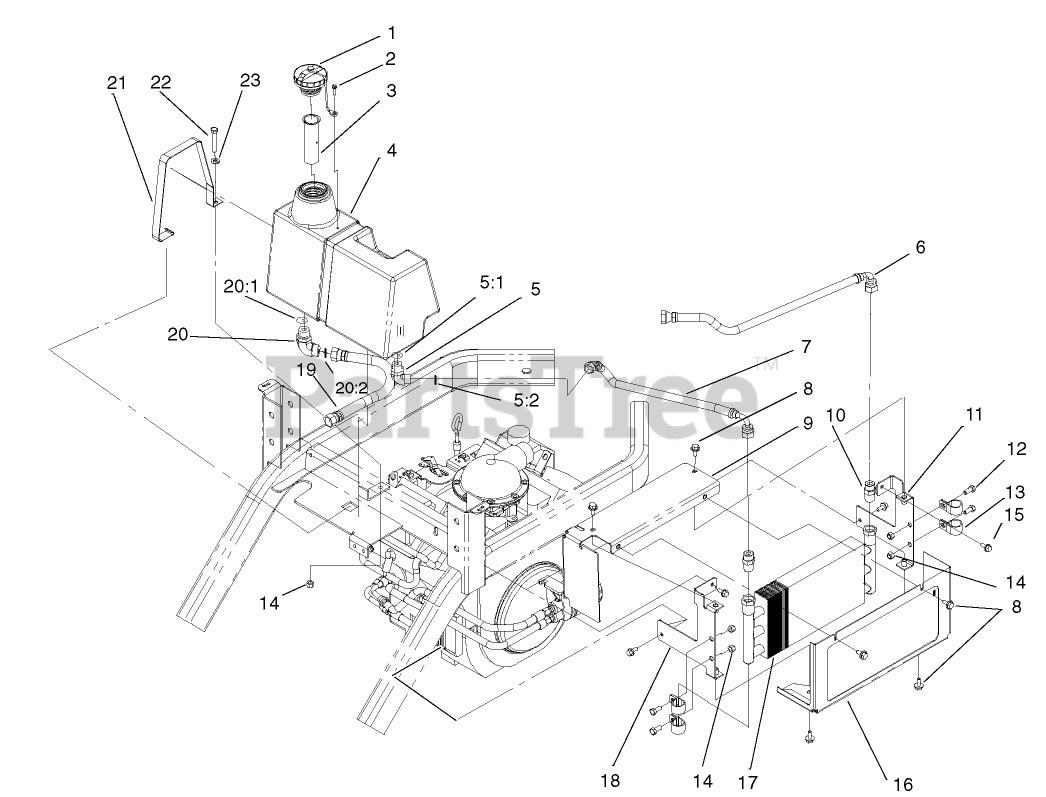

REAR HYDRAULIC ASSEMBLY Parts Diagram

  • Title

1

Toro 93-4365

CAP-OIL

$72.99

$

In Stock, only 1 left!

0

2

Toro 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

3

Toro 92-1705

FILTER-SCREEN

$64.99

$

Usually ships in 3-6 days

0

4

Toro 94-4700

TANK-HYD
(Superseded to 133-5499)

$506.99

$

Usually ships in 3-6 days

0

5

Toro 340-98

FITTING-ELBOW-90 DEG

$36.99

$

In Stock, only 2 left!

0

5:1

Toro 237-79

O-RING

$6.49

$

In Stock, only 3 left!

0

5:2

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

6

Toro 94-4709

HYDRAULIC HOSE ASM

$

$

Not available

7

Toro 94-4713

HYDRAULIC HOSE ASM

$

$

Not available

8

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

9

Toro 98-1969

COOLER SHROUD ASM

$

$

Not available

10

Toro 93-5107

FITTING-ADAPTER

$27.99

$

Usually ships in 3-6 days

0

11

Toro 98-1972

REAR COOLER BRACKET ASM

$

$

Not available

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 2412-39

CLAMP-R

$11.99

$

Usually ships in 3-6 days

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 10

0

16

Toro 94-9556-03

COOLER SHROUD ASM

$

$

Not available

17

Toro 24-0760

COOLER ASM

$

$

Not available

18

Toro 98-1971

FRONT COOLER BRACKET ASM

$153.99

$

Usually ships in 3-6 days

0

19

Toro 94-4710

HYDRAULIC HOSE ASM

$

$

Not available

20

Toro 340-105

FITTING-ELBOW 90

$46.99

$

In Stock, only 1 left!

0

20:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 8

0

20:2

Toro 237-30

O-RING

$2.99

$

Usually ships in 3-6 days

0

21

Toro 94-4642-03

STRAP-TANK, HYD

$44.99

$

Usually ships in 3-6 days

0

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
