74189 (Z 355) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200000500) (2000) BLOWER HOUSING & BAFFLES (KOHLER CH25S PS68656) Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

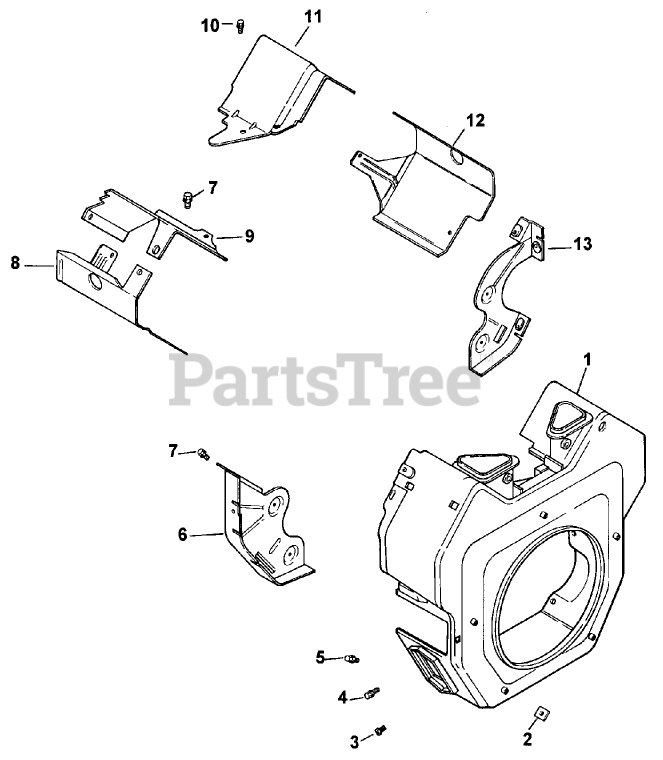

BLOWER HOUSING & BAFFLES (KOHLER CH25S PS68656) Parts Diagram

  • Title

1

Kohler 54 027 05-S

Housing, blower assembly (Incl. 2-4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$151.99

$

Usually ships in 2-5 days

0

2

Toro 25 088 43-S

Screw, set

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

4

Kohler 24 100 02-S

NUT-PLASTIC

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

5

Kohler M-551016-S

Screw-Hex Flange, Heavy (M5x0.8x16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

6

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 13

0

7

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 7

0

8

Kohler 24 146 11-S

Plate, backing-#2 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, Qty 20+

0

10

Toro 24 063 28-S

Baffle, cylinder barrel-#2 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

11

Kohler 24 063 17-S

Baffle-Valley (No. 2 Side)
(Superseded to 24 063 70-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 1 left!

0

12

Kohler M-545010-S

SCREW-HHFTF (M5X.80X10)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 9

0

13

Kohler 24 063 24-S

Baffle-Valley, No. 1 side
(Superseded to 24 063 59-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 3 left!

0

Kohler 24 113 09-S

Decal, horsepower
(Superseded to 24 113 52-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 24 113 09-S

Decal, horsepower
(Superseded to 24 113 52-S)

Note: Not illustrated

$

$

Not available

14

Kohler 24 063 30-S

Baffle, cyl. barrel-#1
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

Usually ships in 2-5 days

0

15

Kohler 24 146 08-S

Plate-Backing #1 side

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
