74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089000001 - 089000159) (1998) PLENUM AND DISCHARGE BRACKET Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

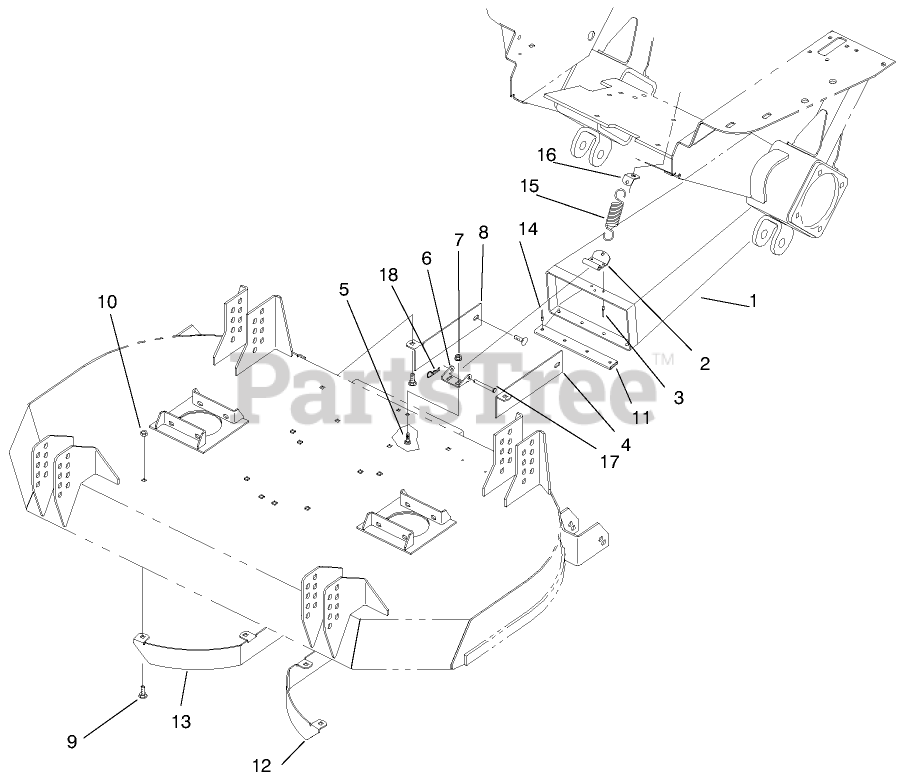

PLENUM AND DISCHARGE BRACKET Parts Diagram

  • Title

1

Toro 95-4323

Plenum
(Superseded to 99-0258)

$257.99

$

Usually ships in 3-6 days

0

2

Toro 98-7316

BRACKET - PLENUM

$

$

Not available

3

Toro 3269-25

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

4

Toro 98-3002

Bracket-Discharge
(Superseded to 98-3002-01)

$30.99

$

Usually ships in 3-6 days

0

5

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 11

0

6

Toro 98-7317

BRACKET - HINGE

$

$

Not available

7

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

8

Toro 98-3003

Bracket-Discharge
(Superseded to 98-3003-01)

$

$

Not available

9

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

11

Toro 98-0843

GUARD - PLENUM B

$28.99

$

Usually ships in 3-6 days

0

12

Toro 98-3015

Baffle-LH
(Superseded to 98-3015-01)

$

$

Not available

13

Toro 98-3016

Baffle-RH
(Superseded to 98-3016-01)

$

$

Not available

14

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

15

Toro 98-3037

SPRING - EXTENSION

$17.99

$

Usually ships in 3-6 days

0

16

Toro 98-3035

BRACKET-SPRING

$

$

Not available

17

Toro 283-49

PIN-CLEVIS

$1.49

$

Usually ships in 3-6 days

0

18

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0
