74191 (Z 320) - Toro 122cm Z Master Zero-Turn Mower with Bagger (SN: 089000160 - 089500000) (1998) BLOWER ASSEMBLY Parts Diagram

122cm Z Master Zero-Turn Mower with Bagger

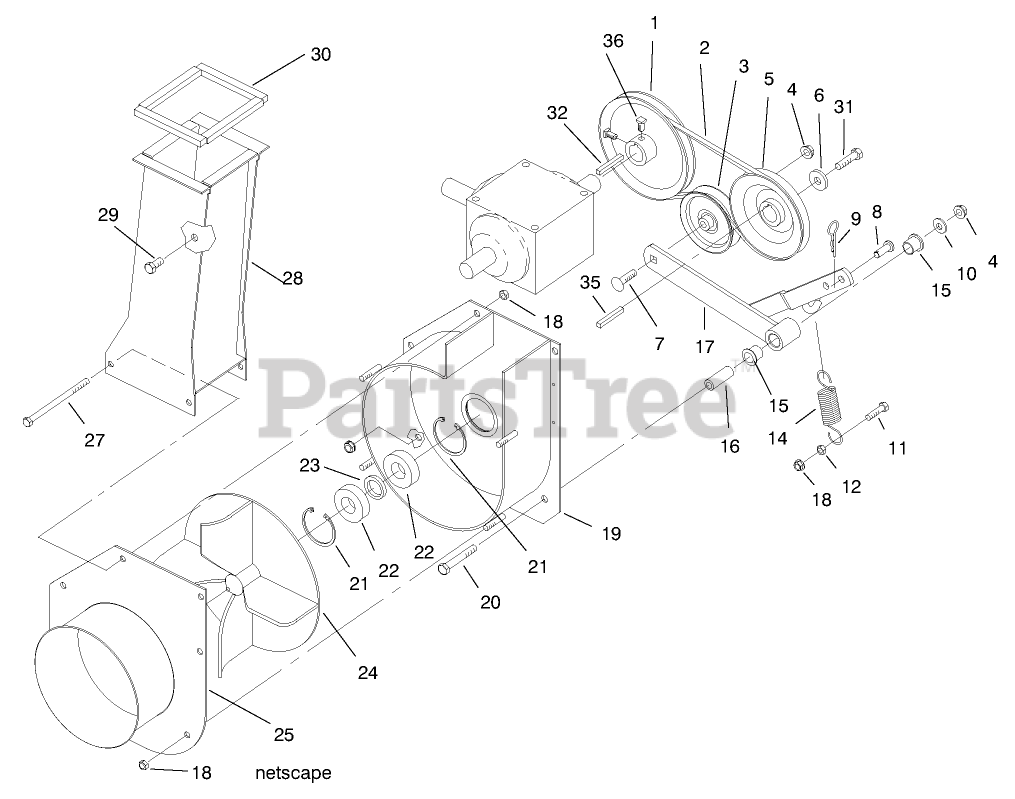

BLOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 98-4392

PULLEY-GEARBOX

$

$

Not available

2

Toro 98-4393

V-BELT

$29.31

$

In Stock, only 1 left!

0

3

Toro 56-4920

PULLEY-IDLER

$98.99

$

Usually ships in 3-6 days

0

4

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

5

Toro 95-6438

PULLEY - IMPELLER B
(Superseded to 105-1684)

$1205.99

$

Usually ships in 3-6 days

0

6

Toro 65-8680

WASHER-THRUST, PLAIN

$50.99

$

Usually ships in 3-6 days

0

7

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, only 1 left!

0

8

Toro 283-2

PIN-CLEVIS

$14.99

$

In Stock, only 2 left!

0

9

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, only 4 left!

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

11

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

12

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

14

Toro 67-1440

SPRING-EXTENSION

$18.99

$

Usually ships in 3-6 days

0

15

Toro 256-90

BUSHING-FLANGE

$3.99

$

In Stock, only 4 left!

0

16

Toro 95-6448

SPACER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 95-6437

Idler Arm
(Superseded to 95-6437-03)

$

$

Not available

18

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

19

Toro 95-6435

Housing
(Superseded to 105-1627)

$

$

Not available

20

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 7

0

21

Toro 32120-8

RING-SNAP

$2.99

$

In Stock, only 2 left!

0

22

Toro 251-82

BEARING-BALL

$24.99

$

In Stock, only 4 left!

0

23

Toro 95-6427

SPACER-BEARING

$15.99

$

Usually ships in 3-6 days

0

24

Toro 98-4391

Impeller ASM
(Superseded to 98-4391-03)

$893.99

$

Usually ships in 3-6 days

0

25

Toro 95-6436

Cover
(Superseded to 95-6436-03)

$417.99

$

Usually ships in 3-6 days

0

27

Toro 322-29

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

28

Toro 95-4345

Impeller Chute
(Superseded to 98-8075)

$

$

Not available

29

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

30

Toro 98-0824

STRIP - FOAM

$3.49

$

Usually ships in 3-6 days

0

31

Toro 323-5

SCREW-HH

$1.49

$

In Stock, Qty 9

0

32

Toro 67-7490

KEY-SQUARE

$2.99

$

In Stock, Qty 5

0

35

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

36

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 12

0
