74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 200000001 - 200999999) (2000) FUEL SYSTEM (KOHLER CH20S PS64644) Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

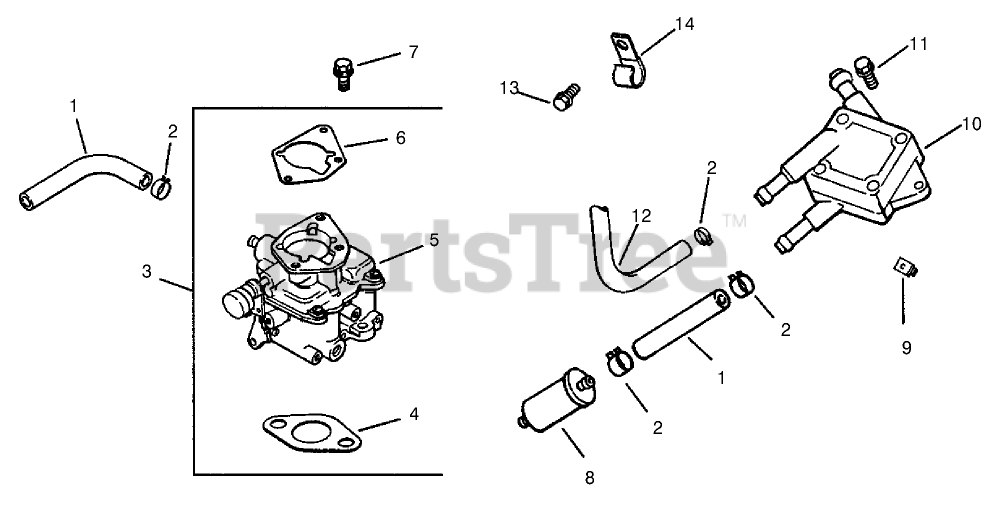

FUEL SYSTEM (KOHLER CH20S PS64644) Parts Diagram

  • Title

1

Kohler 25 353 10-S

Line-Fuel 9"

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 1 left!

0

2

Kohler X-426-9-S

Clamp
(Superseded to 25 237 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

0

3

Kohler 24 853 75-S

Kit, carburetor w/gasket (Includes 4-6)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$252.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 13

0

5

Kohler 24 053 75

Carburetor assembly (For information only not available seperately)(Includes 24 757 01-S, 24 757 02-S, 24 757 03-S, & 24 757 07-S,

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 24 041 17-S

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, Qty 5

0

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 20+

0

9

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

0

10

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 18

0

11

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

In Stock, only 3 left!

0

13

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.99

$

In Stock, only 2 left!

0

14

Kohler 24 154 03-S

Clip, cable
(Superseded to 24 154 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 2 left!

0

Kohler 24 757 01-S

Kit, solenoid (Includes solenoid seat 24 521 01-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 153 06-S, solenoid screw 24 086 07-S, & solenoid 24 435 01-S

Note: Not illustrated

$261.99

$

In Stock, only 2 left!

0

Kohler 24 757 01-S

Kit, solenoid (Includes solenoid seat 24 521 01-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 153 06-S, solenoid screw 24 086 07-S, & solenoid 24 435 01-S

Note: Call PartsTree Customer Service for more information on Kohler Parts

$261.99

$

In Stock, only 2 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$154.99

$

Usually ships in 2-5 days

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Not illustrated

$154.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

Kit, carburetor repair (Includes inlet needle valve clip 24 154 01-S, inlet needle valve 24 462 01-S, carburetor body screw 24 086 09-S, carburetor body gasket 24 041 09-S, slow O-Ring 24 153 02-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 15

Note: Not illustrated

$

$

Not available

Kohler 24 757 03-S

Kit, carburetor repair (Includes inlet needle valve clip 24 154 01-S, inlet needle valve 24 462 01-S, carburetor body screw 24 086 09-S, carburetor body gasket 24 041 09-S, slow O-Ring 24 153 02-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 15

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
