74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) AIR INTAKE/FILTRATION ASSEMBLY KOHLER ENGINE CH20S PS-64650 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

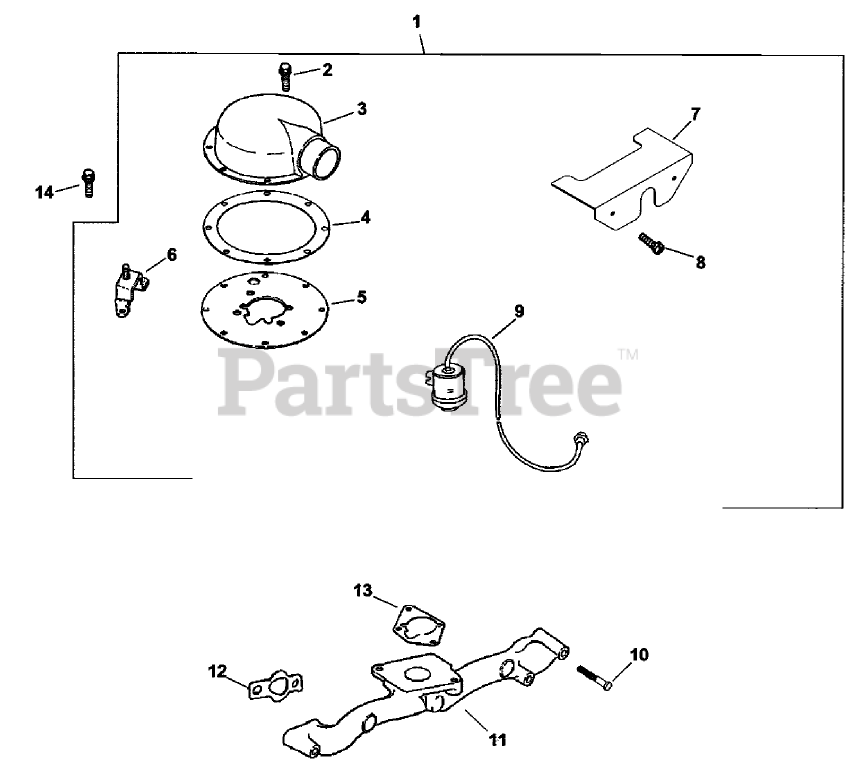

AIR INTAKE/FILTRATION ASSEMBLY KOHLER ENGINE CH20S PS-64650 Parts Diagram

  • Title

1

Kohler 24 743 28-S

Kit-Air Cleaner, Heavy Duty (Incl. Ref. # 2-9, Decal 24 113 95-S, and Carburetor Kit 24 853 75-S)

$254.99

$

Usually ships in 2-5 days

0

2

Kohler M-645016-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X16)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 20+

0

3

Kohler 24 029 28-S

Adapter-Intake, Air

$181.99

$

Usually ships in 2-5 days

0

4

Kohler 24 041 38-S

Gasket-Adapter, Air Cleaner

$10.99

$

In Stock, only 1 left!

0

5

Kohler 24 029 35-S

Plate-Adapter
(Superseded to 24 029 79-S)

$55.99

$

Usually ships in 2-5 days

0

6

Kohler 24 126 21-S

Bracket-Base, Air Cleaner
(Superseded to 24 126 206-S)

$10.99

$

In Stock, Qty 5

0

7

Kohler 24 314 25-S

Shield-Debris

$44.99

$

Usually ships in 2-5 days

0

8

Kohler 24 086 06-S

SCREW-PPH (11-16X3/4)

$2.49

$

In Stock, Qty 7

0

9

Kohler 25 755 24-S

Air Filter Gauge Kit

$96.99

$

Usually ships in 2-5 days

0

10

Kohler M-651055-S

Screw-HF
(Superseded to 25 086 84-S)

$1.99

$

In Stock, Qty 20+

0

11

Kohler 24 164 14-S

Manifold-Intake

$229.99

$

Usually ships in 2-5 days

0

12

Kohler 24 041 01-S

Gasket-Manifold, Intake
(Superseded to 24 041 79-S)

$2.99

$

In Stock, Qty 7

0

13

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

$2.49

$

In Stock, Qty 11

0

14

Kohler M-639016-S

Screw-HF (M6x1.0x16)

$2.49

$

In Stock, only 3 left!

0

Kohler 24 853 75-S

Kit-Carburetor w/ Gaskets

Note: Not illustrated

$

$

Not available

Kohler 24 113 95-S

Decal-20 HP

Note: Not illustrated

$17.99

$

In Stock, only 1 left!

0

Kohler 25 113 27-S

Decal-Cleaner, Air

Note: Not illustrated

$

$

Not available
