74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) ELECTRICAL #1 ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

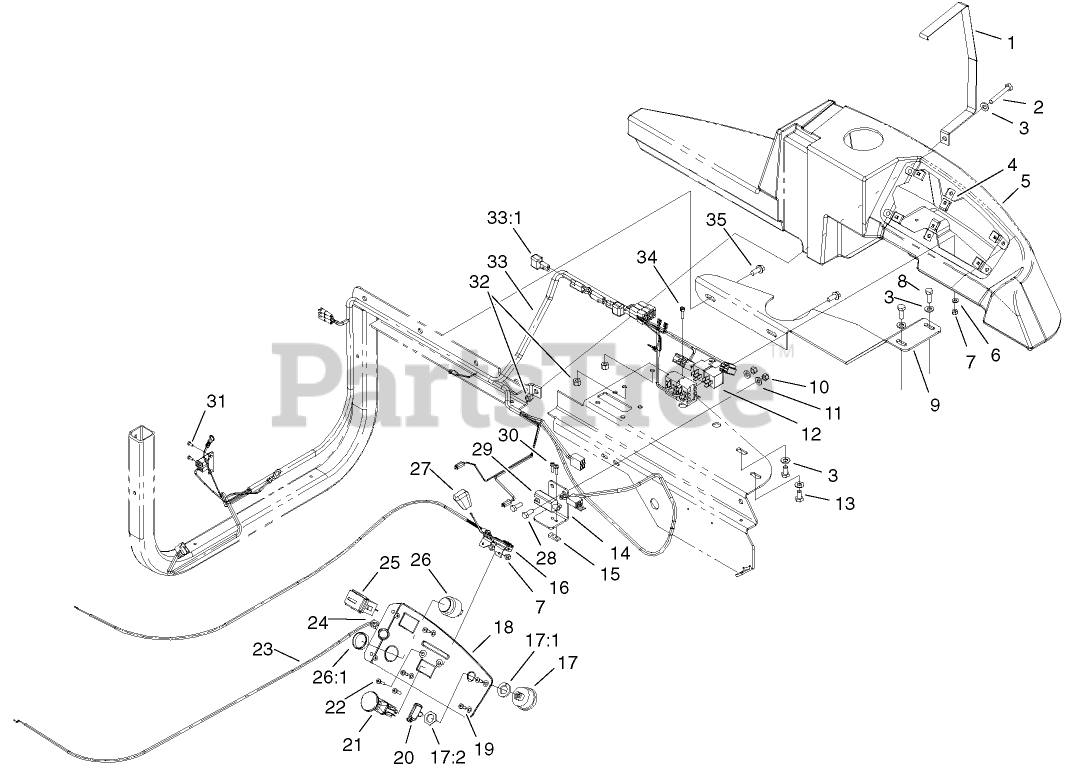

ELECTRICAL #1 ASSEMBLY Parts Diagram

  • Title

1

Toro 94-9488-03

STRAP-CONSOLE

$

$

Not available

2

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 95-1962

CLIP-TINNERMAN

$

$

Not available

5

Toro 104-0365

CONSOLE
(Superseded to 107-1870)

$

$

Not available

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 100-7792-01

PLATE-SUPPORT, CONSOLE

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 116397

RELAY

$33.99

$

In Stock, only 4 left!

0

13

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 104-7773-01

BRACKET-SWITCH

$

$

Not available

15

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 14

0

16

Toro 98-4350

THROTTLE CONTROL ASM

$75.99

$

Usually ships in 3-6 days

0

17

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

17:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

17:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

18

Toro 104-7802

Instrument Panel ASM

$

$

Not available

18:2

Toro 104-7808

Decal-Instrument

$

$

Not available

19

Toro 32144-124

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 62-7770

KEY-IGNITION

$4.99

$

In Stock, Qty 12

0

21

Toro 1-633673

SWITCH-DELTA
(Superseded to 103-5221)

$55.99

$

In Stock, Qty 20+

0

22

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

23

Toro 98-1956

CONTROL-CHOKE

$55.99

$

Usually ships in 3-6 days

0

24

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 20+

0

25

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 7

0

26

Toro 80-9330

AUDIO ALARM ASM

$139.99

$

Usually ships in 3-6 days

0

26:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

27

Toro 66-0120

KNOB

$5.99

$

In Stock, Qty 10

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 1-633111

SWITCH

$20.99

$

In Stock, Qty 20+

0

30

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

31

Toro 32144-74

SCREW-TAP

$2.99

$

Usually ships in 3-6 days

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 104-0394

HARNESS-WIRE

$

$

Not available

33:1

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

34

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

35

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0
