74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) FUEL SYSTEM ASSEMBLY KOHLER ENGINE CH20S PS-64650 Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

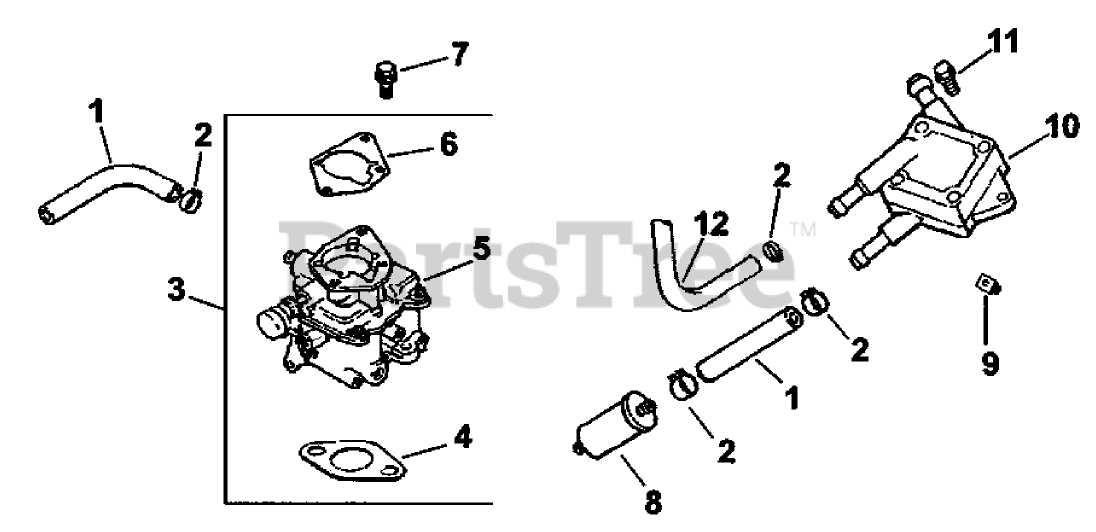

FUEL SYSTEM ASSEMBLY KOHLER ENGINE CH20S PS-64650 Parts Diagram

  • Title

1

Kohler 25 353 32-S

Line-Fuel (9.5)
(Superseded to 25 111 81-S)

$17.99

$

In Stock, only 4 left!

0

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

$4.99

$

In Stock, Qty 5

0

3

Kohler 24 853 75-S

Kit-Carburetor w/ Gasket (Incl. Ref. # 4-6)

$

$

Not available

4

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

$2.49

$

In Stock, Qty 6

0

5

Carburetor Asm

Note: Not serviced

$

$

Not available

6

Kohler 24 041 17-S

Gasket-Carburetor

$9.49

$

In Stock, Qty 11

0

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

$

$

Not available

8

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

9

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 3 left!

0

10

Kohler 24 393 16-S

PUMP-FUEL

$32.99

$

In Stock, Qty 20+

0

11

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

$

$

Not available

12

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

$8.99

$

In Stock, only 1 left!

0

Kohler 24 757 01-S

Kit-Solenoid (Includes: solenoid seat 24 521 01-S, O-Ring 24 153 04-S, O-Ring 24 153 05-S, O-Ring 24 153 06-S, solenoid screw 24 086 07-S, and solenoid 24 435 01-S)

Note: Not illustrated

$227.99

$

In Stock, only 4 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

Note: Not illustrated

$133.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

Kit-Repair, Carburetor (Includes: inlet needle valve clip 24 154 01-S, inlet needle valve 24 462 01-S, carburetor body screw 24 086 09-S, carburetor body gasket 24 041 09-S, slow jet o-ring 24 153 02-S, o-ring 24 153 04-S, o-ring 24 153 05-S, o-ring

Note: Not illustrated

$111.99

$

In Stock, Qty 6

0
