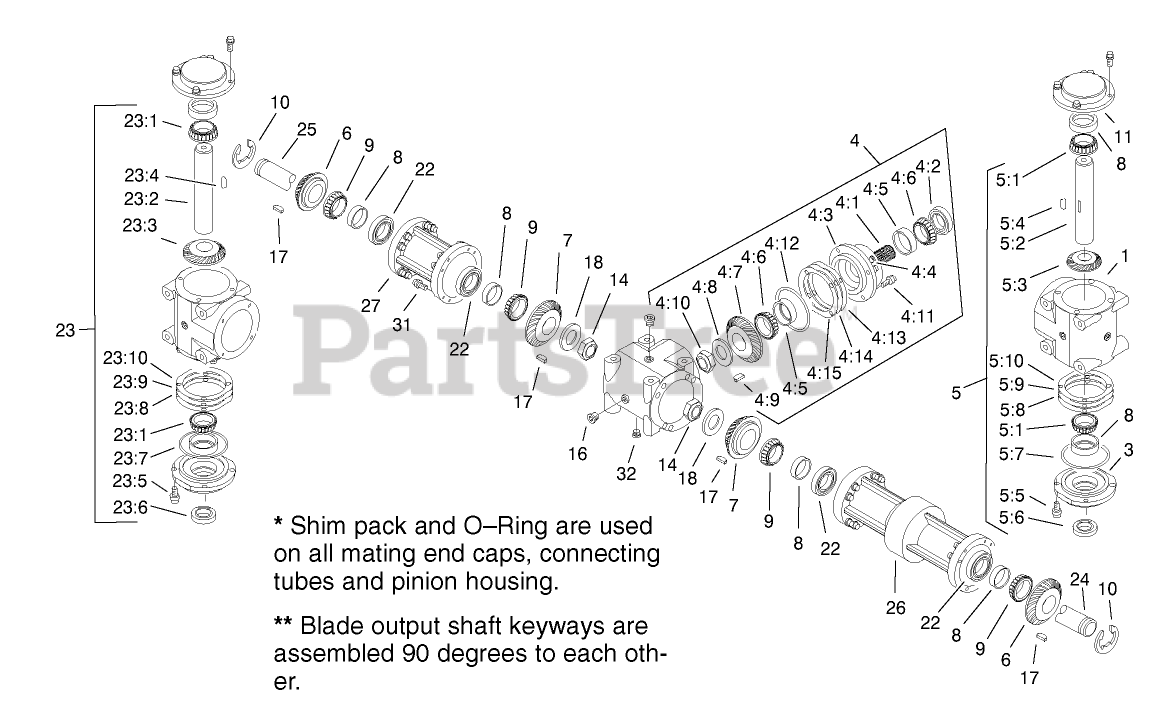

74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) GEARBOX ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

GEARBOX ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4564

CASE

$1301.99

$

Usually ships in 3-6 days

0

3

Toro 100-4566

CAP-END, OPEN

$197.99

$

Usually ships in 3-6 days

0

4

Toro 100-7755

SPLINED PINION ASM

$

$

Not available

4:1

Toro 100-4567

SHAFT - INPUT, SPLINED

$

$

Not available

4:2

Toro 100-4575

SEAL

$58.99

$

In Stock, only 2 left!

0

4:3

Toro 100-4565

HOUSING - PINION

$

$

Not available

4:4

Toro 100-4583

PLUG

$

$

Not available

4:5

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$9.99

$

In Stock, Qty 20+

0

4:6

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 10

0

4:7

Toro 100-4569

GEAR - 27 TOOTH

$

$

Not available

4:8

Toro 100-4581

WASHER

$48.99

$

Usually ships in 3-6 days

0

4:9

Toro 100-4580

KEY-WOODRUFF
(Superseded to 3257-33)

$2.49

$

In Stock, only 3 left!

0

4:10

Toro 100-4577

NUT-JAM

$

$

Not available

4:11

Toro 100-4578

SCREW

$14.99

$

Usually ships in 3-6 days

0

4:12

Toro 100-4582

O-RING

$7.49

$

In Stock, only 4 left!

0

4:13

Toro 100-4591

SHIM-BROWN, .010IN
(Superseded to 112-7034)

$21.99

$

In Stock, only 1 left!

0

4:14

Toro 100-4592

SHIM-BLUE, .005IN

$12.99

$

Usually ships in 3-6 days

0

4:15

Toro 100-4593

SHIM-GREEN, .003IN

$10.99

$

In Stock, only 1 left!

0

5

Toro 100-7754

LH SHAFT ASM

$

$

Not available

5:1

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 10

0

5:2

Toro 100-4568

SHAFT - CROSS, A/D
(Superseded to 105-6134)

$595.99

$

Usually ships in 3-6 days

0

5:3

Toro 100-4570

GEAR - 29 TOOTH

$585.99

$

Usually ships in 3-6 days

0

5:4

Toro 100-4580

KEY-WOODRUFF
(Superseded to 3257-33)

$2.49

$

In Stock, only 3 left!

0

5:5

Toro 100-4578

SCREW

$14.99

$

Usually ships in 3-6 days

0

5:6

Toro 100-4576

SEAL
(Superseded to 253-118)

$18.99

$

In Stock, Qty 20+

0

5:7

Toro 100-4582

O-RING

$7.49

$

In Stock, only 4 left!

0

5:8

Toro 100-4591

SHIM-BROWN, .010IN
(Superseded to 112-7034)

$21.99

$

In Stock, only 1 left!

0

5:9

Toro 100-4592

SHIM-BLUE, .005IN

$12.99

$

Usually ships in 3-6 days

0

5:10

Toro 100-4593

SHIM-GREEN, .003IN

$10.99

$

In Stock, only 1 left!

0

6

Toro 100-4569

GEAR - 27 TOOTH

$

$

Not available

7

Toro 100-4570

GEAR - 29 TOOTH

$585.99

$

Usually ships in 3-6 days

0

8

Toro 100-4571

Bearing-Cup
(Superseded to 254-72)

$9.99

$

In Stock, Qty 20+

0

9

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 10

0

10

Toro 100-4573

CLIP-RETAINING

$

$

Not available

11

Toro 100-4574

CAP-END, CLOSED

$246.99

$

Usually ships in 3-6 days

0

14

Toro 100-4577

NUT-JAM

$

$

Not available

16

Toro 100-4579

PLUG

$30.99

$

Usually ships in 3-6 days

0

17

Toro 100-4580

KEY-WOODRUFF
(Superseded to 3257-33)

$2.49

$

In Stock, only 3 left!

0

18

Toro 100-4581

WASHER

$48.99

$

Usually ships in 3-6 days

0

22

Toro 100-4585

SEAL

$42.99

$

Usually ships in 3-6 days

0

23

Toro 104-2427

RH Shaft ASM
(Superseded to 104-2415)

$

$

Not available

23:1

Toro 100-4572

Bearing-Cone
(Superseded to 254-94)

$9.49

$

In Stock, Qty 10

0

23:2

Toro 104-2422

SHAFT - CROSS, B/D
(Superseded to 105-6133)

$

$

Not available

23:3

Toro 100-4570

GEAR - 29 TOOTH

$585.99

$

Usually ships in 3-6 days

0

23:4

Toro 100-4580

KEY-WOODRUFF
(Superseded to 3257-33)

$2.49

$

In Stock, only 3 left!

0

23:5

Toro 100-4578

SCREW

$14.99

$

Usually ships in 3-6 days

0

23:6

Toro 100-4576

SEAL
(Superseded to 253-118)

$18.99

$

In Stock, Qty 20+

0

23:7

Toro 100-4582

O-RING

$7.49

$

In Stock, only 4 left!

0

23:8

Toro 100-4591

SHIM-BROWN, .010IN
(Superseded to 112-7034)

$21.99

$

In Stock, only 1 left!

0

23:9

Toro 100-4592

SHIM-BLUE, .005IN

$12.99

$

Usually ships in 3-6 days

0

23:10

Toro 100-4593

SHIM-GREEN, .003IN

$10.99

$

In Stock, only 1 left!

0

24

Toro 100-4587

SHAFT - CONNECTING, LONG

$

$

Not available

25

Toro 100-4588

SHAFT - CONNECTING, SHORT

$

$

Not available

26

Toro 100-4589

FLANGE - CONNECTING, LONG

$1072.99

$

Usually ships in 3-6 days

0

27

Toro 100-4590

FLANGE - CONNECTING, SHORT

$

$

Not available

31

Toro 100-4594

SCREW

$18.99

$

Usually ships in 3-6 days

0

32

Toro 100-4595

PLUG-MAGNETIC

$

$

Not available
