74195 (Z 350) - Toro 48" Z Master Zero-Turn Mower with Bagger (SN: 210000001 - 210999999) (2001) HYDRAULIC #1 ASSEMBLY Parts Diagram

48" Z Master Zero-Turn Mower with Bagger

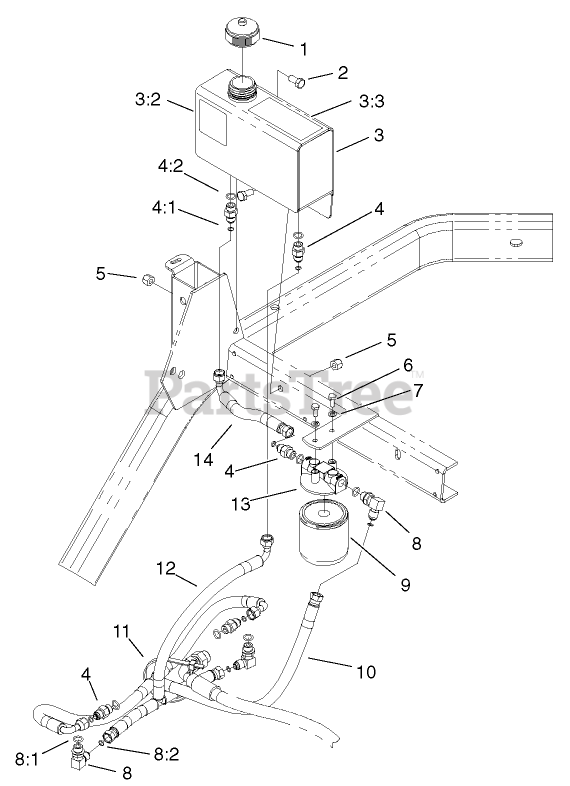

HYDRAULIC #1 ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1601

CAP-OIL

$

$

Not available

2

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

3

Toro 104-7848

HYDRAULIC TANK ASM

$953.99

$

Usually ships in 3-6 days

0

3:2

Toro 100-3952

DECAL-HOT SURFACE
(Superseded to 107-2131)

$

$

Not available

3:3

Toro 105-0863

Decal-Mobil 1

$

$

Not available

4

Toro 104-7834

ADAPTER-STRAIGHT
(Superseded to 103-2156)

$41.99

$

In Stock, only 4 left!

0

4:1

Toro 104-7838

O-RING

$

$

Not available

4:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

5

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 6

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 104-7833

ADAPTER-ELBOW, 90 DEG

$

$

Not available

8:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

8:2

Toro 104-7838

O-RING

$

$

Not available

9

Toro 1-633750

FILTER-OIL, HYD

$26.99

$

In Stock, Qty 17

0

10

Toro 104-7818

HYD HOSE ASM

$

$

Not available

11

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

12

Toro 104-7819

HYD HOSE ASM

$

$

Not available

13

Toro 104-7836

HEAD-FILTER

$18.99

$

In Stock, only 4 left!

0

14

Toro 104-7821

HYD HOSE ASM

$

$

Not available
