74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) BLOWER HOUSING & BAFFLES ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

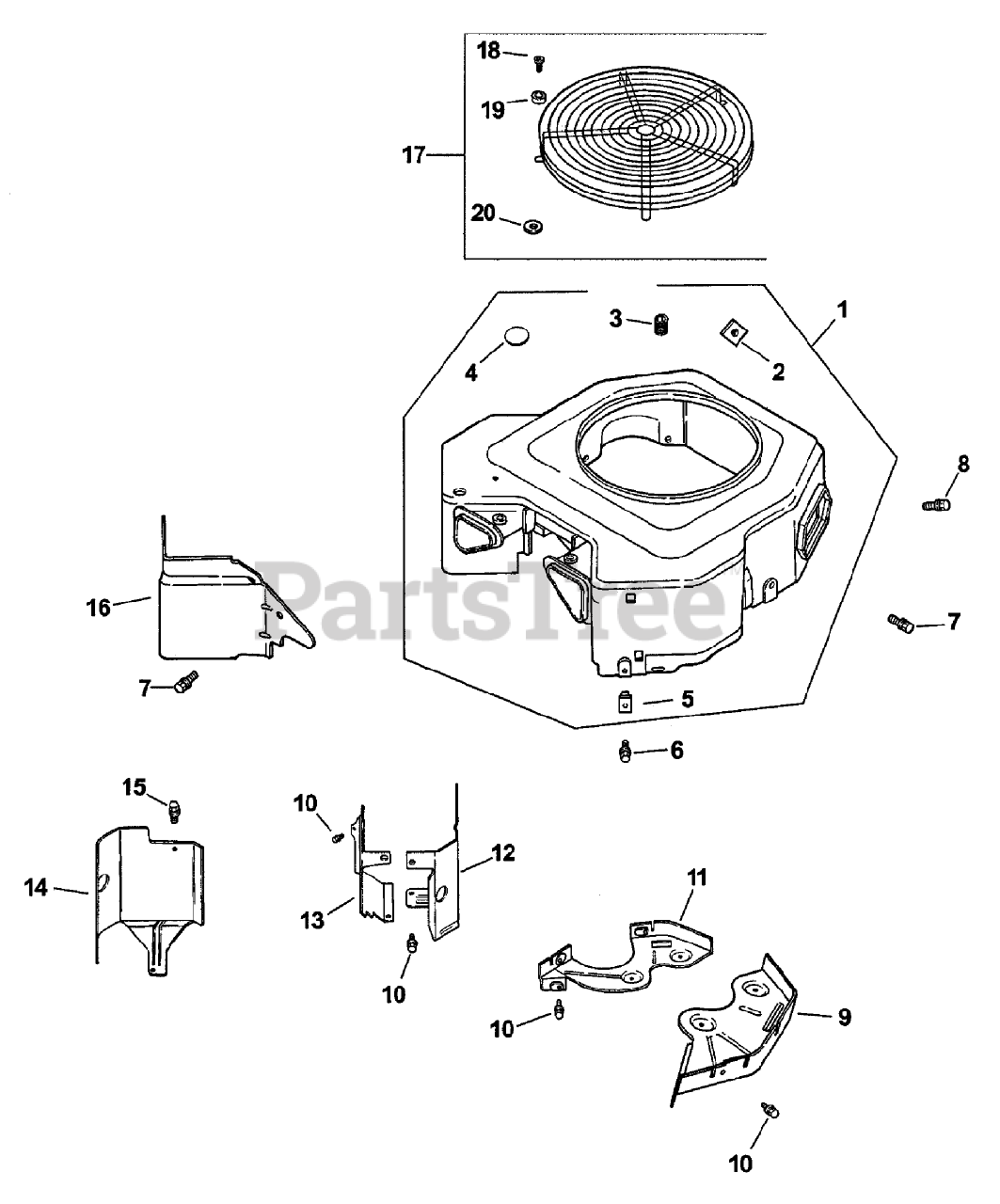

BLOWER HOUSING & BAFFLES ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

  • Title

1

Kohler 24 027 28-S

Housing, blower (Includes 2-5)
(Superseded to 24 027 184-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$178.99

$

Usually ships in 2-5 days

0

2

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

3

Kohler 25 086 43-S

Screw-Set (10-24X.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 25 139 16-S

PLUG-BUTTON (9/16)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 100 02-S

NUT-PLASTIC

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

6

Toro M-0567020-S

Screw, hex. flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

7

Toro M-0545016-S

Screw, hex. flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

8

Toro M-0551016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

9

Kohler 24 146 16-S

Plate-Backing (No. 2 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

10

Toro M-0645016-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

11

Kohler 24 146 20-S

Plate-Backing (No. 1 Side)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 24 063 20-S

Baffle-Barrel, Cylinder (No. 2 Side)
(Superseded to 24 063 88-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$28.99

$

Usually ships in 2-5 days

0

13

Kohler 24 063 23-S

Baffle, valley-#1 side
(Superseded to 24 063 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$6.49

$

In Stock, only 3 left!

0

14

Kohler 24 063 30-S

Baffle, cyl. barrel-#1
(Superseded to 24 063 85-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

Usually ships in 2-5 days

0

15

Toro M-0545010-S

Screw

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

16

Kohler 24 063 14-S

Baffle, valley-#2 side
(Superseded to 24 063 94-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 1 left!

0

17

Kohler 24 755 94-S

Kit, guard (Includes 18-20,Threaded insert Qty. 3] 24 332 01)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$86.99

$

In Stock, only 2 left!

0

18

Kohler 24 086 39-S

Screw-Head, Pan
(Superseded to 25 086 160-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 4 left!

0

19

Kohler 24 112 09-S

Spacer
(Superseded to 25 112 30-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, only 4 left!

0

20

Kohler 24 468 10-S

Washer-plain (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Not illustrated

$3.49

$

In Stock, only 4 left!

0

Kohler 24 332 01-S

INSERT-THREADED
(Superseded to 25 332 19-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 4 left!

0

Kohler 24 113 67-S

Decal, HP
(Superseded to 24 146 24-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, only 1 left!

0

Kohler 24 113 67-S

Decal, HP
(Superseded to 24 146 24-S)

Note: Not illustrated

$17.99

$

In Stock, only 1 left!

0
