74197 (Z 153) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) STARTING SYSTEM ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

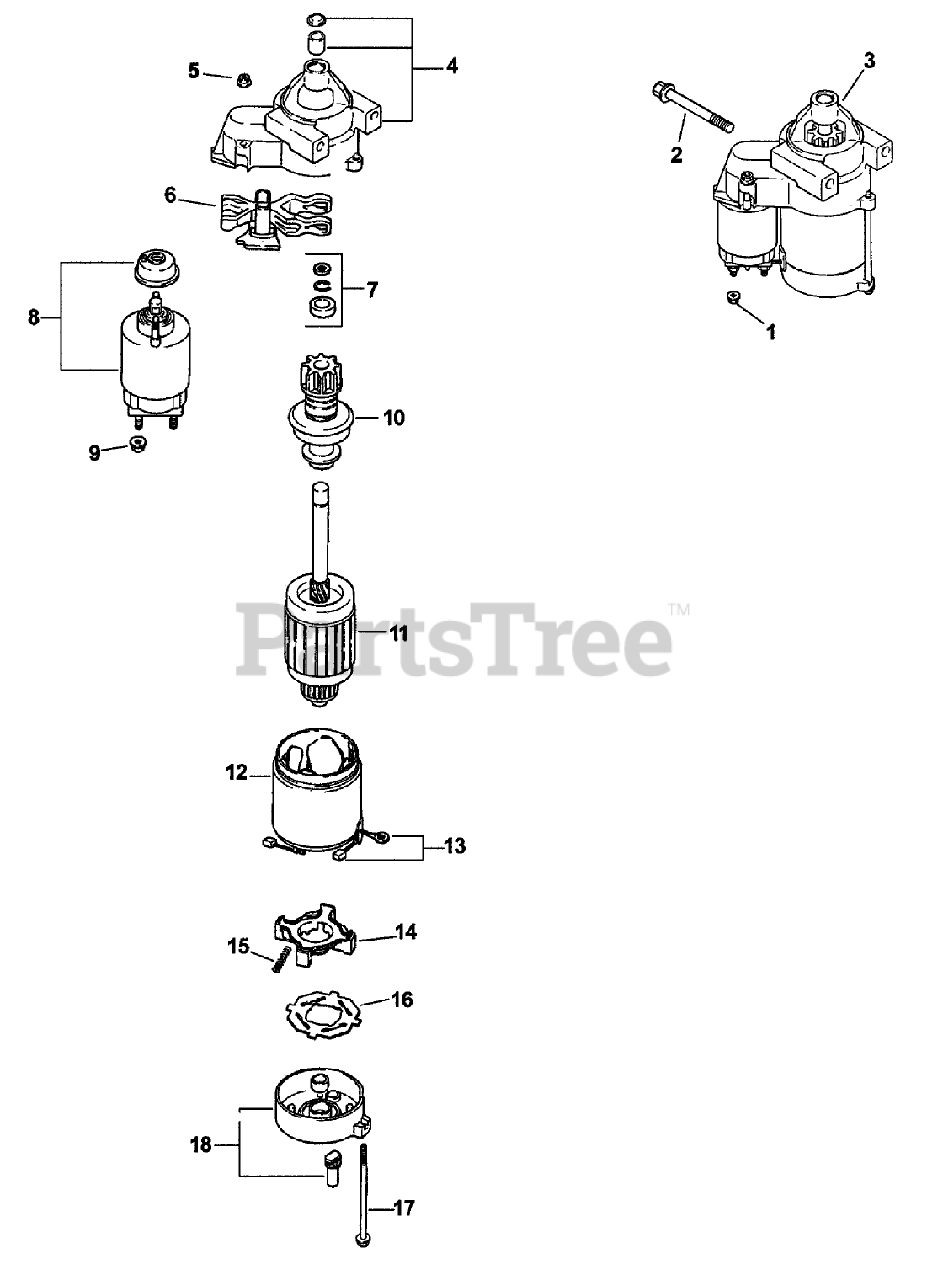

STARTING SYSTEM ASSEMBLY (CV23-75526 KOHLER) Parts Diagram

  • Title

1

Toro M-0841080-S

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

2

Toro M-0839080-S

Screw, hex. flange

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Currently unavailable

3

Kohler 12 098 03-S

Starter, solenoid shift (Includes 4-18)
(Superseded to 25 098 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

4

Kohler 12 081 02-S

CAP-END, DRIVE

Note: Call PartsTree Customer Service for more information on Kohler Parts

$431.99

$

Usually ships in 2-5 days

0

5

Kohler 52 100 10-S

Nut-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

Usually ships in 2-5 days

0

6

Kohler 12 090 10-S

LEVER-DRIVE, STARTER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$73.99

$

Usually ships in 2-5 days

0

7

Kohler 24 755 84-S

STARTER REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$61.99

$

Usually ships in 2-5 days

0

8

Kohler 52 435 02-S

Solenoid

Note: Call PartsTree Customer Service for more information on Kohler Parts

$565.99

$

Usually ships in 2-5 days

0

9

Kohler 52 100 09-S

Nut

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

Usually ships in 2-5 days

0

10

Kohler 12 239 01-S

Drive-Pinion

Note: Call PartsTree Customer Service for more information on Kohler Parts

$291.99

$

Usually ships in 2-5 days

0

11

Kohler 12 170 03-S

Armature-Starter

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler 12 471 01-S

Frame w/Brushes ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 52 221 01-S

Kit, brush (Includes 15)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$130.99

$

Usually ships in 2-5 days

0

14

Kohler 52 323 03-S

Holder-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$22.99

$

Usually ships in 2-5 days

0

15

Kohler 52 089 09-S

Spring-Brush

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.99

$

Usually ships in 2-5 days

0

16

Kohler 52 168 01-S

Insulator

Note: Call PartsTree Customer Service for more information on Kohler Parts

$35.99

$

Usually ships in 2-5 days

0

17

Kohler 52 211 05-S

Bolt-Thru

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

Usually ships in 2-5 days

0

18

Kohler 12 301 01-S

CAP-END, COMMUTATOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
