74199 (Z 148) - Toro 44" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230999999) (2003) OIL PAN AND LUBRICATION ASSEMBLY KOHLER CV493S-27520 Parts Diagram

44" Z Master Zero-Turn Mower, Side-Discharge Deck

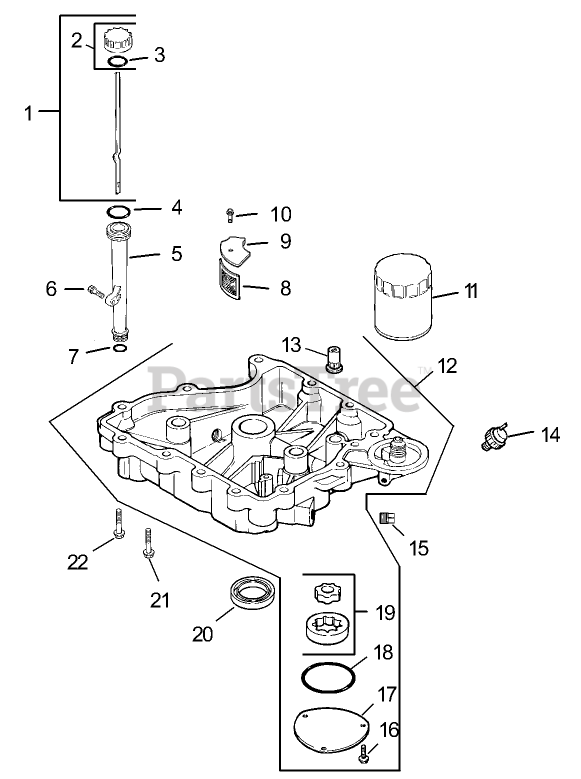

OIL PAN AND LUBRICATION ASSEMBLY KOHLER CV493S-27520 Parts Diagram

  • Title

1

Kohler 12 038 01-S

Dipstick (Includes 2, 3)

$24.99

$

In Stock, only 2 left!

0

2

Kohler 25 755 13-S

Kit, oil fill cap (Incl. 3)

$15.99

$

In Stock, only 4 left!

0

3

Kohler 25 153 02-S

O-RING

$3.49

$

In Stock, Qty 17

0

4

Kohler 12 153 02-S

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Kohler 12 123 04-S

OIL FILL TUBE KIT
(Superseded to 25 123 07-S)

$18.99

$

In Stock, only 2 left!

0

6

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

$3.49

$

In Stock, Qty 20+

0

7

Kohler 12 153 01-S

O-RING

$6.99

$

In Stock, Qty 20+

0

8

Kohler 25 162 07-S

Screen-Pickup, Oil
(Superseded to 24 162 26-S)

$18.99

$

In Stock, only 3 left!

0

9

Kohler 12 096 03-S

Cover-Screen, Oil Pickup

$13.99

$

In Stock, only 1 left!

0

10

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, Qty 20+

0

11

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

12

Kohler 12 199 50-S

Pan assembly, oil (Includes 13,16-19)

$581.99

$

Usually ships in 2-5 days

0

13

Kohler 25 462 09-S

Valve-Relief, Oil Pressure

$13.99

$

In Stock, only 2 left!

0

14

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

$29.99

$

In Stock, Qty 5

0

15

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

$2.49

$

In Stock, Qty 15

0

16

Kohler M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)
(Superseded to 25 086 398-S)

$4.49

$

In Stock, Qty 20+

0

17

Kohler 12 096 34-S

Cover-Pump, Oil

$14.99

$

In Stock, only 2 left!

0

18

Kohler 12 153 06-S

O-Ring (Oil Pump Cover)

$4.99

$

In Stock, Qty 12

0

19

Kohler 12 393 01-S

Oil Pump ASM

$

$

Not available

20

Kohler 12 032 03-S

Seal-Oil

$12.99

$

In Stock, only 1 left!

0

21

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$3.49

$

In Stock, Qty 20+

0

22

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

$3.49

$

In Stock, Qty 20+

0
