74200 (Z 252) - Toro Z Master Zero-Turn Mower, Drive Unit Only (SN: 089000001 - 089999999) (1998) FUEL TANK Parts Diagram

Z Master Zero-Turn Mower, Drive Unit Only

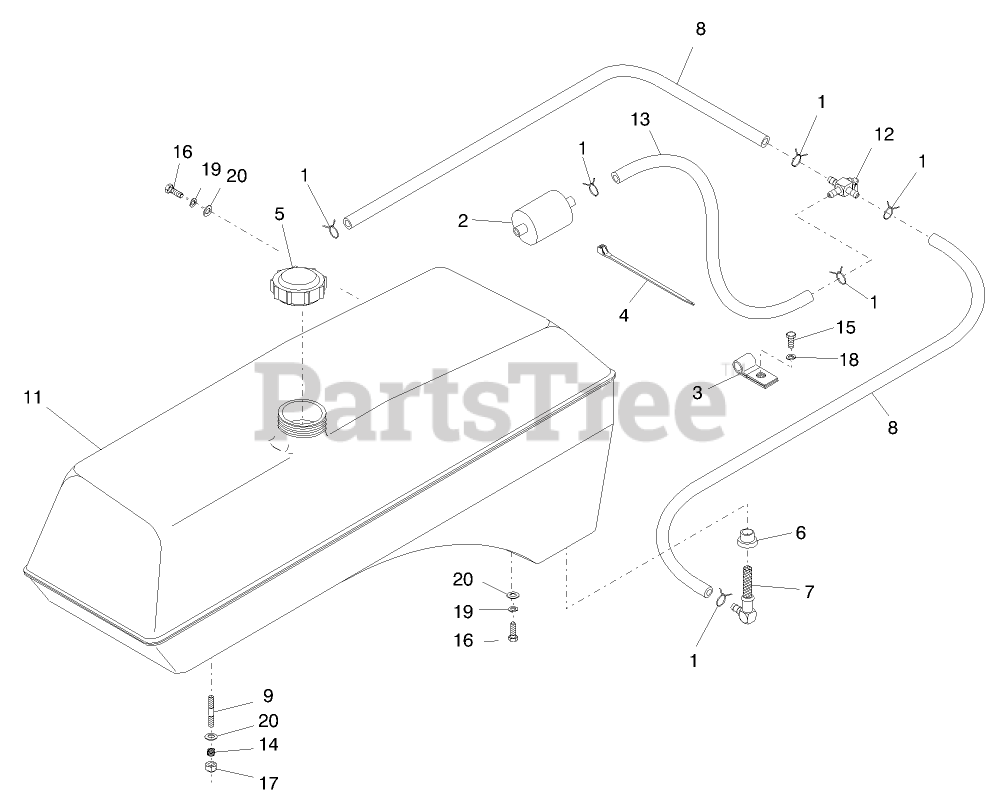

FUEL TANK Parts Diagram

  • Title

1

Toro E303077

Clamp
(Superseded to 1-303077)

$1.49

$

In Stock, Qty 20+

0

2

2405002

Filter-Fuel

$

$

Not available

3

Toro E513762

Clip
(Superseded to 1-513762)

$7.99

$

In Stock, only 1 left!

0

4

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Toro E513508

Cap-Fuel Tank
(Superseded to 1-513508)

$26.99

$

In Stock, Qty 20+

0

6

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

7

Toro E543277

Elbow
(Superseded to 1-543277)

$11.99

$

In Stock, Qty 20+

0

8

Toro E543456

Fuel Line
(Superseded to 1-543456)

$12.99

$

In Stock, Qty 7

0

9

Toro E633023

Stud
(Superseded to 1-633023)

$6.49

$

In Stock, only 3 left!

0

10

Toro E633703

Tank-Fuel LH
(Superseded to 105-3637)

$488.99

$

Usually ships in 3-6 days

0

11

Toro E633704

Tank-Fuel RH
(Superseded to 105-3638)

$

$

Not available

12

Toro E633347

Valve-Fuel Line
(Superseded to 1-633347)

$74.99

$

In Stock, Qty 10

0

13

Toro E633348

Fuel Line
(Superseded to 1-633348)

$20.99

$

In Stock, only 1 left!

0

14

Toro E633349

Spring-Fuel Tank
(Superseded to 1-633349)

$5.49

$

In Stock, Qty 9

0

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

16

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro E804256

Nut-Lock
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
