74203 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099002000 - 099004000) (1999) BAFFLE AND BELT ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

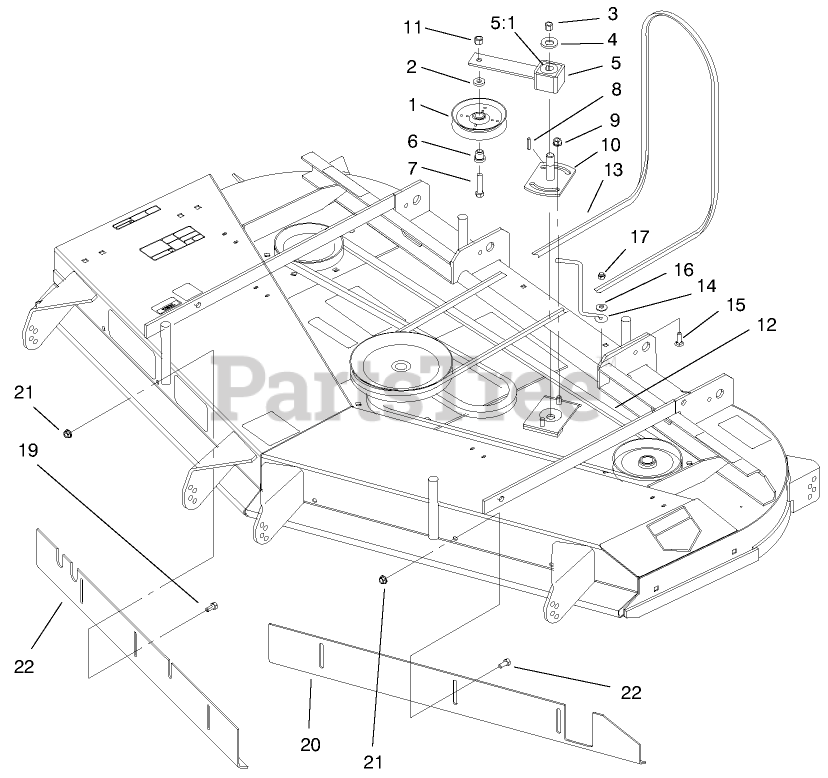

BAFFLE AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 65-5940

PULLEY-IDLER

$36.99

$

In Stock, only 1 left!

0

2

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 4 left!

0

3

Toro 3296-71

NUT-LOCK NI

$7.49

$

In Stock, only 2 left!

0

4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

5

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$134.99

$

In Stock, only 1 left!

0

5:1

Toro 27-8490

BUSHING-RUBBER

$114.99

$

Usually ships in 3-6 days

0

6

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 8

0

7

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

8

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 2 left!

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 44-6301

PLATE-IDLER, LH

$134.99

$

In Stock, only 1 left!

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

12

Toro 44-6260

V-BELT

$60.99

$

In Stock, Qty 13

0

13

Toro 98-3764

V-BELT, 62"

$98.99

$

In Stock, only 2 left!

0

14

Toro 98-3775

GUIDE - BELT

$19.99

$

Usually ships in 3-6 days

0

15

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 99-2833

Baffle-Front
(Superseded to 99-2833-03)

$146.99

$

Usually ships in 3-6 days

0

20

Toro 99-2834

Baffle-Front
(Superseded to 99-2834-03)

$146.99

$

In Stock, only 1 left!

0

21

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

22

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0
