74206 - Toro 52" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998) BELTS AND IDLER ASM Parts Diagram

52" Side-Discharge Mower Deck

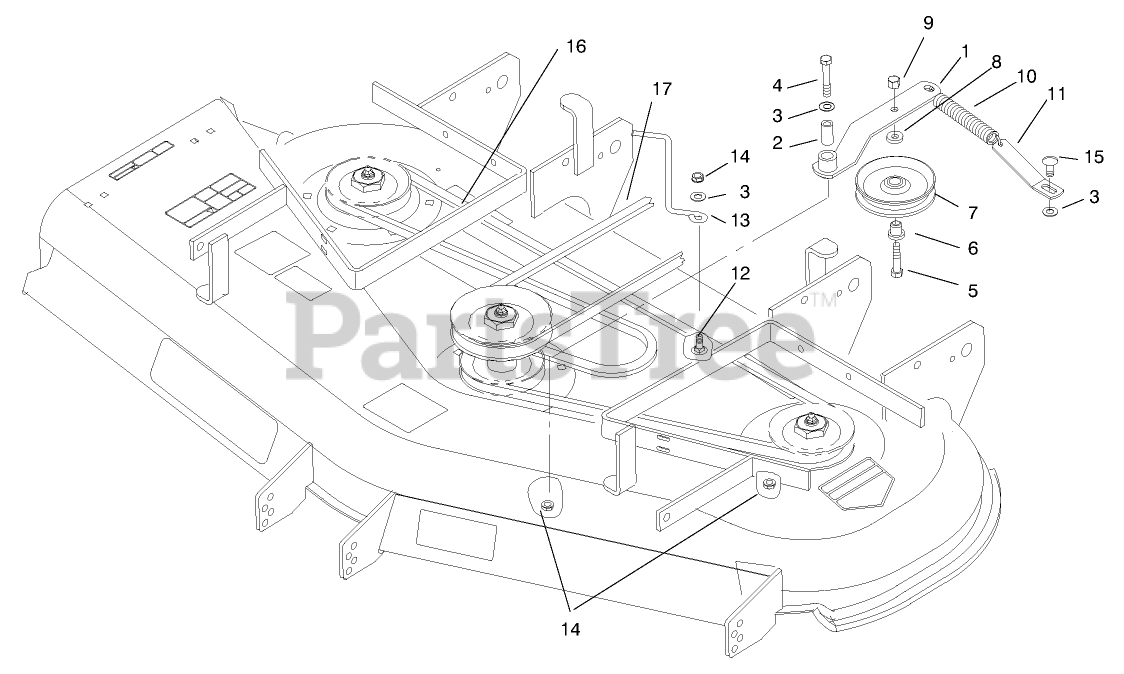

BELTS AND IDLER ASM Parts Diagram

  • Title

1

Toro 55-7640-03

IDLER ARM ASM

$110.99

$

In Stock, only 1 left!

0

2

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 13

0

5

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

6

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 8

0

7

Toro 65-5940

PULLEY-IDLER

$36.99

$

In Stock, only 1 left!

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 4 left!

0

9

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

10

Toro 51-3650

SPRING-EXTENSION

$13.99

$

In Stock, Qty 9

0

11

Toro 55-7650

PLATE-SPRING

$21.99

$

In Stock, Qty 10

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

13

Toro 98-5980

GUIDE-BELT

$81.99

$

In Stock, only 1 left!

0

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

16

Toro 27-1160

V-BELT

$55.99

$

In Stock, Qty 13

0

17

Toro 98-3780

V-BELT, DRIVE

$125.99

$

In Stock, only 1 left!

0
