74208 - Toro 62" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998) BELTS AND IDLER ASM Parts Diagram

62" Side-Discharge Mower Deck

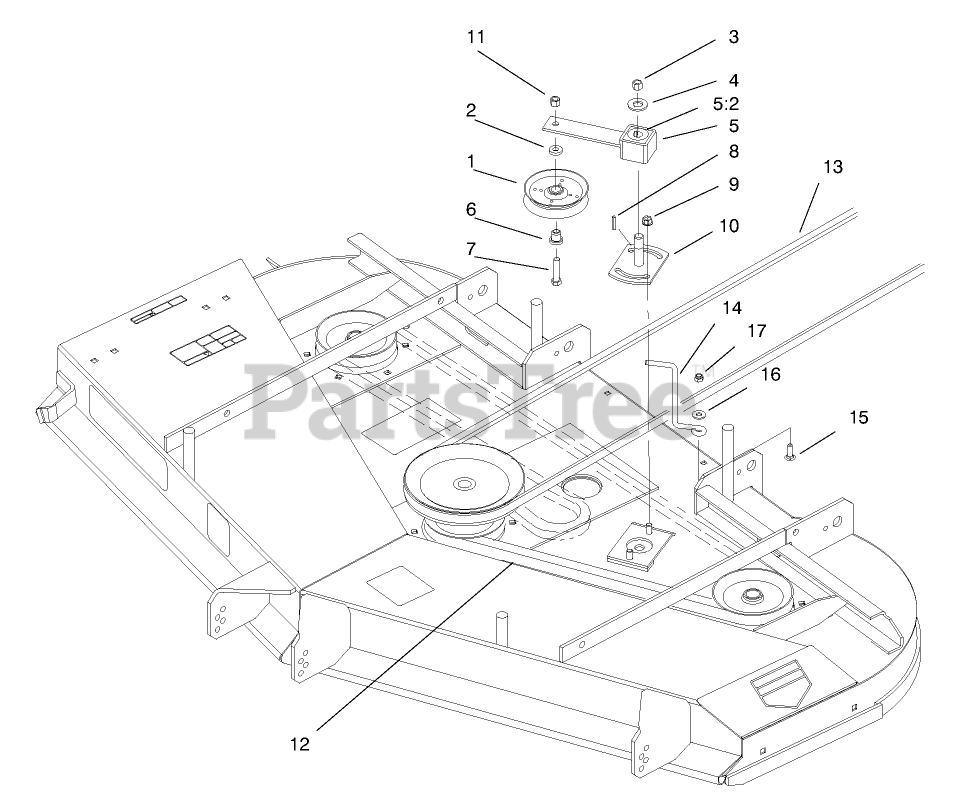

BELTS AND IDLER ASM Parts Diagram

  • Title

1

Toro 65-5940

PULLEY-IDLER

$36.99

$

Usually ships in 3-6 days

0

2

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, only 4 left!

0

3

Toro 3296-71

NUT-LOCK NI

$7.49

$

In Stock, only 2 left!

0

4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

5

Toro 27-8580

IDLER ARM ASM
(Superseded to 99-1297)

$134.99

$

In Stock, only 1 left!

0

5:2

Toro 27-8490

BUSHING-RUBBER

$114.99

$

Usually ships in 3-6 days

0

6

Toro 65-5950

BUSHING-PULLEY

$5.49

$

In Stock, Qty 18

0

7

Toro 3211-8

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

8

Toro 5-1077

KEY-SQUARE

$6.49

$

In Stock, only 1 left!

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Toro 44-6301

PLATE-IDLER, LH

$134.99

$

In Stock, only 1 left!

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

12

Toro 44-6260

V-BELT

$60.99

$

In Stock, Qty 11

0

13

Toro 98-3764

V-BELT, 62"

$98.99

$

In Stock, only 2 left!

0

14

Toro 98-3775

GUIDE - BELT

$19.99

$

Usually ships in 3-6 days

0

15

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
