74208 - Toro 62" Side-Discharge Mower Deck (SN: 089000001 - 089999999) (1998) SPINDLES, BLADES, AND DEFLECTOR Parts Diagram

62" Side-Discharge Mower Deck

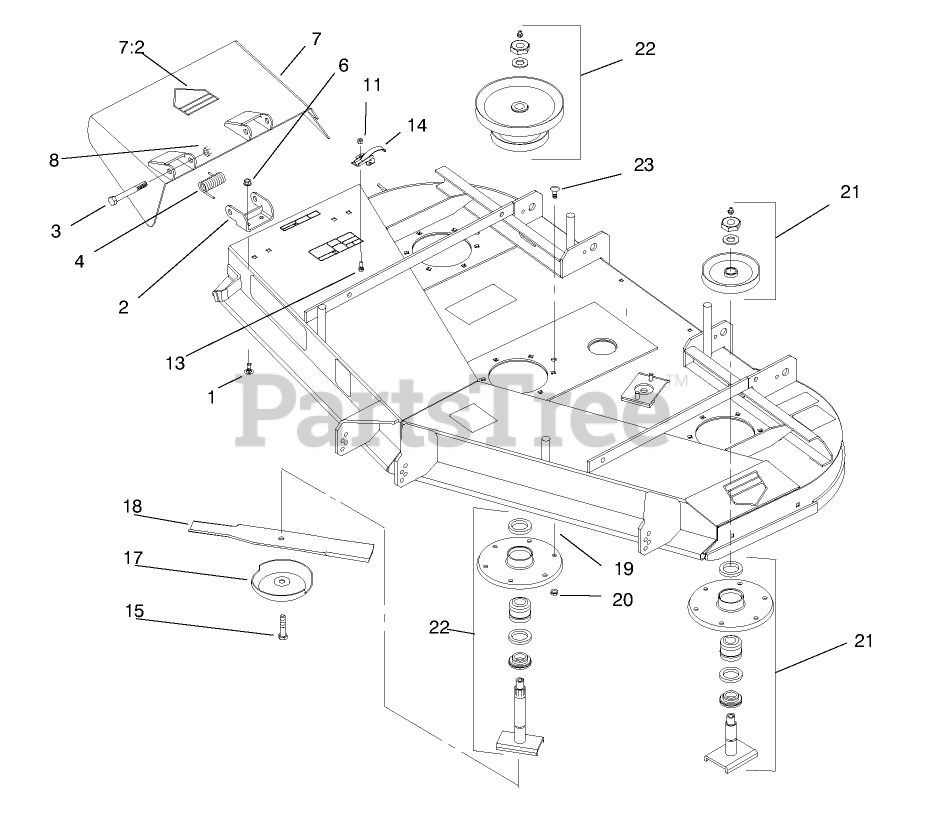

SPINDLES, BLADES, AND DEFLECTOR Parts Diagram

  • Title

1

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 3 left!

0

2

Toro 51-1530

Bracket-Hinge
(Superseded to 51-1530-01)

$38.99

$

Usually ships in 3-6 days

0

3

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 11

0

4

Toro 51-1550

SPRING

$12.99

$

In Stock, only 2 left!

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 14-0909

DEFLECTOR ASM

$383.99

$

Usually ships in 3-6 days

0

7:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

8

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

11

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

13

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0

14

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

15

Toro 92-5816

BOLT-BLADE

$7.49

$

In Stock, Qty 20+

0

17

Toro 72-9361

CUP-SCALP, ANTI

$40.99

$

In Stock, only 3 left!

0

18

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$23.99

$

In Stock, only 4 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Toro 44-6370

SPINDLE ASM

$731.99

$

Usually ships in 3-6 days

0

22

Toro 98-3755

SPINDLE HOUSING ASM

$1332.99

$

Usually ships in 3-6 days

0

23

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 12

0
