74211 (Z 252 L) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 099000001 - 099999999) (1999) ENGINE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

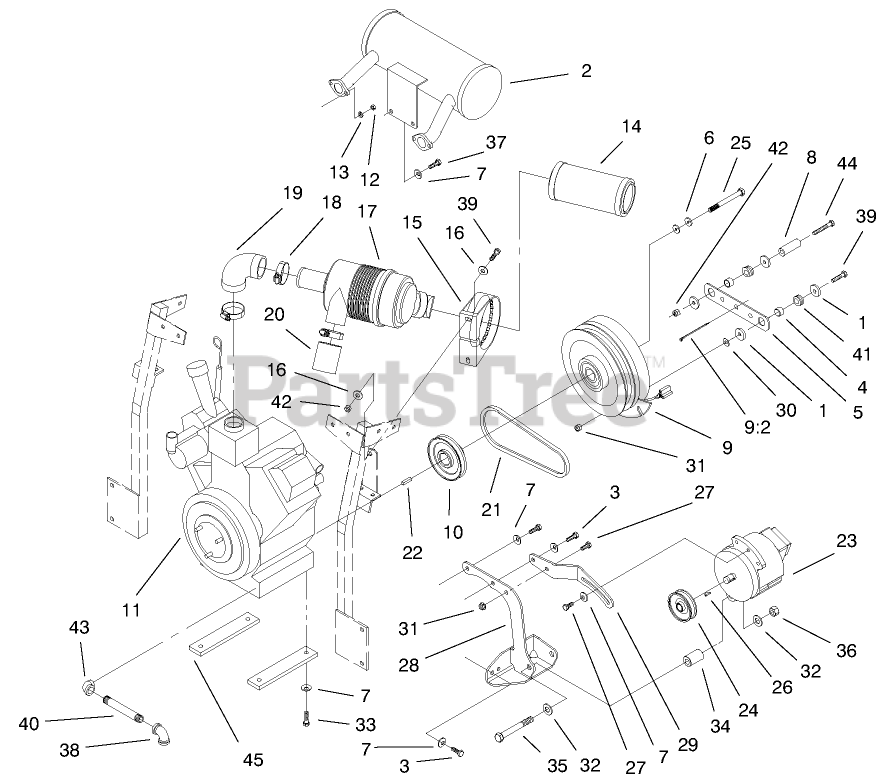

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro E613235

Washer
(Superseded to 1-613235)

$1.99

$

In Stock, Qty 20+

0

2

Toro E633832

Muffler
(Superseded to 105-1677)

$

$

Not available

3

Toro E809072

Screw-HH
(Superseded to 33114-025)

$1.99

$

In Stock, Qty 20+

0

4

Toro E633545

Spacer
(Superseded to 1-633545)

$2.99

$

In Stock, Qty 20+

0

5

Toro E633543

Strap
(Superseded to 1-633543-03)

$14.99

$

In Stock, only 4 left!

0

6

Toro E603610

Disc-Spring
(Superseded to 1-603610)

$5.49

$

In Stock, Qty 20+

0

7

Toro E303334

Washer-Lock
(Superseded to 1-303334)

$2.99

$

In Stock, Qty 7

0

8

Toro E643008

Spacer-Anchor, Clutch
(Superseded to 1-643008)

$14.99

$

Usually ships in 3-6 days

0

9

Toro E631732

Clutch
(Superseded to 103-0665)

$487.99

$

In Stock, only 4 left!

0

9:2

Toro E303335

Tie-Plastic
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

10

Toro E633841

Sheave/Hub ASM
(Superseded to 1-633841)

$88.99

$

Usually ships in 3-6 days

0

11

Toro E633892

Engine-Kawasaki FD661D
(Superseded to 1-633892)

$

$

Not available

12

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 4 left!

0

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 93-2195

FILTER
(Superseded to 108-3811)

$23.99

$

In Stock, Qty 20+

0

15

Toro 95-5806

BRACKET-MOUNTING

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-5805

AIR CLEANER ASM

$161.99

$

In Stock, only 1 left!

0

18

Toro E643009

Clamp-Hose
(Superseded to 1-643009)

$13.99

$

Usually ships in 3-6 days

0

19

Toro E643083

Hose-Air Cleaner
(Superseded to 1-643083)

$72.99

$

Usually ships in 3-6 days

0

20

Toro E643084

Hose-Inlet, Air
(Superseded to 1-643084)

$23.99

$

Usually ships in 3-6 days

0

21

Toro E633853

Belt-Alternator
(Superseded to 1-633853)

$20.99

$

In Stock, only 4 left!

0

22

Toro E807259

Key
(Superseded to 1-807259)

$2.99

$

In Stock, Qty 13

0

23

Toro E633881

Alternator
(Superseded to 1-633881)

$782.99

$

Usually ships in 3-6 days

0

23:1

Toro E643158

Regulator-Alternator
(Superseded to 1-643158)

Note: Not illustrated

$

$

Not available

23:2

Toro E643159

Brushes-Alternator
(Superseded to 1-643159)

Note: Not illustrated

$88.99

$

Usually ships in 3-6 days

0

24

Toro E633882

Sheave-Alternator
(Superseded to 1-633882)

$

$

Not available

25

Toro E809096

Screw-HH
(Superseded to 48-7570)

$9.49

$

In Stock, only 1 left!

0

26

Toro E807004

Key
(Superseded to 3257-24)

$5.49

$

Usually ships in 3-6 days

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro E632835

Bracket-Alternator
(Superseded to 1-632835-03)

$

$

Not available

29

Toro E633838

Arm-Tension, Alt.
(Superseded to 1-633838-03)

$

$

Not available

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro E809018

Screw-HH
(Superseded to 33114-030)

$1.49

$

Usually ships in 3-6 days

0

34

Toro E633839

Spacer
(Superseded to 1-633839)

$

$

Not available

35

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 11

0

36

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

37

Toro E809026

Screw-HH
(Superseded to 33114-016)

$0.99

$

In Stock, Qty 8

0

38

Toro E303428

Elbow
(Superseded to 1-303428)

$14.99

$

Usually ships in 3-6 days

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro E643167

Nipple
(Superseded to 1-643167)

$

$

Not available

41

Toro E633630

Grommet
(Superseded to 1-633630)

$5.49

$

In Stock, Qty 20+

0

42

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

43

Toro E403124

Elbow Street
(Superseded to 1-403124)

$26.99

$

Usually ships in 3-6 days

0

44

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

45

Toro E643007

Spacer-Engine
(Superseded to 1-643007-03)

$

$

Not available
