74211 (Z 252 L) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

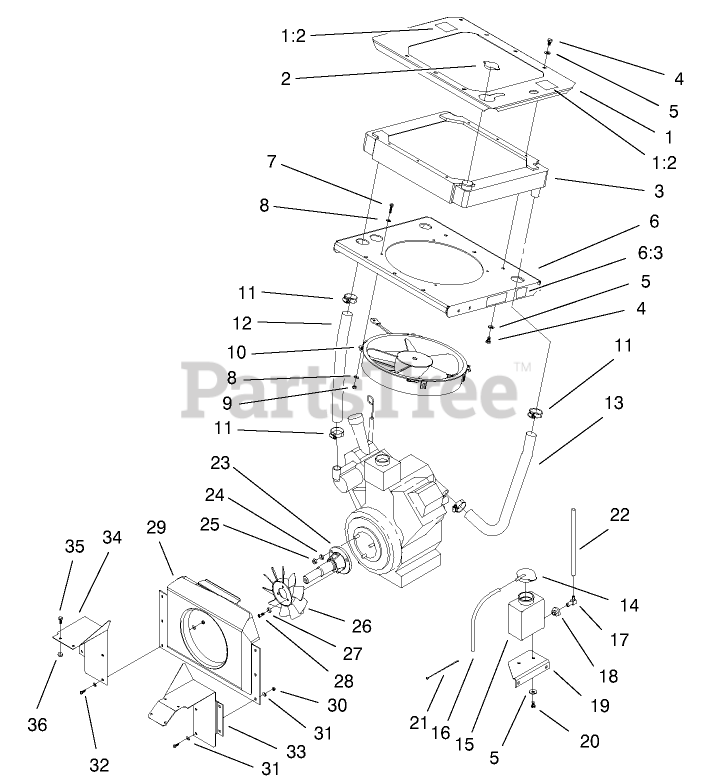

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 99-4645

RADIATOR TRIM PLATE ASM

$

$

Not available

1:2

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

2

Toro E643161

Cap-Radiator
(Superseded to 1-643161)

$82.99

$

In Stock, only 4 left!

0

3

Toro E641327

Radiator ASM
(Superseded to 1-641327)

$

$

Not available

4

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 99-4644

FAN MOUNTING PLATE ASM

$

$

Not available

6:3

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

7

Toro E803067

Screw
(Superseded to 1-803067)

$1.49

$

Usually ships in 3-6 days

0

8

Toro E805254

Washer-Flat
(Superseded to 3256-16)

$0.99

$

In Stock, Qty 20+

0

9

Toro E804254

Nut-HH NI
(Superseded to 1-804254)

$1.49

$

In Stock, Qty 20+

0

10

Toro E633831

Fan ASM-High Profile
(Superseded to 1-633831)

$564.99

$

Usually ships in 3-6 days

0

11

Toro E633989

Clamp-Hose
(Superseded to 2412-34)

$2.49

$

In Stock, only 1 left!

0

12

Toro E633894

Hose-Inlet, Radiator
(Superseded to 1-633894)

$83.99

$

Usually ships in 3-6 days

0

13

Toro E633895

Hose-Return, Radiator
(Superseded to 1-633895)

$90.99

$

Usually ships in 3-6 days

0

14

Toro E643164

Cap-Tank, Overflow
(Superseded to 1-643164)

$19.99

$

Usually ships in 3-6 days

0

15

Toro E643163

Tank-Overflow
(Superseded to 1-643163)

$94.99

$

In Stock, only 1 left!

0

16

Toro E643131

Hose
(Superseded to 109-2669)

$11.99

$

In Stock, only 3 left!

0

17

Toro E643259

Elbow-90 Degree
(Superseded to 46-6550)

$40.99

$

Usually ships in 3-6 days

0

17:2

Toro 93-2195

FILTER
(Superseded to 108-3811)

Note: Not illustrated

$23.99

$

In Stock, Qty 20+

0

17:3:1

Toro E643283

Latch-Air Cleaner
(Superseded to 1-643283)

Note: Not illustrated

$21.99

$

Usually ships in 3-6 days

0

17:3

Toro 94-3652

COVER ASM

Note: Not illustrated

$96.99

$

In Stock, only 3 left!

0

17:4

Toro 87-9400

VALVE-VACUATOR

Note: Not illustrated

$12.99

$

In Stock, Qty 10

0

18

Toro E513645

Bushing
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

19

Toro E643024

Bracket-Bottle
(Superseded to 1-643024-03)

$

$

Not available

20

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

21

Toro E303287

Tie-Plastic
(Superseded to 1-303287)

$1.49

$

Usually ships in 3-6 days

0

22

Toro E643129

Hose
(Superseded to 1-643129)

$

$

Not available

23

Toro E633851

Extension-Crankshaft
(Superseded to 1-633851)

$287.99

$

Usually ships in 3-6 days

0

23:1

Toro E643158

Regulator-Alternator
(Superseded to 1-643158)

Note: Not illustrated

$

$

Not available

23:2

Toro E643159

Brushes-Alternator
(Superseded to 1-643159)

Note: Not illustrated

$88.99

$

Usually ships in 3-6 days

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

26

Toro E633869

Fan-Cooling, Pump
(Superseded to 1-633869)

$27.99

$

In Stock, only 1 left!

0

27

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro E809095

Screw-HSH
(Superseded to 1-809095)

$2.99

$

Usually ships in 3-6 days

0

29

Toro E633854

Shroud-Cooling Fan, Pump
(Superseded to 1-633854)

$

$

Not available

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro E803028

Screw
(Superseded to 3290-500)

$1.49

$

In Stock, Qty 20+

0

33

Toro E643143

Shield-LH
(Superseded to 103-0895-03)

$

$

Not available

34

Toro E633794

Shield-RH
(Superseded to 1-633794-03)

$

$

Not available

35

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0
