74212 (Z 252 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) SPINDLE AND PULLEY ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

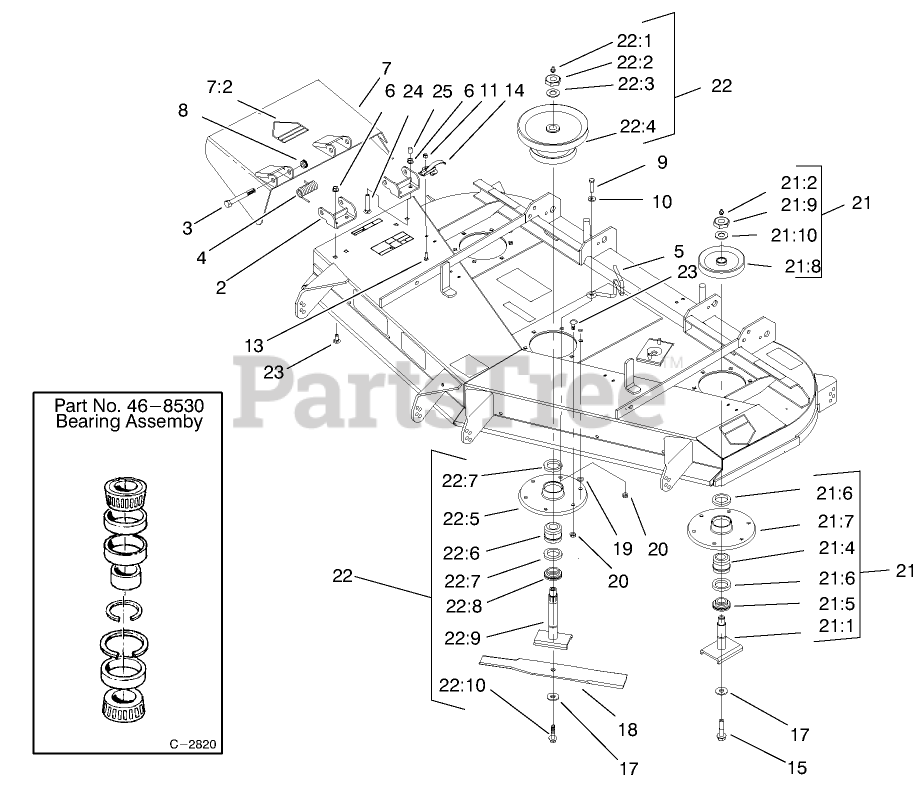

SPINDLE AND PULLEY ASSEMBLY Parts Diagram

  • Title

2

Toro 51-1530-01

HINGE BRACKET ASM

$39.99

$

Usually ships in 3-6 days

0

3

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 7

0

4

Toro 51-1550

SPRING

$12.99

$

In Stock, only 2 left!

0

5

Toro 99-8933

GUIDE-BELT

$91.99

$

In Stock, only 1 left!

0

6

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

7

Toro 14-0909

DEFLECTOR ASM

$384.99

$

Usually ships in 3-6 days

0

7:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

8

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 9

0

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

11

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

13

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

14

Toro 249-21

CLAMP-SLOTTED

$21.99

$

In Stock, only 3 left!

0

15

Toro 92-5816

BOLT-BLADE

$7.99

$

In Stock, Qty 17

0

17

Toro E513435

Washer-Flat
(Superseded to 1-513435)

$5.99

$

In Stock, only 4 left!

0

18

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$25.99

$

In Stock, only 3 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Toro 99-4640

OUTER SPINDLE ASM

$429.99

$

Usually ships in 3-6 days

0

21:1

Toro 27-0920

SHAFT

$180.99

$

In Stock, only 1 left!

0

21:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

21:4

Toro 46-8530

BEARING ASM

$107.99

$

In Stock, only 4 left!

0

21:5

Toro 27-0950

SPACER

$34.99

$

In Stock, only 2 left!

0

21:6

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 5

0

21:7

Toro 61-4160

HOUSING-SPINDLE

$149.99

$

In Stock, only 2 left!

0

21:8

Toro 99-4614

PULLEY AND HUB ASM

$193.99

$

Usually ships in 3-6 days

0

21:9

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21:10

Toro 7-4150

WASHER

$1.49

$

In Stock, only 2 left!

0

22

Toro 99-4944

Middle Spindle ASM
(Superseded to 105-1688)

$507.99

$

In Stock, only 1 left!

0

22:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

22:2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

22:3

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 9

0

22:4

Toro 99-4939-03

Pulley & Hub ASM
(Superseded to 99-4939)

$129.99

$

In Stock, only 1 left!

0

22:5

Toro 61-4160

HOUSING-SPINDLE

$149.99

$

In Stock, only 2 left!

0

22:6

Toro 46-8530

BEARING ASM

$107.99

$

In Stock, only 4 left!

0

22:7

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 5

0

22:8

Toro 27-0950

SPACER

$34.99

$

In Stock, only 2 left!

0

22:9

Toro 51-3551

Shaft-Spindle
(Superseded to 105-1686)

$230.99

$

In Stock, only 2 left!

0

22:10

Toro 92-5816

BOLT-BLADE

$7.99

$

In Stock, Qty 17

0

23

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

24

Toro 3231-33

SCREW-CARR

$5.99

$

Usually ships in 3-6 days

0

25

Toro 105316

CAP-ROD, PLUNGER

$1.99

$

In Stock, Qty 20+

0
