74213 (Z 287 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230000001 - 230006000) (2003) DECK, PULLEY AND DEFLECTOR ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

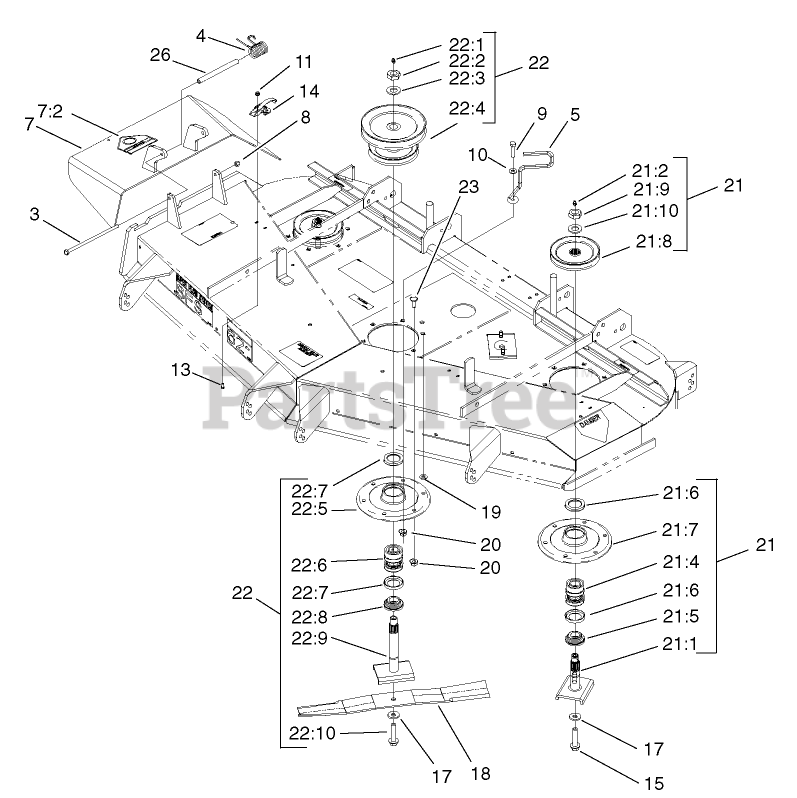

DECK, PULLEY AND DEFLECTOR ASSEMBLY Parts Diagram

  • Title

3

Toro 322-50

SCREW-HH

$6.99

$

In Stock, only 4 left!

0

4

Toro 104-8554

SPRING-TORSION

$26.99

$

Usually ships in 3-6 days

0

5

Toro 99-8933

GUIDE-BELT

$91.99

$

In Stock, only 1 left!

0

7

Toro 105-3605

Deflector ASM

$256.99

$

Usually ships in 3-6 days

0

7:2

Toro 93-1122

DECAL-DANGER

$10.99

$

In Stock, Qty 10

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

11

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

13

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

14

Toro 249-21

CLAMP-SLOTTED

$21.99

$

In Stock, only 3 left!

0

15

Toro 92-5816

BOLT-BLADE

$7.99

$

In Stock, Qty 17

0

17

Toro 1-513435

WASHER-SPRING

$5.99

$

In Stock, only 4 left!

0

18

Toro 44-6250

Blade
(Superseded to 44-6250-03)

$25.99

$

In Stock, only 3 left!

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

21

Toro 99-4640

OUTER SPINDLE ASM

$429.99

$

Usually ships in 3-6 days

0

21:1

Toro 27-0920

SHAFT

$180.99

$

In Stock, only 1 left!

0

21:2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

21:4

Toro 46-8530

BEARING ASM

$107.99

$

In Stock, only 4 left!

0

21:5

Toro 27-0950

SPACER

$34.99

$

In Stock, only 2 left!

0

21:6

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 5

0

21:7

Toro 61-4160

HOUSING-SPINDLE

$149.99

$

In Stock, only 2 left!

0

21:8

Toro 99-4614

PULLEY AND HUB ASM

$193.99

$

Usually ships in 3-6 days

0

21:9

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

21:10

Toro 7-4150

WASHER

$1.49

$

In Stock, only 2 left!

0

22

Toro 105-1689

SPINDLE HOUSING ASM

$495.99

$

In Stock, only 1 left!

0

22:1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 4 left!

0

22:2

Toro 32146-20

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

22:3

Toro 92-5836

WASHER

$6.49

$

In Stock, Qty 9

0

22:4

Toro 100-4307

PULLEY/HUB ASM

$241.99

$

Usually ships in 3-6 days

0

22:5

Toro 61-4160

HOUSING-SPINDLE

$149.99

$

In Stock, only 2 left!

0

22:6

Toro 46-8530

BEARING ASM

$107.99

$

In Stock, only 4 left!

0

22:7

Toro 253-139

SEAL-OIL

$14.99

$

In Stock, Qty 5

0

22:8

Toro 27-0950

SPACER

$34.99

$

In Stock, only 2 left!

0

22:9

Toro 105-1686

SPINDLE SHAFT ASM

$230.99

$

In Stock, only 2 left!

0

22:10

Toro 92-5816

BOLT-BLADE

$7.99

$

In Stock, Qty 17

0

23

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 105-4622

SPACER

$11.99

$

In Stock, only 2 left!

0
