74214 (Z 287 L) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) DECK ASSEMBLY NO. 105-1698 Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

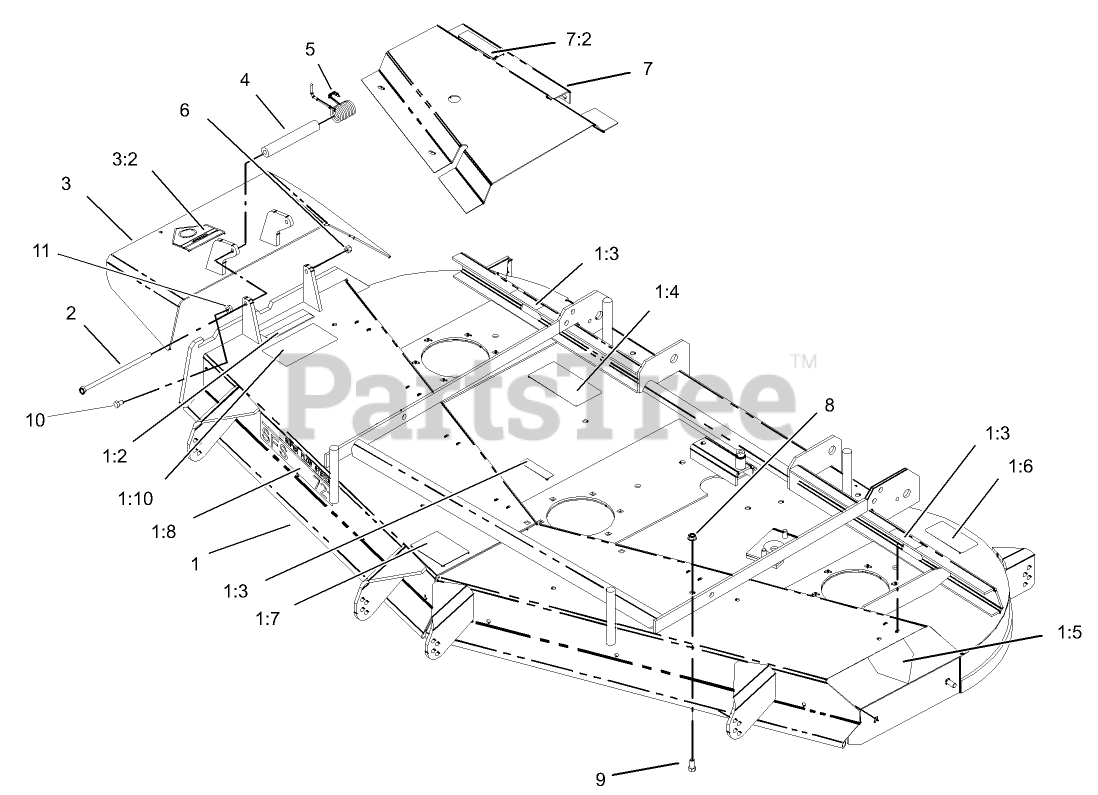

DECK ASSEMBLY NO. 105-1698 Parts Diagram

  • Title

1

Deck ASM

Note: Not serviced separately

$

$

Not available

1:2

Toro 104-8569

DECAL-WARNING

$

$

Not available

1:3

Toro 98-5954

DECAL-COVER, MISSING

$8.49

$

In Stock, Qty 10

0

1:4

Toro 99-4686

DECAL-ROUTING, BELT

$15.99

$

In Stock, only 2 left!

0

1:5

Toro 43-8480

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$11.99

$

In Stock, only 2 left!

0

1:7

Toro 98-3798

DECAL-WHEEL, GAGE

$13.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-5995

DECAL-DECK

$

$

Not available

1:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

2

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

3

Toro 105-3605

Deflector ASM

$200.99

$

Usually ships in 3-6 days

0

3:2

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 16

0

4

Toro 105-4622

SPACER

$10.99

$

In Stock, Qty 5

0

5

Toro 104-8554

SPRING-TORSION

$23.99

$

In Stock, only 1 left!

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 100-6527

RH COVER W/DECAL ASM

$301.99

$

Usually ships in 3-6 days

0

7:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

8

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

9

Toro 323-2

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

10

Toro 322-1

SCREW-HH

$0.99

$

In Stock, Qty 10

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
