74216 (Z 283 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) ENGINE ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

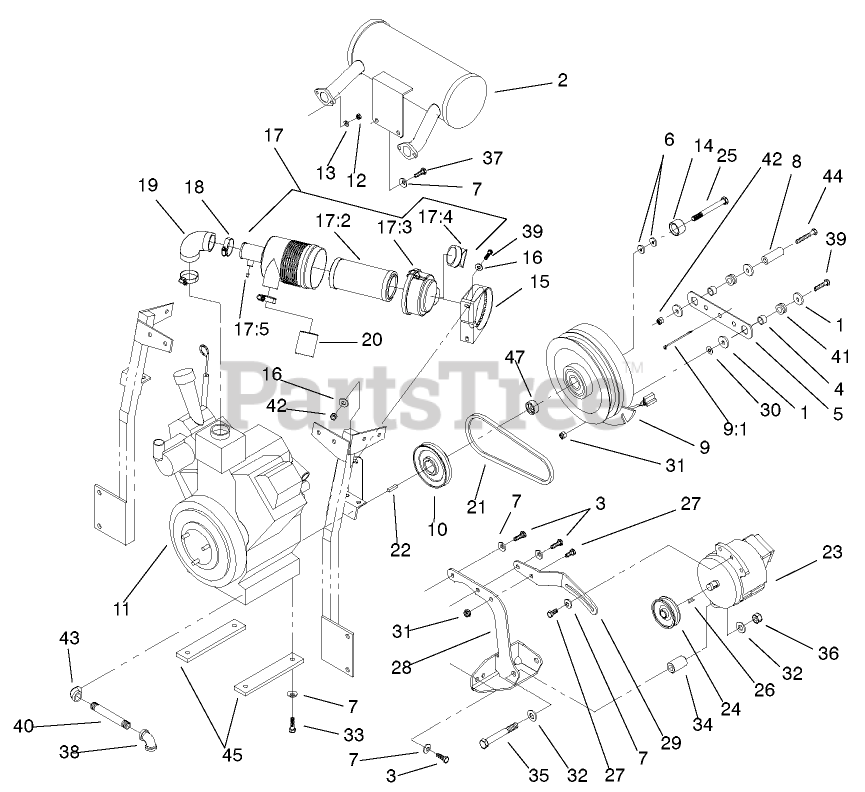

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 1-613235

WASHER

$1.99

$

In Stock, Qty 20+

0

2

Toro 1-633832

Muffler
(Superseded to 105-1677)

$

$

Not available

3

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

4

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

5

Toro 1-633543-03

STRAP-CLUTCH, BRAKE

$14.99

$

In Stock, only 4 left!

0

6

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

7

Toro 1-303334

WASHER-SPRING

$2.99

$

In Stock, Qty 7

0

8

Toro 1-643008

SPACER-ANCHOR, CLUTCH

$14.99

$

Usually ships in 3-6 days

0

9

Toro 103-0665

CLUTCH ASM

$487.99

$

In Stock, only 4 left!

0

9:1

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 14

0

10

Toro 1-633841

SHEAVE W/HUB

$88.99

$

Usually ships in 3-6 days

0

11

Engine-Kawasaki, Fd661d As03

Note: Not serviced

$

$

Not available

12

Toro 33013-00

NUT-HEX

$2.49

$

In Stock, only 4 left!

0

13

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

14

Toro 103-0152

KEEPER-CLUTCH

$12.99

$

In Stock, only 3 left!

0

15

Toro 95-5806

BRACKET-MOUNTING

$28.99

$

Usually ships in 3-6 days

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 95-5805

AIR CLEANER ASM

$161.99

$

In Stock, only 1 left!

0

17:2

Toro 93-2195

FILTER
(Superseded to 108-3811)

$23.99

$

In Stock, Qty 20+

0

17:3

Toro 94-3652

COVER ASM

$96.99

$

In Stock, only 4 left!

0

17:4

Toro 94-1414

VALVE-VACUATOR

$

$

Currently unavailable

17:5

Toro 285-17

PLUG-PIPE

$2.99

$

Usually ships in 3-6 days

0

18

Toro 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

19

Toro 1-643083

HOSE-AIRCLEANER

$72.99

$

Usually ships in 3-6 days

0

20

Toro 1-643084

HOSE-INLET, AIR

$23.99

$

Usually ships in 3-6 days

0

21

Toro 1-633853

BELT,ALTERNATOR DRIVE

$20.99

$

In Stock, only 4 left!

0

22

Toro 1-807259

KEY

$2.99

$

In Stock, Qty 13

0

23

Toro 1-633881

ALTERNATOR-37 AMP

$782.99

$

Usually ships in 3-6 days

0

24

Toro 1-633882

SHEAVE-ALTERNATOR

$

$

Not available

25

Toro 48-7570

SCREW-HH

$9.49

$

In Stock, only 1 left!

0

26

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 1-632835-03

BRACKET-ALTERNATOR

$

$

Not available

29

Toro 1-633838-03

ARM-TENSION, ALTERNATOR

$

$

Not available

30

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

32

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 1-633839

SPACER

$

$

Not available

35

Toro 325-17

SCREW-HH

$5.99

$

In Stock, Qty 11

0

36

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0

38

Toro 1-303428

ELBOW-90 DEG

$14.99

$

Usually ships in 3-6 days

0

39

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

40

Toro 1-643167

NIPPLE

$

$

Not available

41

Toro 1-633630

GROMMET

$5.49

$

In Stock, Qty 20+

0

42

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

43

Toro 1-403124

ELBOW-90 DEG

$26.99

$

Usually ships in 3-6 days

0

44

Toro 322-38

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

45

Toro 1-643007-03

SPACER-ENGINE

$

$

Not available

47

Toro 103-0114

SPACER-CLUTCH

$33.99

$

Usually ships in 3-6 days

0
