74216 (Z 283 L) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) REAR BUMPER ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

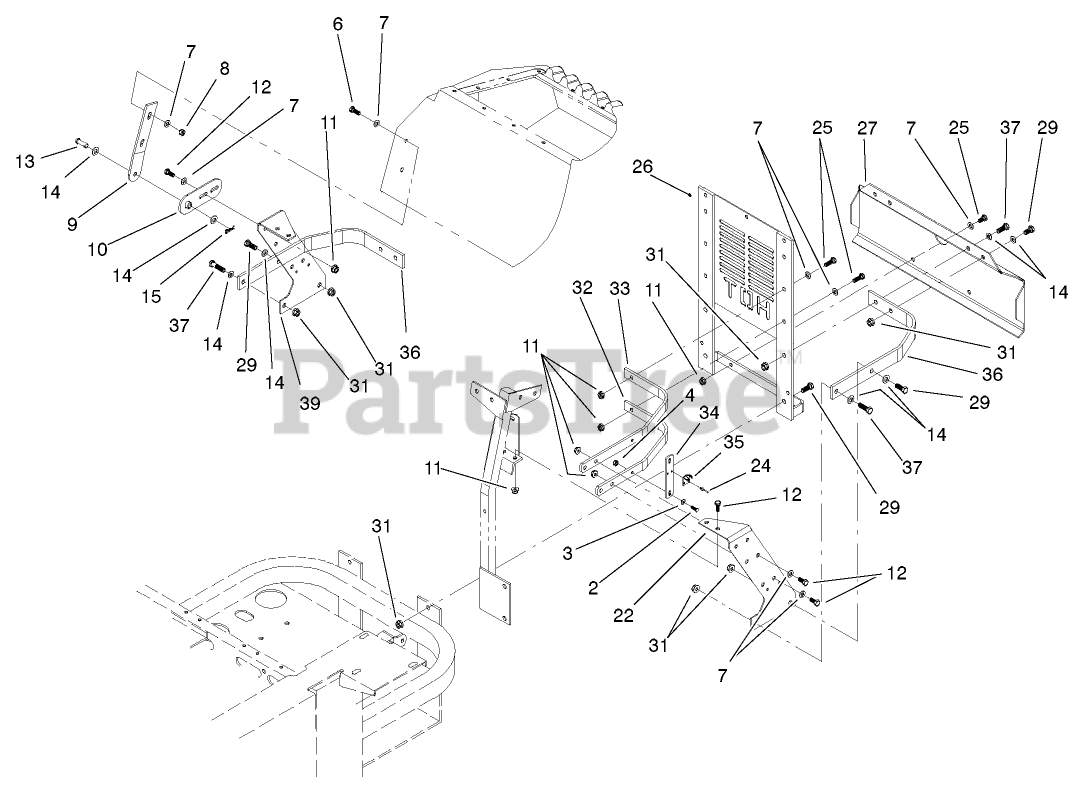

REAR BUMPER ASSEMBLY Parts Diagram

  • Title

2

Toro 1-803069

SCREW
(Superseded to 1-803075)

$1.49

$

In Stock, Qty 6

0

3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 19

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 1-633885-03

PLATE-HINGE, HOOD

$29.99

$

Usually ships in 3-6 days

0

10

Toro 1-632986-03

SHACKLE-HINGE

$53.99

$

Usually ships in 3-6 days

0

11

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 1-808285

PIN-CLEVIS

$3.49

$

In Stock, Qty 5

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

22

Toro 103-0896-03

PLATE-SIDE, LH

$

$

Not available

24

Toro 923786

RIVET

$0.99

$

Usually ships in 3-6 days

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 1-632873-03

MOUNT-RADIATOR, REAR

$

$

Not available

27

Toro 1-633886-03

GUARD-BUMPER

$

$

Not available

29

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

31

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Toro 1-633897-03

RIB-TOP

$

$

Not available

33

Toro 1-633898-03

RIB-BOTTOM

$

$

Not available

34

Toro 1-633877-03

BAR-HOOK, LATCH

$

$

Not available

35

Toro 1-643189

KEEPER-LATCH, RUBBER
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

36

Toro 1-633896-03

BAR-RADIATOR MOUNT FRAME

$

$

Not available

37

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

39

Toro 103-0897-03

PLATE-SIDE, RH

$

$

Not available
