74218 (Z 256) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) GROUP 2-CRANKCASE (CH26S 78511 KOHLER) Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

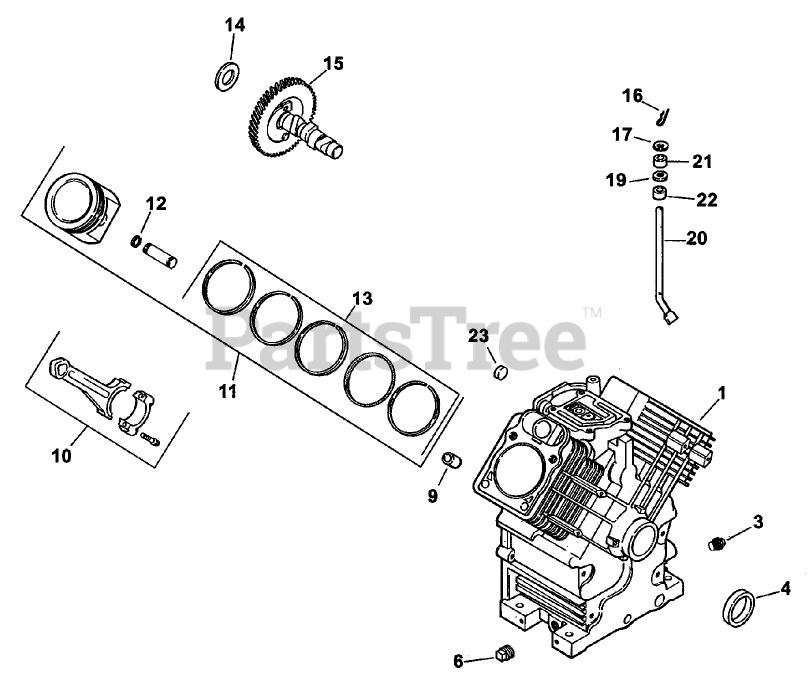

GROUP 2-CRANKCASE (CH26S 78511 KOHLER) Parts Diagram

  • Title

1

Kohler 24 782 10

Crankcase
(Superseded to 24 782 17)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler X-75-10-S

Plug, Sq. Hd.
(Superseded to 25 139 57-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 14

0

4

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, Qty 20+

0

6

Kohler X-75-23-S

Plug
(Superseded to 25 139 60-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, only 3 left!

0

9

Kohler 12 380 17-S

Pin, dowel locating
(Superseded to 24 380 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

10

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, Qty 17

0

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, only 1 left!

0

11

Kohler 24 874 06-S

Piston w/Ring Set (Std.)
(Superseded to 25 874 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$269.99

$

In Stock, only 3 left!

0

12

Kohler 24 018 01-S

RETAINER-PIN, PISTON

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

13

Kohler 24 108 04-S

Set-Ring (STD and .08)
(Superseded to 24 108 14-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 1 left!

0

15

Kohler 24 012 10-S

Camshaft Kit
(Superseded to 24 012 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$138.99

$

In Stock, only 1 left!

0

16

Kohler 12 380 04-S

Pin-Hitch

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

17

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

19

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

20

Kohler 24 144 10-S

Shaft, Governor Cross

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

21

Kohler 52 030 04-S

Bearing, Needle-Upper

Note: Call PartsTree Customer Service for more information on Kohler Parts

$88.99

$

Usually ships in 2-5 days

0

22

Kohler 52 030 03-S

Bearing, Needle-Lower

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

23

Kohler 52 139 09-S

PLUG-CUP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 8

0
