74219 (Z 256) - Toro 72" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 200000001 - 200999999) (2000) DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

72" Z Master Zero-Turn Mower, Side-Discharge Deck

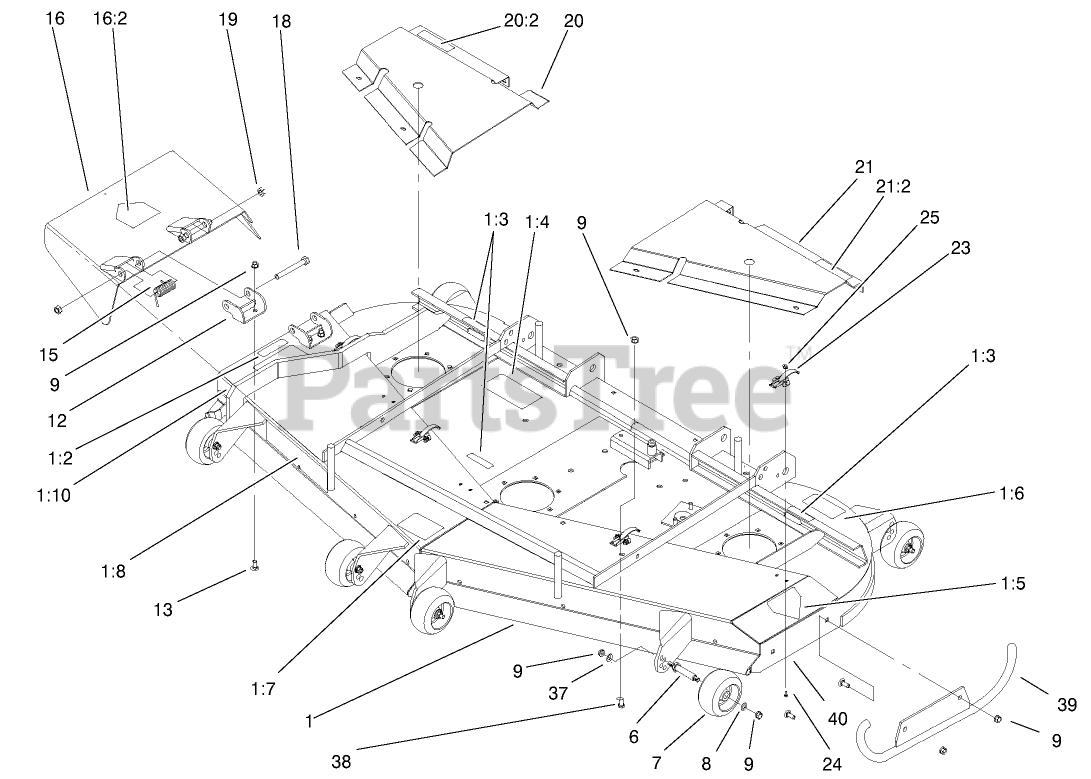

DECK, DEFLECTOR AND ROLLER ASSEMBLY Parts Diagram

  • Title

1

Toro 100-4273

OBS DECK ASM W/DECALS
(Superseded to 105-1698)

$

$

Not available

1:2

Toro 66-6380

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

1:3

Toro 98-5954

DECAL-COVER, MISSING

$9.99

$

In Stock, only 1 left!

0

1:4

Toro 99-4686

DECAL-ROUTING, BELT

$20.99

$

Usually ships in 3-6 days

0

1:5

Toro 43-8480

DECAL-DANGER

$7.49

$

In Stock, only 3 left!

0

1:6

Toro 93-7818

DECAL-TORQUE, BLADE BOLT

$13.99

$

Usually ships in 3-6 days

0

1:7

Toro 98-3798

DECAL-WHEEL, GAGE

$19.99

$

Usually ships in 3-6 days

0

1:8

Toro 98-5995

DECAL-DECK

$

$

Not available

1:10

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$11.99

$

In Stock, Qty 6

0

6

Toro 99-2842

SPACER
(Superseded to 126-2928)

$41.99

$

In Stock, Qty 16

0

7

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$25.99

$

In Stock, Qty 20+

0

8

Toro E373034

Washer
(Superseded to 1-373034)

$3.99

$

In Stock, Qty 20+

0

9

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 51-1530-01

HINGE BRACKET ASM

$39.99

$

Usually ships in 3-6 days

0

13

Toro 3231-27

SCREW-CARR

$4.99

$

In Stock, Qty 5

0

15

Toro 51-1550

SPRING

$12.99

$

In Stock, only 2 left!

0

16

Toro 14-0909

DEFLECTOR ASM

$384.99

$

Usually ships in 3-6 days

0

16:2

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

18

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 7

0

19

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 9

0

20

Toro 99-2622

RH COVER W/DECAL ASM

$

$

Not available

20:2

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

21

Toro 99-2623

LH COVER W/DECAL ASM

$

$

Not available

21:2

Toro 67-5360

DECAL-DANGER

$17.99

$

In Stock, only 1 left!

0

23

Toro 249-21

CLAMP-SLOTTED

$21.99

$

In Stock, only 3 left!

0

24

Toro 3290-321

SCREW-HWH

$4.99

$

Usually ships in 3-6 days

0

25

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 11

0

37

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

38

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 14

0

39

Toro 98-7923-01

SKID

$

$

Not available

40

Toro 3231-22

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0
