74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210002100) (2001) HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

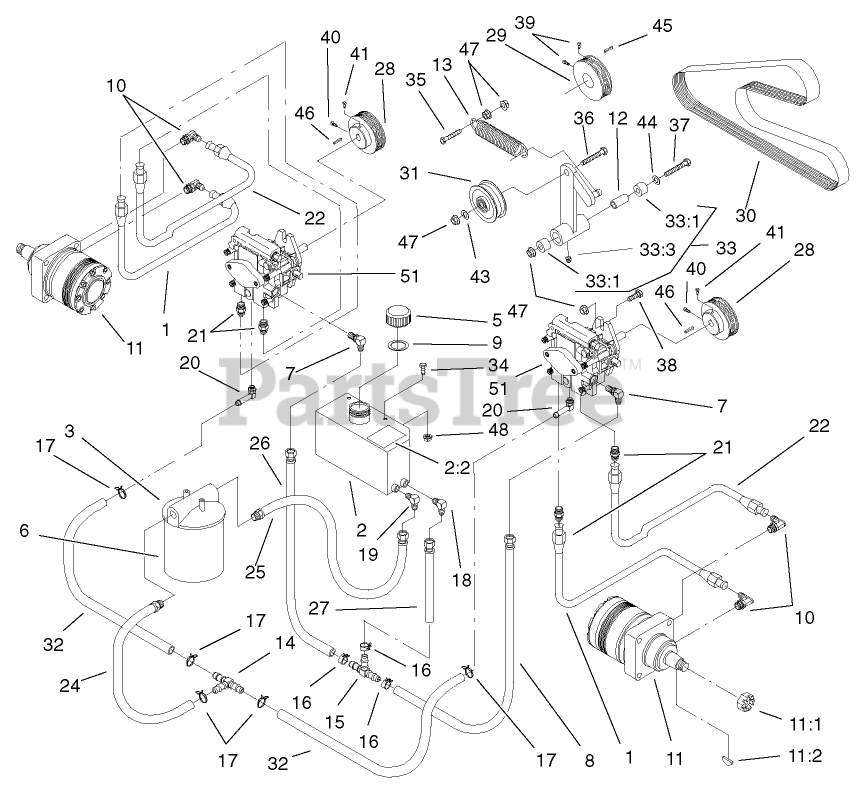

HYDRAULIC SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Toro 1-633774

HOSE-UPPER

$92.99

$

Usually ships in 3-6 days

0

2

Toro 99-4625

HYDRAULIC TANK ASM

$

$

Not available

2:2

Toro 1-523552

DECAL-TANK, HYD

$2.49

$

In Stock, Qty 14

0

3

Toro 1-513006

FILTER-HEAD

$

$

Not available

5

Toro 1-513167

CAP

$30.99

$

In Stock, only 2 left!

0

6

Toro 1-633750

FILTER-OIL, HYD

$27.99

$

In Stock, only 2 left!

0

6

Toro 1-633752

FILTER-OIL, HYD (WINTER)

$36.99

$

In Stock, only 3 left!

0

7

Toro 1-513840

FITTING-90 DEG

$29.99

$

In Stock, only 1 left!

0

8

Toro 1-522217

LOW PRESSURE HOSE ASM

$44.99

$

Usually ships in 3-6 days

0

9

Toro 1-523103

GASKET-CAP, TANK

$7.99

$

In Stock, only 2 left!

0

10

Toro 1-633786

FITTING-90 DEG

$

$

Not available

11

Toro 1-523328

MOTOR-WHEEL

$1377.99

$

Usually ships in 3-6 days

0

11:1

Toro 1-809036

NUT-HH

$39.99

$

In Stock, only 1 left!

0

11:2

Toro 1-807020

KEY-WOODRUFF
(Superseded to 3257-42)

$6.99

$

In Stock, Qty 14

0

11:99

Toro 1-000099

SEAL KIT
(Superseded to 103-6994)

Note: Not illustrated

$386.99

$

Usually ships in 3-6 days

0

11:99

Toro 1-000139

BEARING KIT

Note: Not illustrated

$

$

Not available

12

Toro 1-603384

BUSHING-PIVOT, IDLER

$14.99

$

In Stock, only 1 left!

0

13

Toro 1-603413

SPRING-EXTENSION

$26.99

$

In Stock, only 2 left!

0

14

Toro 1-603721

FITTING-TEE, HOSE

$

$

Not available

15

Toro 1-603722

FITTING-TEE, HOSE

$27.99

$

Usually ships in 3-6 days

0

16

Toro 1-603826

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

17

Toro 1-603827

CLAMP-HOSE

$2.99

$

In Stock, only 4 left!

0

18

Toro 1-603987

FITTING-ELBOW

$23.99

$

Usually ships in 3-6 days

0

19

Toro 1-603988

FITTING-ELBOW

$

$

Not available

20

Toro 1-603989

FITTING

$41.99

$

Usually ships in 3-6 days

0

21

Toro 1-603990

FITTING-STRAIGHT

$19.99

$

In Stock, Qty 7

0

22

Toro 1-633775

HOSE-LOWER

$92.99

$

In Stock, only 1 left!

0

24

Toro 1-632281

HOSE ASM

$90.99

$

Usually ships in 3-6 days

0

25

Toro 1-632282

HOSE ASM

$76.99

$

Usually ships in 3-6 days

0

26

Toro 1-632285

HOSE ASM

$49.99

$

In Stock, only 3 left!

0

27

Toro 1-632286

HOSE ASM

$31.99

$

In Stock, only 3 left!

0

28

Toro 1-633568

SHEAVE

$101.99

$

In Stock, only 2 left!

0

29

Toro 1-633567

SHEAVE

$119.99

$

In Stock, only 2 left!

0

30

Toro 1-633749

BELT-DRIVE, PUMP

$43.99

$

In Stock, only 2 left!

0

31

Toro 1-633167

SHEAVE-IDLER

$45.99

$

In Stock, Qty 20+

0

32

Toro 1-633335

HOSE-PRESSURE, LOW

$96.99

$

In Stock, only 1 left!

0

33

Toro 1-634277

BEARING ARM ASM

$183.99

$

In Stock, only 1 left!

0

33:1

Toro 1-513034

SLEEVE-BEARING

$7.99

$

In Stock, Qty 17

0

33:3

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 5

0

34

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

35

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

38

Toro 323-7

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

39

Toro 1-803022

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

40

Toro 3242-6

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

41

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, Qty 12

0

43

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

44

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

45

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, only 2 left!

0

46

Toro 1-807272

KEY

$6.49

$

In Stock, Qty 7

0

47

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

48

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 11

0

51

Toro 1-603841

PUMP-HYDRAULIC
(Superseded to 103-2766)

$1609.99

$

Usually ships in 3-6 days

0

51

Toro 80-6130

SEAL KIT

Note: Not illustrated

$103.99

$

In Stock, only 2 left!

0
