74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) IGNITION/ELECTRICAL ASSEMBLY - GROUP 5 KOHLER CH23S-76550 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

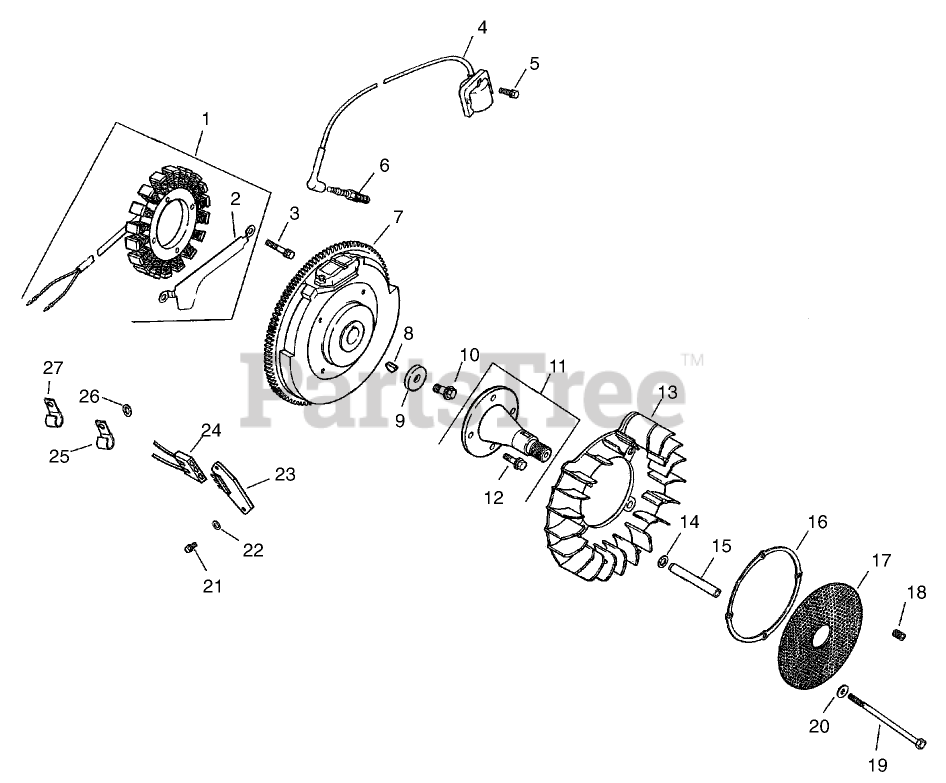

IGNITION/ELECTRICAL ASSEMBLY - GROUP 5 KOHLER CH23S-76550 Parts Diagram

  • Title

1

Kohler 54 755 09-S

Stator Kit
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 12

0

2

Kohler 24 126 71-S

Bracket-Wire, Stator
(Superseded to 24 126 139-S)

$19.99

$

Usually ships in 2-5 days

0

3

Kohler M-548025-S

SCREW-THREAD FORMING (M5X0.8X25)
(Superseded to 25 086 402-S)

$2.99

$

In Stock, only 2 left!

0

4

Kohler 24 584 01-S

Module-Ignition
(Superseded to 24 584 45-S)

$93.99

$

Usually ships in 2-5 days

0

5

Kohler M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)
(Superseded to 25 086 473-S)

$2.99

$

In Stock, Qty 20+

0

6

Kohler 12 132 06-S

Spark Plug
(Superseded to 25 132 12-S)

$20.99

$

Usually ships in 2-5 days

0

7

Kohler 24 025 01-S

Flywheel
(Superseded to 24 025 55-S)

$310.99

$

Usually ships in 2-5 days

0

8

Kohler X-42-15-S

KEY (3/16 X 5/8)

$2.99

$

In Stock, Qty 20+

0

9

Kohler 12 468 03-S

WASHER-FLAT (13/32)
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

10

Kohler 12 086 14-S

SCREW-FLANGE (M10X1.5X45)
(Superseded to 25 086 361-S)

$4.49

$

Usually ships in 2-5 days

0

11

Kohler 24 755 08-S

Front Drive Shaft Kit

$174.99

$

Usually ships in 2-5 days

0

12

Kohler M-839025-S

Screw-HF (M8x1.25x25)

$2.99

$

In Stock, only 1 left!

0

13

Kohler 24 157 03-S

Fan
(Superseded to 24 755 253-S)

$50.99

$

In Stock, only 2 left!

0

14

Kohler 24 468 11-S

Washer-Spring (10MM)

$2.49

$

In Stock, Qty 12

0

15

Kohler 24 112 14-S

Spacer

$23.99

$

In Stock, Qty 7

0

16

Kohler 24 141 06-S

Ring-Support
(Superseded to 25 141 08-S)

$6.99

$

In Stock, only 2 left!

0

17

Kohler 24 162 22-S

Screen-Grass
(Superseded to 24 162 38-S)

$24.99

$

Usually ships in 2-5 days

0

18

Kohler 25 086 43-S

Screw-Set (10-24X.25)

$2.49

$

Usually ships in 2-5 days

0

19

Kohler M-603100-S

Screw-HH (M6x1.0x100)

$4.49

$

In Stock, Qty 12

0

20

Kohler X-25-53-S

WASHER-FLAT (1/4)

$3.49

$

In Stock, Qty 7

0

21

Kohler 24 086 18-S

SCREW-PHL HD (11-16X.88)

$

$

Not available

22

Kohler X-25-92-S

WASHER-FLAT (.188)

$2.99

$

In Stock, only 2 left!

0

23

Kohler 25 403 03-S

Rectifier-Regulator, 15 amp
(Superseded to 41 403 09-S)

$126.99

$

Usually ships in 2-5 days

0

24

Kohler 236602-S

Connector (3 contact)
(Superseded to 25 155 41-S)

$31.99

$

In Stock, only 2 left!

0

25

Kohler 235173-S

CLIP-CABLE

$11.99

$

Usually ships in 2-5 days

0

26

Kohler X-25-63-S

WASHER-FLAT (1/4)

$2.49

$

In Stock, only 2 left!

0

27

Kohler 48 154 02-S

Clip-Cable

$16.99

$

Usually ships in 2-5 days

0

Kohler X-22-11-S

Washer-Lock, Internal Tooth (1/4)

$2.49

$

In Stock, only 3 left!

0

Kohler 24 176 07-S

Harness, wiring
(Superseded to 24 176 109-S)

$46.99

$

Usually ships in 2-5 days

0

Kohler 24 518 12-S

Lead-Black

$5.99

$

In Stock, only 2 left!

0

Kohler 25 454 03-S

TIE-WIRE

$2.49

$

Usually ships in 2-5 days

0
