74225 (Z 253) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) OIL PAN/LUBRICATION ASSEMBLY - GROUP 3 KOHLER CH23S-76550 Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

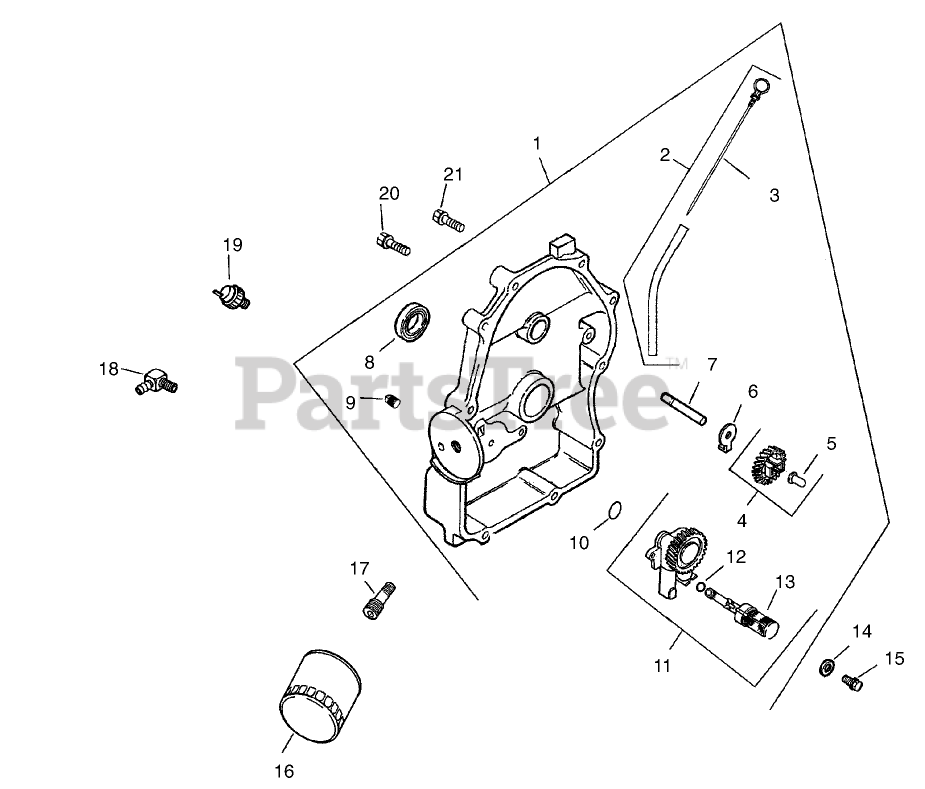

OIL PAN/LUBRICATION ASSEMBLY - GROUP 3 KOHLER CH23S-76550 Parts Diagram

  • Title

1

Kohler 24 009 83-S

Closure Plate ASM
(Superseded to 24 009 238-S)

$406.99

$

Usually ships in 2-5 days

0

2

Kohler 24 755 121-S

DIPSTICK AND DIPSTICK TUBE ASM

$45.99

$

In Stock, only 2 left!

0

3

Kohler 24 038 10-S

Dipstick

$12.99

$

In Stock, only 4 left!

0

4

Kohler 24 043 12-S

GOVERNOR GEAR W/PIN KIT

$76.99

$

Usually ships in 2-5 days

0

5

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

$3.49

$

In Stock, Qty 9

0

6

Kohler 52 448 02-S

Tab-Locking
(Superseded to 24 448 01-S)

$2.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

$5.99

$

In Stock, only 2 left!

0

8

Kohler 52 032 08-S

SEAL-OIL (P-T-O END)
(Superseded to 25 032 06-S)

$13.99

$

In Stock, only 4 left!

0

9

Kohler 25 139 60-S

PLUG-PIPE, COUNTERSUNK (1/8)

$3.49

$

In Stock, only 2 left!

0

10

Kohler 24 153 08-S

O-Ring

$8.99

$

In Stock, Qty 7

0

11

Kohler 24 393 10-S

Oil Pump ASM
(Superseded to 24 393 37-S)

$

$

Not available

12

Kohler 24 153 01-S

O-RING

$2.99

$

In Stock, Qty 13

0

13

Kohler 24 381 04-S

TUBE-PICK UP, OIL

$34.99

$

In Stock, only 2 left!

0

14

Kohler M-631005-S

WASHER-FLAT (6 MM)

$2.49

$

In Stock, only 2 left!

0

15

Kohler M-645025-S

SCREW-FLANGE, THREAD FORMING (M6X1.0X25)
(Superseded to 25 086 395-S)

$3.49

$

In Stock, Qty 14

0

16

Kohler 52 050 02-S

Filter-Oil
(Superseded to 52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

17

Kohler 24 136 01-S

Nipple-Filter, Oil
(Superseded to 24 136 09-S)

$5.99

$

In Stock, only 2 left!

0

18

Kohler 25 155 02-S

Connector-Hose, 90 Deg

$14.99

$

In Stock, only 3 left!

0

19

Kohler 24 099 03-S

SWITCH-PRESSURE, OIL
(Superseded to 24 755 425-S)

$29.99

$

In Stock, only 1 left!

0

20

Kohler 24 086 16-S

Screw-HF (M8x1.25x45)
(Superseded to 24 086 17-S)

$3.49

$

In Stock, Qty 20+

0

21

Kohler 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

$3.49

$

In Stock, Qty 20+

0
