74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) CRANKCASE ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

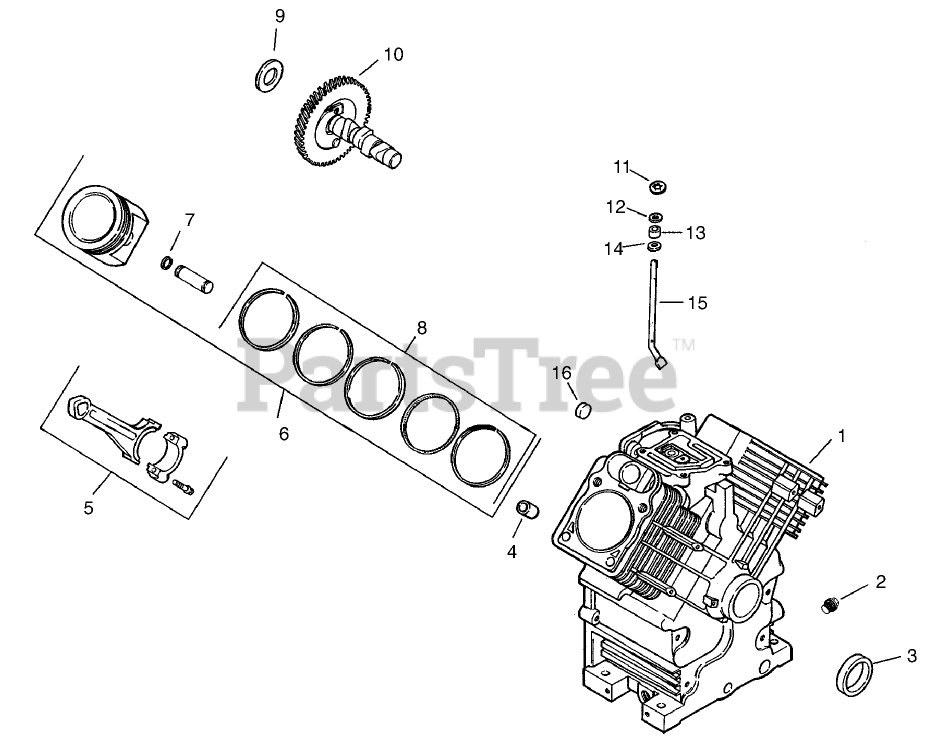

CRANKCASE ASSEMBLY Parts Diagram

  • Title

2

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

$2.49

$

In Stock, Qty 12

0

3

Kohler 24 032 01-S

SEAL-OIL
(Superseded to 24 032 19-S)

$9.49

$

In Stock, Qty 20+

0

4

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

$4.49

$

Usually ships in 2-5 days

0

5

Kohler 24 067 13-S

Rod-Connecting (Standard)
(Superseded to 25 067 04-S)

$75.99

$

In Stock, Qty 19

0

Kohler 24 067 14-S

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

$75.99

$

In Stock, only 1 left!

0

7

Kohler 24 018 01-S

RETAINER-PIN, PISTON

$3.49

$

In Stock, Qty 14

0

9

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

$4.49

$

In Stock, only 2 left!

0

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

$2.49

$

In Stock, only 2 left!

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

$2.49

$

In Stock, Qty 11

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

$2.99

$

Usually ships in 2-5 days

0

10

Kohler 24 012 10-S

Camshaft Kit
(Superseded to 24 012 23-S)

$138.99

$

Usually ships in 2-5 days

0

11

Kohler 24 018 09-S

RETAINER-RING

$2.49

$

In Stock, Qty 19

0

12

Kohler M-931010-S

WASHER-FLAT (9MM)

$2.49

$

In Stock, Qty 5

0

13

Kohler 28 032 09-S

SEAL-CROSS SHAFT, GOVERNOR

$4.49

$

In Stock, only 1 left!

0

14

Kohler 24 468 15-S

WASHER-FLAT (11/32)

$2.49

$

In Stock, only 1 left!

0

15

Kohler 24 144 33-S

Shaft-Cross, Governor
(Superseded to 24 144 39-S)

$52.99

$

Usually ships in 2-5 days

0

16

Kohler 52 139 09-S

PLUG-CUP

$4.99

$

In Stock, Qty 7

0
