74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210002101 - 210999999) (2001) FUEL SYSTEM ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

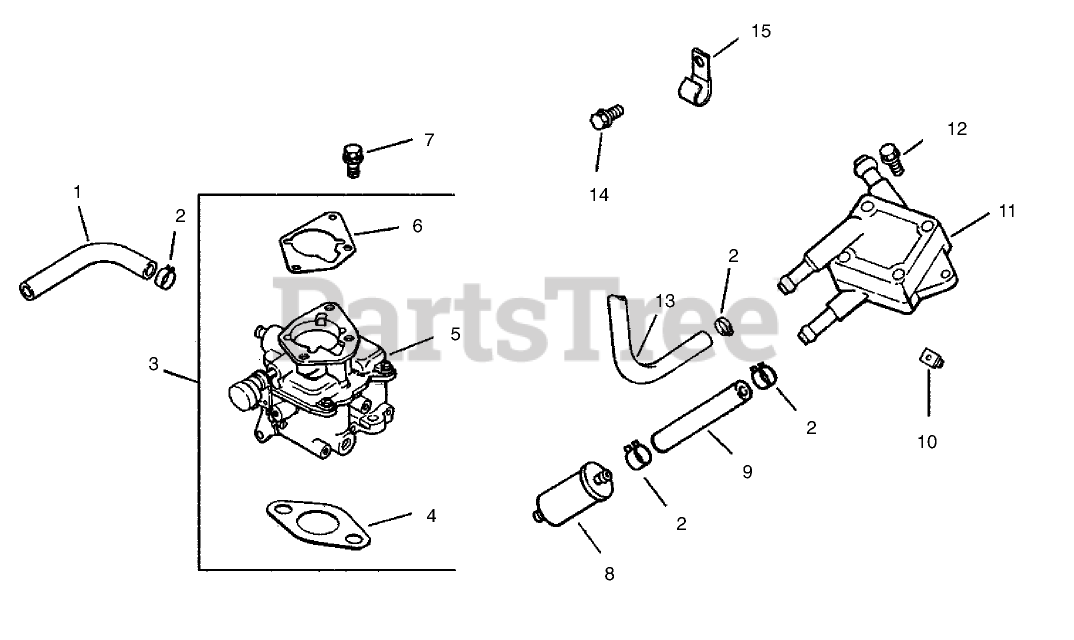

FUEL SYSTEM ASSEMBLY Parts Diagram

  • Title

1

Kohler 25 353 32-S

Line-Fuel (9.5)
(Superseded to 25 111 81-S)

$17.99

$

In Stock, Qty 15

0

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)
(Superseded to 25 237 31-S)

$5.99

$

In Stock, Qty 12

0

4

Kohler 24 041 17-S

Gasket-Carburetor

$9.49

$

In Stock, only 3 left!

0

6

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

$2.99

$

In Stock, Qty 20+

0

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 24 050 02-S

Filter-Fuel
(Superseded to 24 050 13-S)

$12.99

$

In Stock, Qty 20+

0

10

Kohler 24 100 01-S

Nut-Plastic
(Superseded to 25 100 37-S)

$2.49

$

In Stock, only 4 left!

0

11

Kohler 24 393 16-S

PUMP-FUEL

$32.99

$

In Stock, Qty 20+

0

12

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

$8.99

$

In Stock, only 4 left!

0

14

Kohler M-650012-S

Screw-HF (M6x1.0x12)

$3.49

$

In Stock, Qty 7

0

15

Kohler 47 154 01-S

CLIP-CABLE

$5.49

$

In Stock, only 2 left!

0

Kohler 24 757 01-S

SOLENOID REPAIR KIT

$281.99

$

In Stock, only 2 left!

0

Kohler 24 757 02-S

FLOAT REPAIR KIT

$166.99

$

Usually ships in 2-5 days

0

Kohler 24 757 03-S

CARBURETOR REPAIR KIT

$139.99

$

Usually ships in 2-5 days

0

Kohler 24 757 07-S

CHOKE REPAIR KIT

$116.99

$

In Stock, only 2 left!

0

Kohler 24 757 08-S

ACCELERATOR PUMP REPAIR KIT

$102.99

$

In Stock, only 4 left!

0

Kohler 24 757 09-S

ACCELERATOR PUMP SEAL REPAIR KIT

$135.99

$

Usually ships in 2-5 days

0
