Toro 74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CH25S-68695 Parts Lookup with Diagrams

1

Kohler 25 353 32-S

Line-Fuel (9.5)

(Superseded to 25 111 81-S) 

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 9

2

Kohler 25 237 14-S

CLAMP-HOSE, SPRING (1/2)

(Superseded to 25 237 31-S) 

Note: Call PartsTree Customer Service for more information on Kohler Parts

$5.99

$

In Stock, only 2 left!

3

Kohler 24 853 78-S

Kit, carburetor with gasket (Includes 4-6)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$530.99

$

Usually ships in 2-5 days

4

Kohler 24 041 17-S

Gasket-Carburetor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

In Stock, only 3 left!

5

Kohler 24 053 78

Carburetor asm. (For information only not available separately)(Service with: 24 757 01-S, 24 757 02-S,24 757 03-S, 24 757 07-S, 24 757 08-S24 757 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

Not available 

6

Kohler 24 041 06-S

GASKET-BASE, AIR CLEANER

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, Qty 13

7

Kohler M-651030-S

SCREW-FLANGE (M6X1.0X30)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

Not available 

8

Kohler 24 050 02-S

Filter-Fuel

(Superseded to 24 050 13-S) 

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 20+

9

Kohler 25 353 15-S

Line-Fuel (3.5)

(Superseded to 25 111 81-S) 

Note: Call PartsTree Customer Service for more information on Kohler Parts

$17.99

$

In Stock, Qty 9

10

Kohler 24 100 01-S

Nut-Plastic

(Superseded to 25 100 37-S) 

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 4 left!

11

Kohler 24 393 16-S

PUMP-FUEL

Note: Call PartsTree Customer Service for more information on Kohler Parts

$32.99

$

In Stock, Qty 18

12

Kohler 24 086 12-S

SCREW-TAP (M6X1.7X18)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

13

Kohler 24 353 02-S

Line-Fuel, Flexible (15.5)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

In Stock, only 3 left!

14

Kohler M-650012-S

Screw-HF (M6x1.0x12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

ACCELERATOR PUMP SEAL REPAIR KIT

Note: Not illustrated

$125.99

$

Usually ships in 2-5 days

Kohler 24 757 09-S

ACCELERATOR PUMP SEAL REPAIR KIT

Note: Call PartsTree Customer Service for more information on Kohler Parts

$125.99

$

Usually ships in 2-5 days

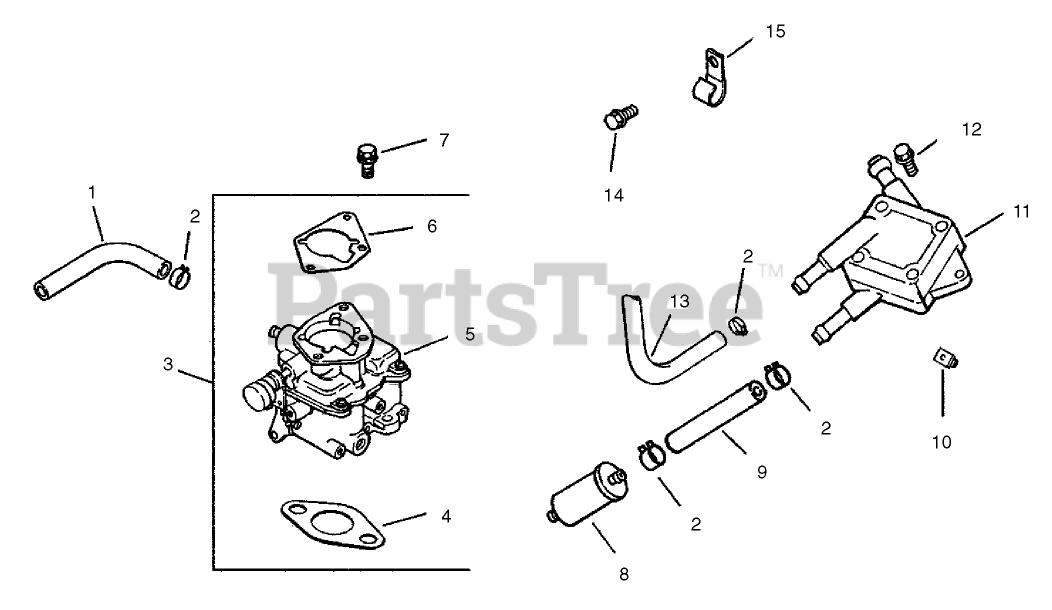

74226 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 220000001 - 220999999) (2002) GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CH25S-68695 Parts Diagram

GROUP 8-FUEL SYSTEM ASSEMBLY KOHLER CH25S-68695 Parts Diagram

Kohler 25 353 32-S

Kohler 25 237 14-S

Kohler 24 853 78-S

Kohler 24 041 17-S

Kohler 24 053 78

Kohler 24 041 06-S

Kohler M-651030-S

Kohler 24 050 02-S

Kohler 25 353 15-S

Kohler 24 100 01-S

Kohler 24 393 16-S

Kohler 24 086 12-S

Kohler 24 353 02-S

Kohler M-650012-S

Kohler 47 154 01-S

Kohler 24 757 01-S

Kohler 24 757 01-S

Kohler 24 757 02-S

Kohler 24 757 02-S

Kohler 24 757 03-S

Kohler 24 757 03-S

Kohler 24 757 07-S

Kohler 24 757 07-S

Kohler 24 757 08-S

Kohler 24 757 08-S

Kohler 24 757 09-S

Kohler 24 757 09-S
