74228 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) CRANKCASE ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

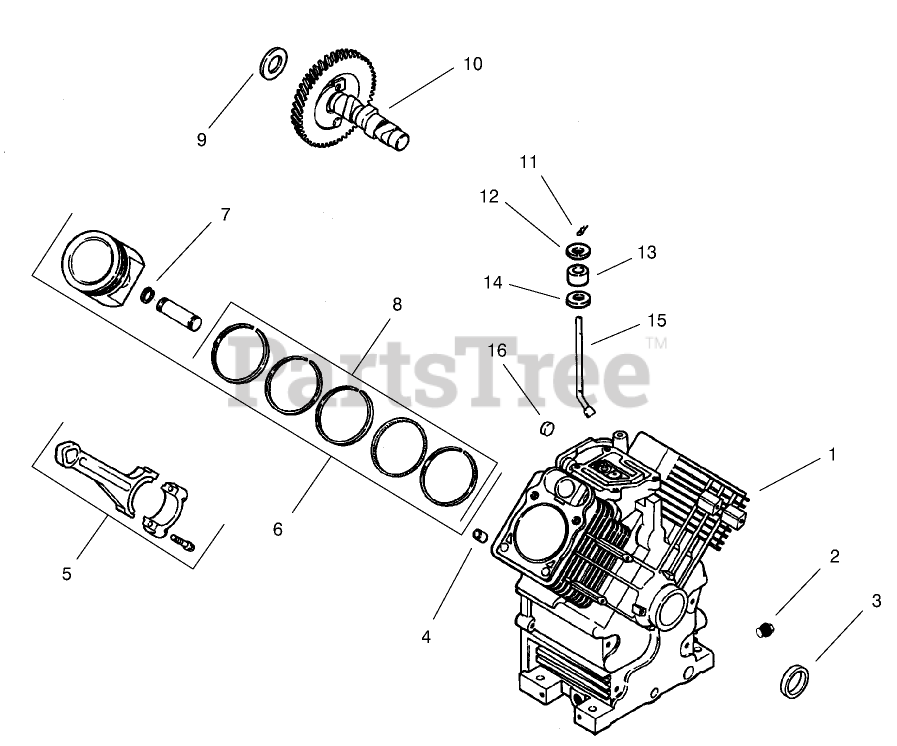

CRANKCASE ASSEMBLY (ENGINE: KOHLER CH25S PS-68606) Parts Diagram

  • Title

1

Kohler 24 561 33

Cylinder Block (Incl. Ref. # 2, 4, 16, 17)
(Superseded to 24 561 33-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$793.99

$

Usually ships in 2-5 days

0

2

Kohler X-75-10

Plug
(Superseded to 25 139 57-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 14

0

3

Kohler 24 032 01

Seal-Oil
(Superseded to 24 032 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$7.49

$

In Stock, Qty 20+

0

4

1238017

Dowel-Locating

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 24 067 13

Rod-Connecting (Standard)
(Superseded to 24 067 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, Qty 17

0

Kohler 24 067 14

Rod-Connecting (.25)
(Superseded to 25 067 05-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$59.99

$

In Stock, only 1 left!

0

6

Kohler 24 874 06

Piston w/Ring Set (Std.)
(Superseded to 24 874 06-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$269.99

$

In Stock, only 3 left!

0

7

Kohler 24 018 01

Retainer-Piston Pin
(Superseded to 24 018 01-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

8

2410804

Ring Set (Std.)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

9

Kohler 12 422 09

Shim-Camshaft
(Superseded to 12 422 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 13

Shim-Camshaft
(Superseded to 12 422 13-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07

Shim-Camshaft
(Superseded to 12 422 07-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

Kohler 12 422 08

Shim-Camshaft
(Superseded to 12 422 08-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 10

Shim-Camshaft
(Superseded to 12 422 10-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11

Shim-Camshaft
(Superseded to 12 422 11-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 12

Shim-Camshaft
(Superseded to 12 422 12-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 1 left!

0

10

Kohler 24 012 10

Camshaft
(Superseded to 24 012 23-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$138.99

$

In Stock, only 1 left!

0

11

1238004

Pin-Hitch

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

12

Kohler M-0631005

Washer
(Superseded to M-631005)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

13

1203201

Seal-Cross Shaft

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

14

Kohler X-25-102

Washer
(Superseded to X-25-102-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

15

2414401

Shaft-Governor Cross

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

16

Kohler 52 139 09

Plug
(Superseded to 52 139 09-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 9

0

Kohler 24 113 56

Decal-Service
(Superseded to 24 113 56-S)

Note: Not illustrated

$

$

Not available

Kohler 24 113 56

Decal-Service
(Superseded to 24 113 56-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
