74228 (Z 255) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 210000001 - 210999999) (2001) STAND ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

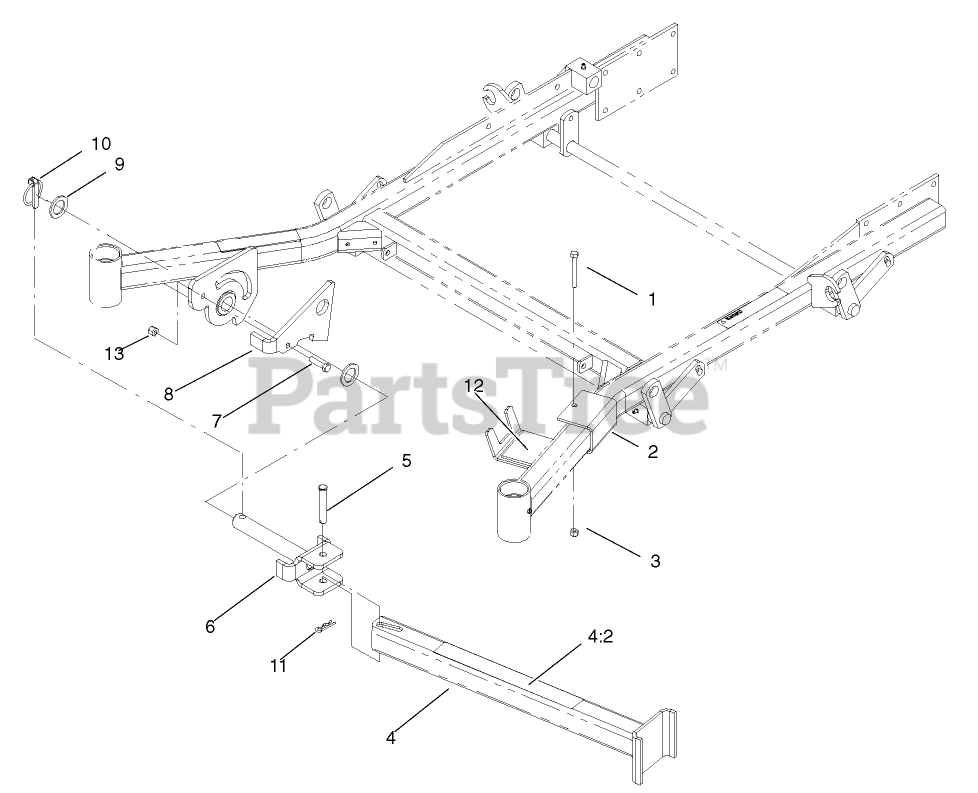

STAND ASSEMBLY Parts Diagram

  • Title

1

Toro 322-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

2

Toro 100-9699-01

BRACKET-CRADLE

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-7804

LEG ASM

$343.99

$

Usually ships in 3-6 days

0

4:2

Toro 104-7758

DECAL-Z STAND

$17.99

$

Usually ships in 3-6 days

0

5

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 3 left!

0

6

Toro 100-9692-01

PIN-PIVOT

$222.99

$

Usually ships in 3-6 days

0

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 100-9686-01

BRACKET-LATCH
(Superseded to 136-1657-01)

$62.99

$

Usually ships in 3-6 days

0

9

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

10

Toro 283-71

PIN-LYNCH

$6.49

$

In Stock, Qty 5

0

11

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, Qty 20+

0

12

Toro 104-7765

CUSHION-RUBBER

$

$

Not available

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
