74230 (Z 257) - Toro 52" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

52" Z Master Zero-Turn Mower, Side-Discharge Deck

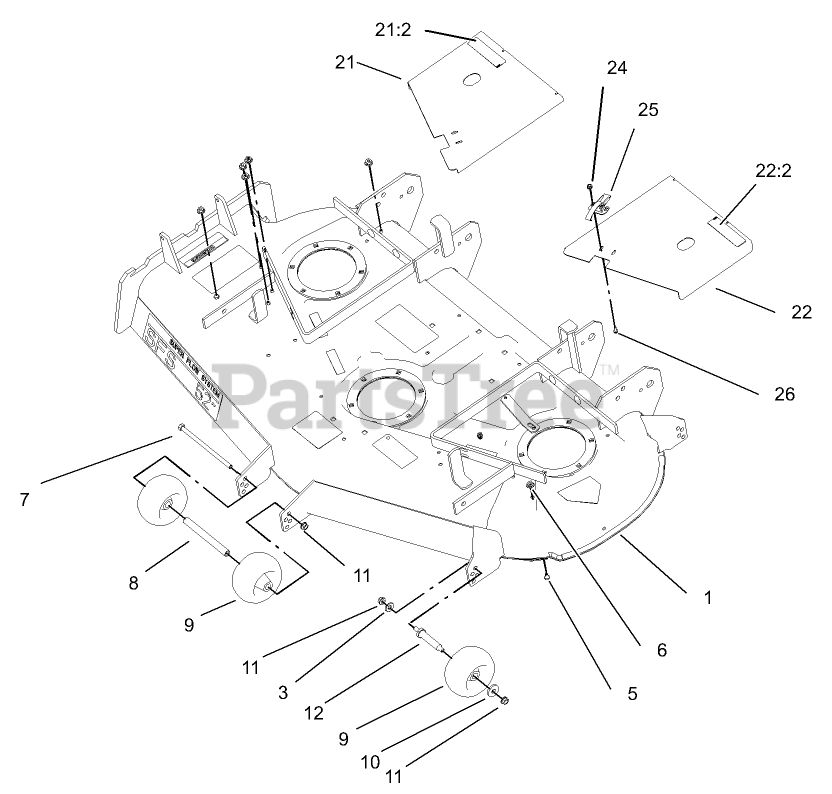

DECK AND WHEEL GAGE ASSEMBLY Parts Diagram

  • Title

1

Toro 106-5879

DECK ASM

$

$

Not available

2

Toro 3230-18

SCREW-CARR

Note: Not illustrated

$5.49

$

In Stock, Qty 11

0

3

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

5

Toro 321-1

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

6

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 323-28

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

8

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

9

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

10

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

21

Toro 98-5963

COVER ASM-RH

$

$

Not available

21:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

22

Toro 98-5965

LH COVER ASM

$

$

Not available

22:2

Toro 67-5360

DECAL-DANGER

$13.99

$

In Stock, only 1 left!

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 20+

0

25

Toro 249-21

CLAMP-SLOTTED

$19.99

$

In Stock, only 2 left!

0

26

Toro 3290-321

SCREW-HWH

$4.49

$

In Stock, only 2 left!

0
