74234 (Z 255) - Toro 62" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 230006001 - 230999999) (2003) Z-STAND ASSEMBLY Parts Diagram

62" Z Master Zero-Turn Mower, Side-Discharge Deck

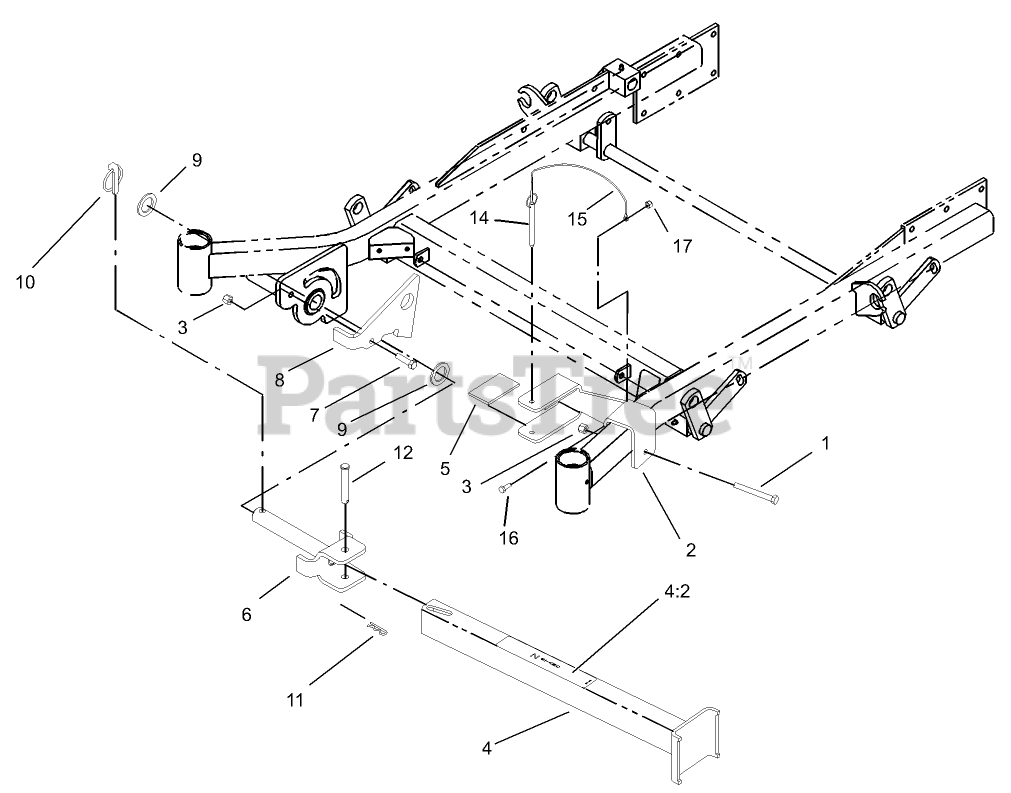

Z-STAND ASSEMBLY Parts Diagram

  • Title

1

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 11

0

2

Toro 100-6542-01

BRACKET-CRADLE

$158.99

$

Usually ships in 3-6 days

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 100-6545

Leg ASM
(Superseded to 107-1874)

$230.99

$

Usually ships in 3-6 days

0

4:2

Toro 104-7758

DECAL-Z STAND

$17.99

$

Usually ships in 3-6 days

0

5

Toro 283-55

PIN-CLEVIS

$12.99

$

In Stock, only 4 left!

0

6

Toro 100-9692-01

PIN-PIVOT

$222.99

$

Usually ships in 3-6 days

0

7

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 100-9686-01

BRACKET-LATCH
(Superseded to 136-1657-01)

$62.99

$

Usually ships in 3-6 days

0

9

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

10

Toro 283-71

PIN-LYNCH

$6.49

$

In Stock, only 4 left!

0

11

Toro 3290-355

PIN-HAIR

$2.99

$

In Stock, only 3 left!

0

12

Toro 100-6547

Cushion-Rubber

$12.99

$

Usually ships in 3-6 days

0

14

Toro 105-1647

PIN-HITCH, COTTERLESS

$21.99

$

Usually ships in 3-6 days

0

15

Toro 100-9385

LANYARD-NYLON

$6.99

$

Usually ships in 3-6 days

0

16

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
