74238 CP (Z 528) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 270000001 - 270999999) (2007) DECK ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

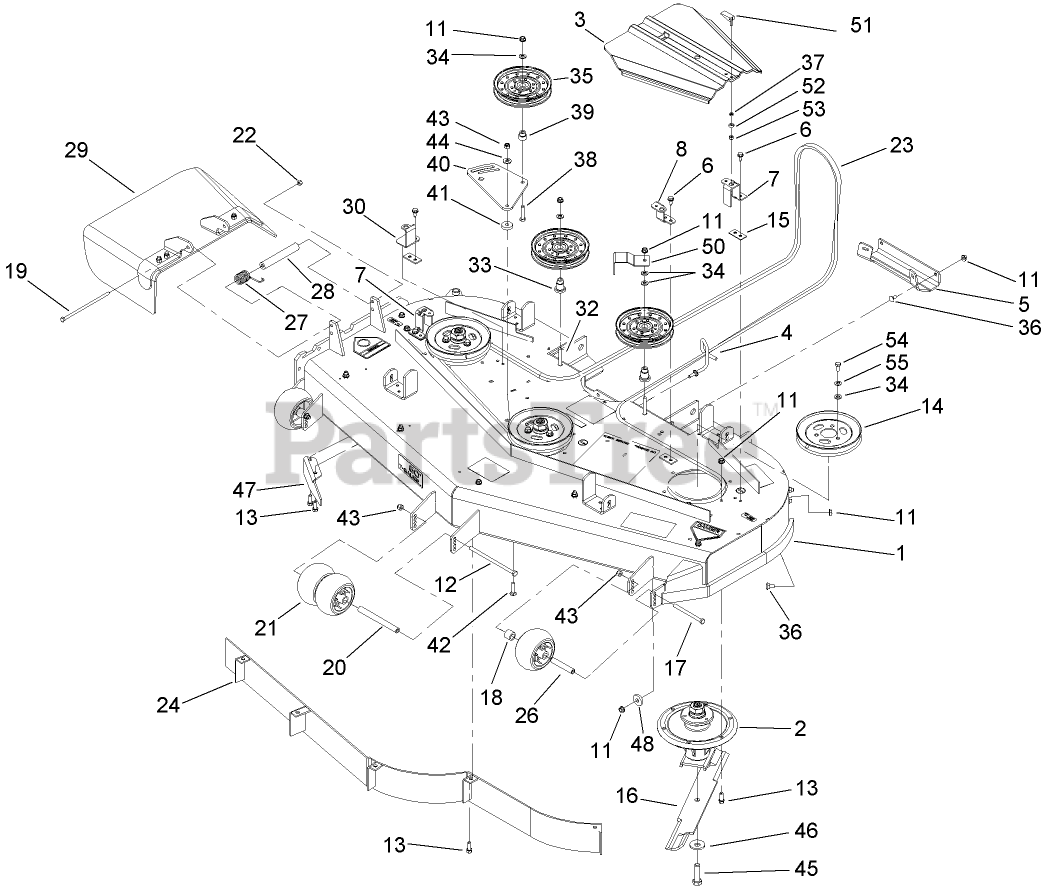

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 110-5561

DECK DECAL ASM

$3370.99

$

Usually ships in 3-6 days

0

2

Toro 112-8698

SPINDLE ASM

$763.99

$

Usually ships in 3-6 days

0

3

Toro 112-8664

COVER-BELT

$39.99

$

In Stock, only 2 left!

0

4

Toro 106-3220

GUIDE-BELT

$32.99

$

In Stock, only 3 left!

0

5

Toro 105-8792-01

Plate-Skid

$82.99

$

Usually ships in 3-6 days

0

6

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

7

Toro 108-4121-01

BRACKET-COVER
(Superseded to 119-4220-01)

$12.99

$

In Stock, Qty 8

0

8

Toro 108-2177-01

BRACKET-COVER, TALL

$31.99

$

In Stock, only 3 left!

0

11

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Toro 323-28

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

13

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

14

Toro 105-7734

Pulley

$49.99

$

In Stock, Qty 19

0

15

Toro 112-8663-01

SPACER-COVER, BELT
(Superseded to 119-4222-01)

$20.99

$

Usually ships in 3-6 days

0

16

Toro 105-7718-03

BLADE-HI FLOW

$26.99

$

In Stock, Qty 20+

0

17

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

18

Toro 98-7913

TUBE-SPACER

$9.49

$

In Stock, Qty 20+

0

19

Toro 322-50

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

20

Toro 98-5967

SPACER-WHEEL

$15.99

$

In Stock, Qty 20+

0

21

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 105-8783

Belt

$182.99

$

In Stock, Qty 18

0

24

Toro 110-5564-01

BAFFLE ASM

$

$

Not available

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 20+

0

27

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, Qty 6

0

28

Toro 105-4622

SPACER

$10.99

$

In Stock, only 4 left!

0

29

Toro 108-7770

RUBBER DEFLECTOR ASM

$221.99

$

In Stock, only 3 left!

0

30

Toro 108-4122-01

BRACKET-COVER
(Superseded to 119-4221-01)

$31.99

$

Usually ships in 3-6 days

0

32

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 18

0

33

Toro 106-3214

MOUNT-PULLEY

$12.99

$

In Stock, Qty 20+

0

34

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

35

Toro 1-633109

Idler-Flat
(Superseded to 132-9424)

$43.99

$

In Stock, Qty 20+

0

36

Toro 3231-1

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

37

Toro 99-3058

WASHER

$3.49

$

In Stock, Qty 20+

0

38

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 1-603496

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

40

Toro 105-7787-01

Plate-Idler

$47.99

$

Usually ships in 3-6 days

0

41

Toro 105-7788

Spacer

$9.99

$

In Stock, only 3 left!

0

42

Toro 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

45

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

46

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

47

Toro 106-3216-01

BAFFLE-DISCHARGE

$23.99

$

Usually ships in 3-6 days

0

48

Toro 112843

WASHER

$3.49

$

In Stock, Qty 19

0

50

Toro 108-7220-01

GUIDE-BELT

$40.99

$

In Stock, only 4 left!

0

51

Toro 106-6777

HANDLE-LATCH, SWELL

$25.99

$

In Stock, Qty 9

0

52

Toro 106-6778

BUSHING-LATCH, SWELL

$1.49

$

In Stock, Qty 20+

0

53

Toro 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

54

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

55

Toro 3290-455

WASHER-BELLEVILLE

$3.99

$

Usually ships in 3-6 days

0
